Carbon Spoke Wheelset

Home WHEELSET Carbon Spoke Wheelset

700C ratchet 36T carbon spoke wheelset SA-CS03

700C ratchet 36T carbon spoke wheelset SA-CS03

26mm/28mm/30mm/36mm wide high-quality carbon fiber rims
30mm/38mm/40mm/45mm/50mm/55mm/60mm depth options available
SA-CS03 carbon spoke Hub with Shimano 11/12s or Sram 12s XDR cassette body
If you require a lighter and better configuration, please contact us for an upgrade
3.5mm or 5.2mm carbon spokes
Finish: 3K/UD/12K matte or glossy/UD paintless (Customized Decal acceptable)
Compatible with 700*25C-45C tires
2 years warranty

Item No :
SA-CS03 Wheel
Payment :
Paypal, Bank Transfer
Product Origin :
China
Color :
UD/3k/12K

Inquiry Now

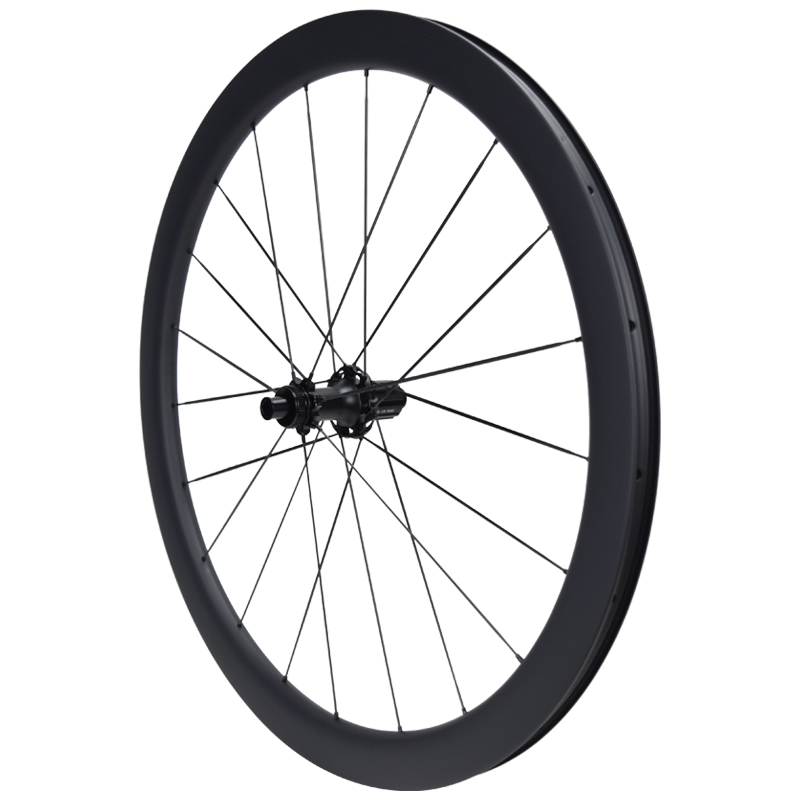

Sakya Carbon 700C ratchet 36T carbon spoke wheelset SA-CS03

Carbon spoke wheelset | High cost-performance ratio | handcrafted wheelset

This is a carbon spoke wheelset built for the ultimate riding experience — its "performance backbone" lies in the carbon spokes: over 30% lighter than traditional metal spokes, yet capable of withstanding greater pedaling tension. There’s "zero power loss" in force transmission the moment you push down; every bit of pedal feel climbs with precise feedback, and sprint 爆发力 hits full throttle instantly.From material to structure, every detail strikes the ultimate balance between "lightness" and "stiffness": ride faster, control more smoothly, and even pick up on subtle road feedback clearly — this isn’t just a wheel set; it’s a riding tool that lets you and your bike move as one.

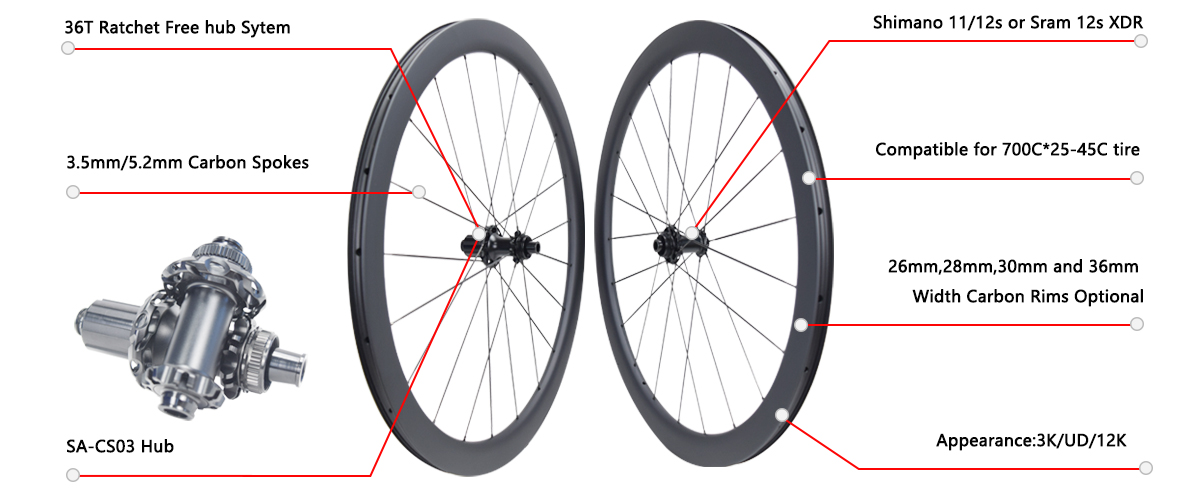

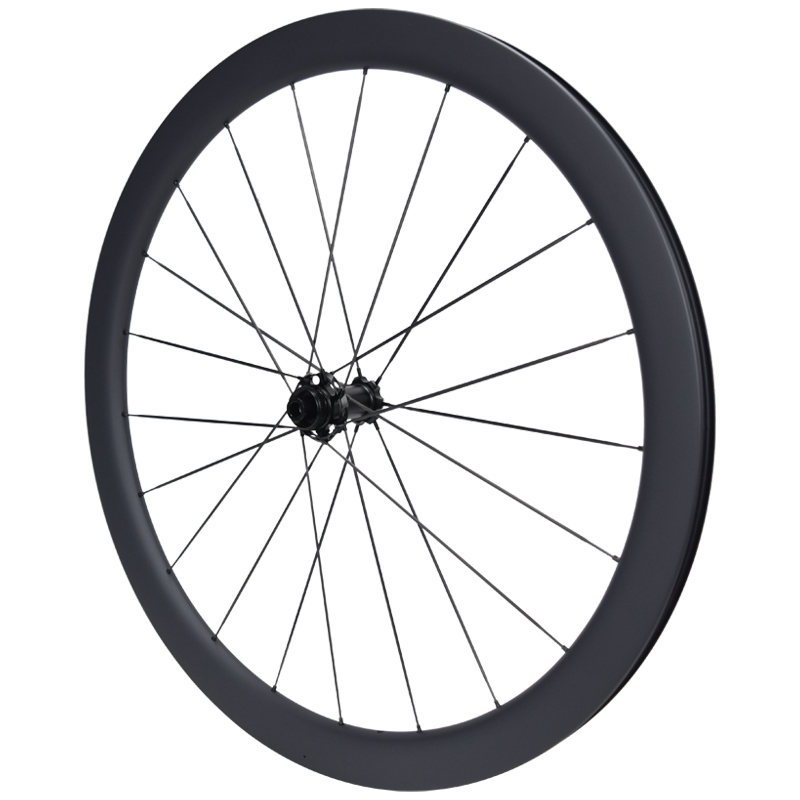

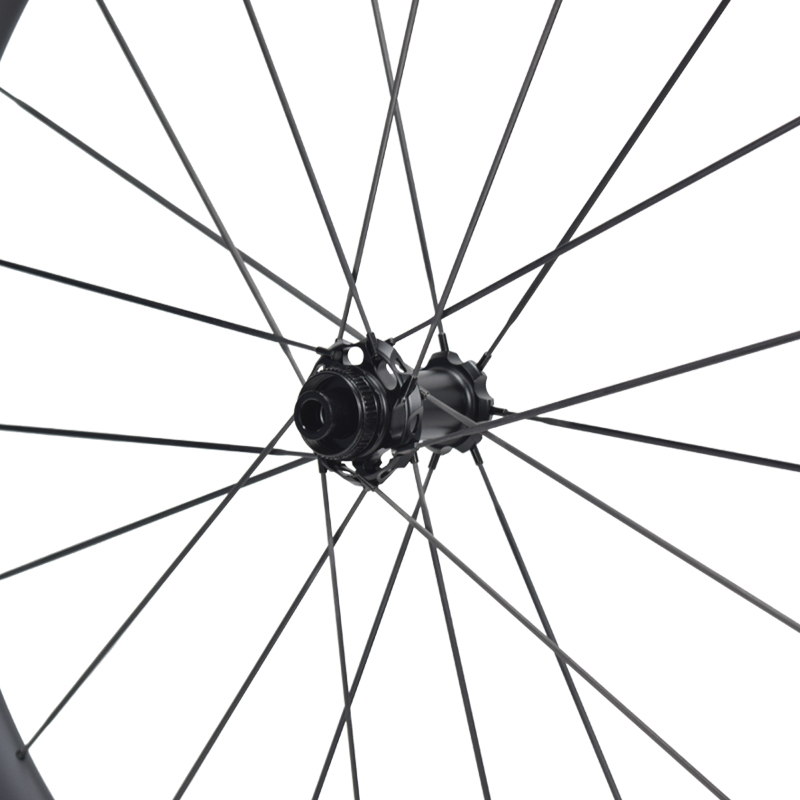

700C ratchet 36T road carbon spoke wheels

Features

Utilizes a 36T ratchet freehub design for more precise and faster pedaling response;
Equipped with SA-CS03 carbon spoke hubs(straight-pull center-lock)
Uses 3.5mm or 5.2mm carbon fiber spokes, balancing lightweight design with strength to enhance overall wheelset rigidity.
Supports mainstream drivetrain systems such as Shimano 11-speed/12-speed and SRAM 12-speed XDR;
Compatible with 700C×25-45C tires, covering various riding scenarios including road and gravel.

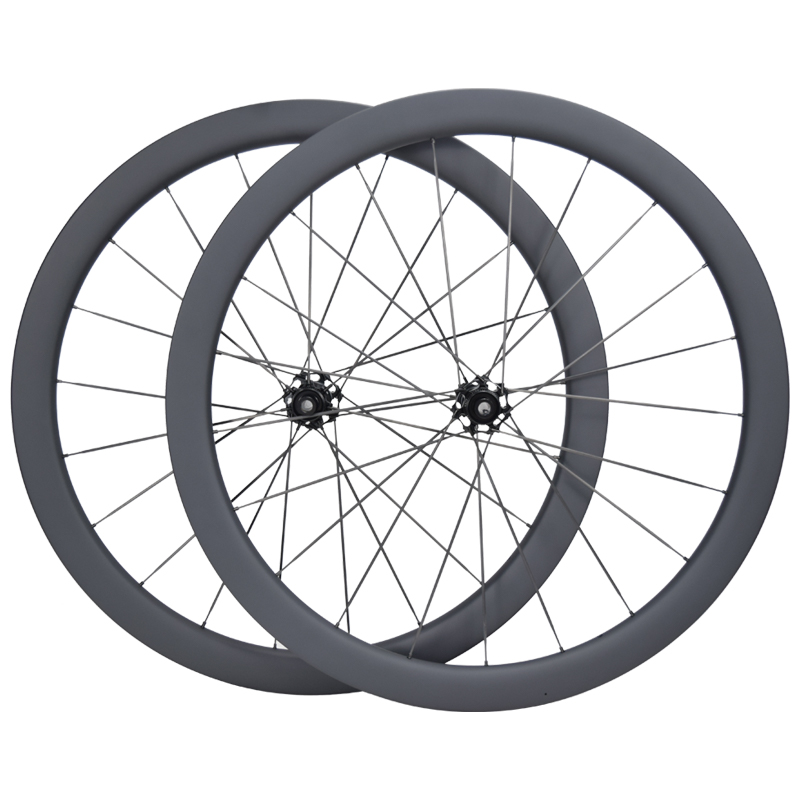

Offers 26mm, 28mm, 30mm, and 36mm wide carbon fiber rims for flexible matching to different riding scenarios (flat roads/gravel).
Available in 3K, UD, and 12K carbon fiber textures to satisfy different aesthetic preferences.

INTRODUCTION

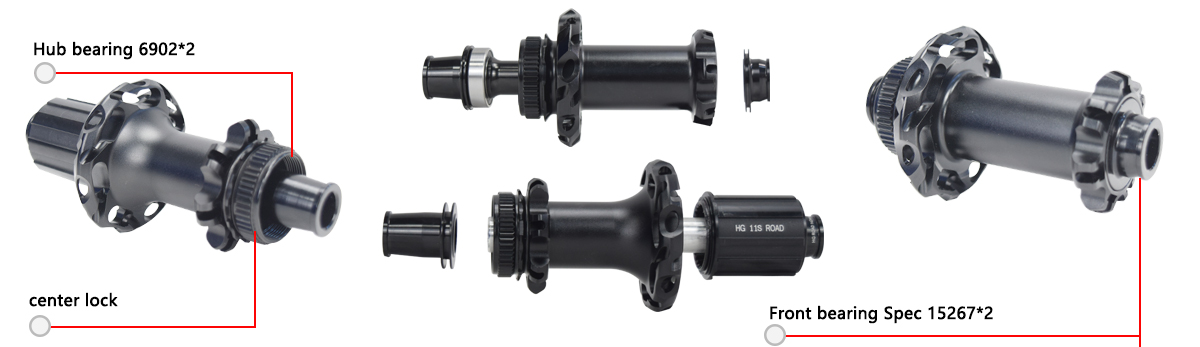

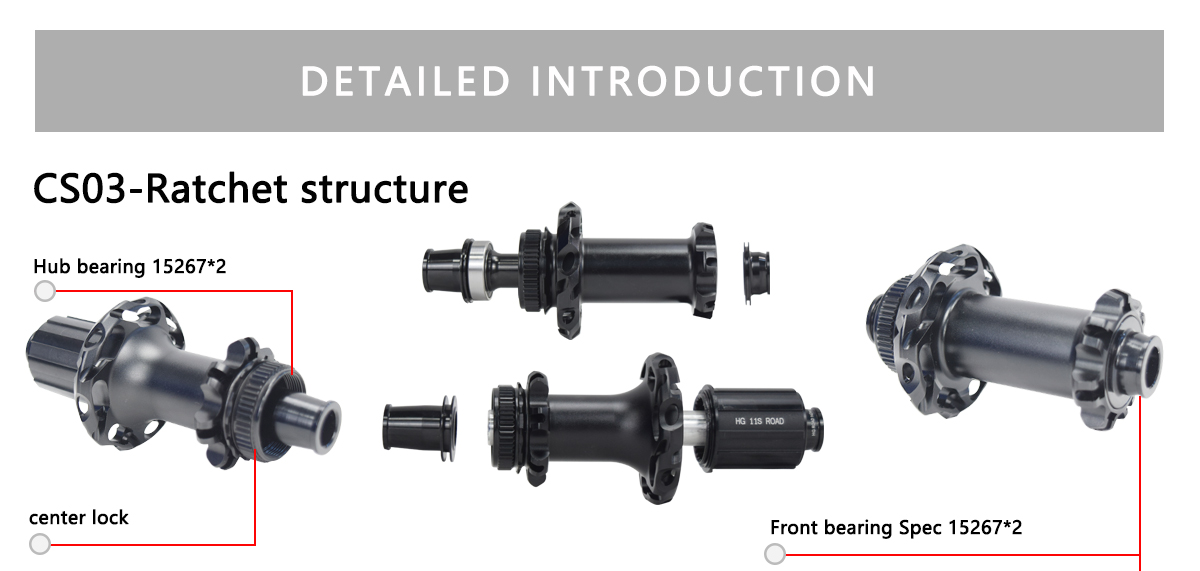

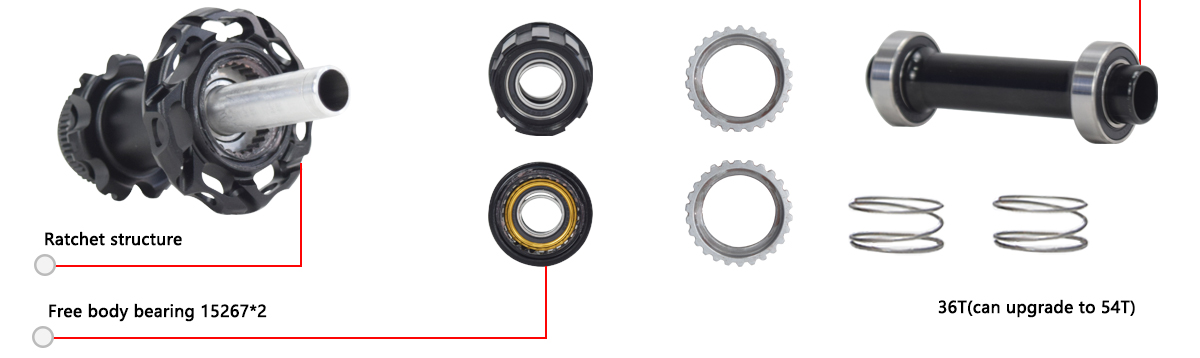

SA-CS03 ratchet 36T structure

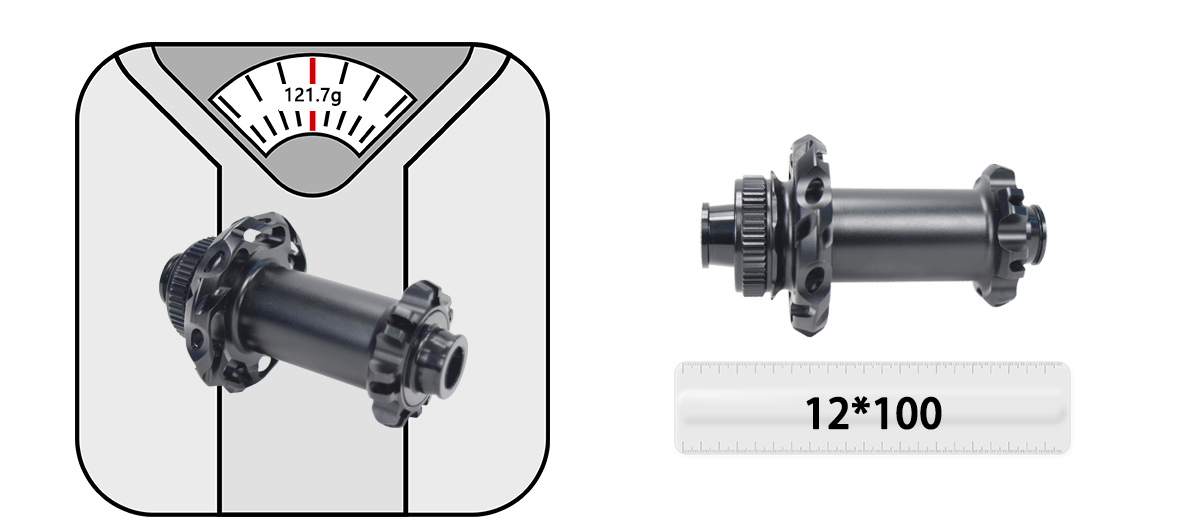

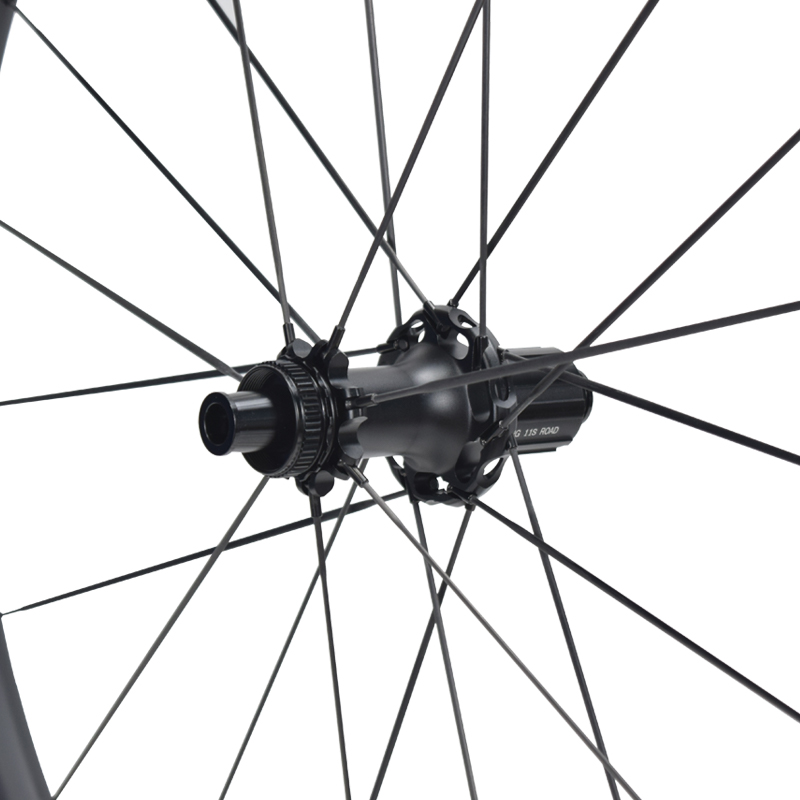

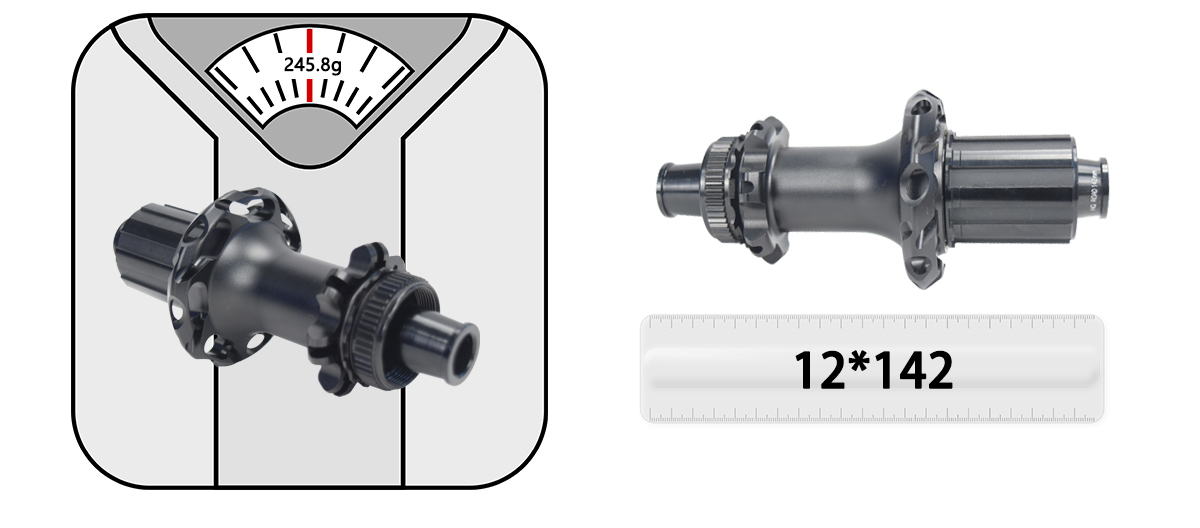

Carbon spoke hub ratchet 36T carbon spoke hub shimano or sram XDR optional center lock hub Carbon spoke hub front 12*100 rear 12*142

3.5mm or 5.2mm carbon spokes

Effortless climbing and rapid sprints – carbon spokes are the "accelerator" of cycling!

Extremely Lightweight: The 3.5mm version weighs only 3g per spoke (3.3g including the cap), and the 5.2mm version weighs only 3.3g (3.5g including the cap), significantly reducing the load on the wheelset.
Precise Structure: The spoke cap is 5.6mm in diameter, and the threaded end is M4*0.5 (9mm long), ensuring strong adaptability and a secure installation.
Dual Size Compatibility: Available in both 3.5mm and 5.2mm sizes, balancing lightweight design with rigidity requirements.

Carbon spoke 3.5mm or 5.2mm

SPECIFICATION

SA-CS03 carbon spoke wheelset

⇒Road disc brake carbon wheels with 26mm wide rim (19mm inner wide)

Model	Depth	External Width	Rim Type	Front Size	Rear Size	Spoke	Holes	Weight(+/-3%)
SA30CT-26	30mm	26mm	Tubeless	12*100mm	12*142mm	3.5/5.2mm carbon spoke	21H/21H(2:1)	1293.6g(3.5mm spoke)
SA38CT-26	38mm	26mm	Tubeless	12*100mm	12*142mm	3.5/5.2mm carbon spoke	21H/21H(2:1)	1353.6g(3.5mm spoke)
SA45CT-26	45mm	26mm	Tubeless	12*100mm	12*142mm	3.5/5.2mm carbon spoke	21H/21H(2:1)	1383.6g(3.5mm spoke)
SA50CT-26	50mm	26mm	Tubeless	12*100mm	12*142mm	3.5/5.2mm carbon spoke	21H/21H(2:1)	1423.6g(3.5mm spoke)
SA60CT-26	60mm	26mm	Tubeless	12*100mm	12*142mm	3.5/5.2mm carbon spoke	21H/21H(2:1)	1543.6g(3.5mm spoke)

Road disc brake carbon rim 26mm wide:

Rim	SA30CT-26	SA38CT-26	SA45CT-26	SA50CT-26	SA60CT-26
Rim Weight	395g±15g	425g±15g	440g±15g	460g±15g	530g±15g
ERD	580mm	564mm	550mm	540mm	520mm
Surface Texture	3K/UD/marble/UD paintless	3K/UD/marble/UD paintless	3K/UD/marble/UD paintless	3K/UD/marble/UD paintless	3K/UD/marble/UD paintless
Sectional Drawing

⇒Road disc brake carbon wheel build with 28mm outer wide rim (21mm inner wide):

Model	Deep	Outer wide	Rim type	Front size	Rear Size	Spoke	Holes	Weight (+/-3%)
SA30CT-28	30mm	28mm	Tubeless	12*100mm	12*142mm	3.5/5.2mm carbon spoke	21H/21H(2:1)	1303.6g(3.5mm spoke)
SA35CT-28	35mm	28mm	Tubeless	12*100mm	12*142mm	3.5/5.2mm carbon spoke	21H/21H(2:1)	1333.6g(3.5mm spoke)
SA40CT-28	40mm	28mm	Tubeless	12*100mm	12*142mm	3.5/5.2mm carbon spoke	21H/21H(2:1)	1353.6g(3.5mm spoke)
SA45CT-28	45mm	28mm	Tubeless	12*100mm	12*142mm	3.5/5.2mm carbon spoke	21H/21H(2:1)	1423.6g(3.5mm spoke)
SA50CT-28	50mm	28mm	Tubeless	12*100mm	12*142mm	3.5/5.2mm carbon spoke	21H/21H(2:1)	1443.6g(3.5mm spoke)
SA55CT-28	55mm	28mm	Tubeless	12*100mm	12*142mm	3.5/5.2mm carbon spoke	21H/21H(2:1)	1533.6g(3.5mm spoke)
SA60CT-28	60mm	28mm	Tubeless	12*100mm	12*142mm	3.5/5.2mm carbon spoke	21H/21H(2:1)	1573.6g(3.5mm spoke)

700C road disc brake carbon rim 28mm width specs:

Rim	SA30CT-28	SA35CT-28	SA40CT-28	SA45CT-28
Rim Weight	400g±15g	415g±15g	425g±15g	460g±15g
ERD	580mm	570mm	560mm	550mm
Surface Texture	3K/UD/marble/UD paintless	3K/UD/marble/UD paintless	3K/UD/marble/UD paintless	3K/UD/marble/UD paintless

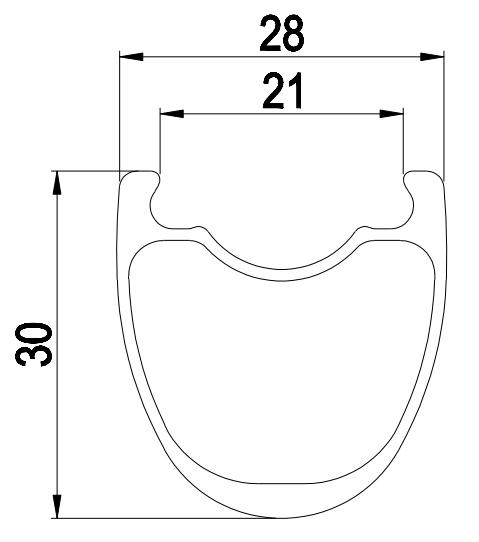

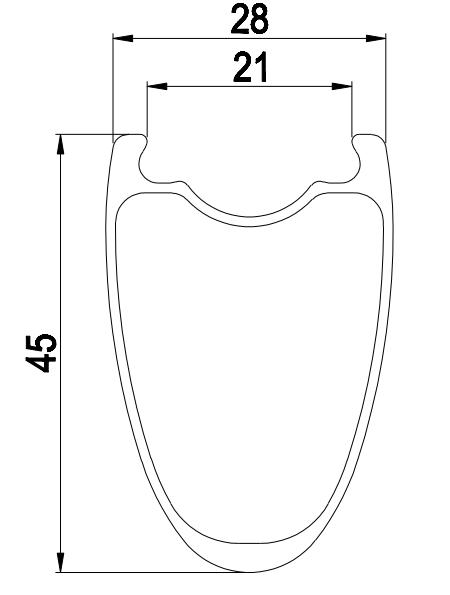

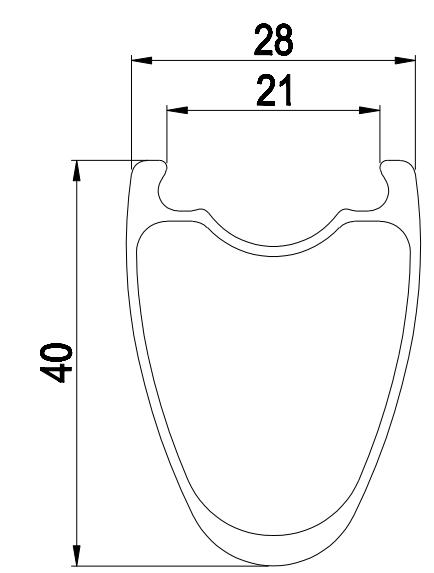

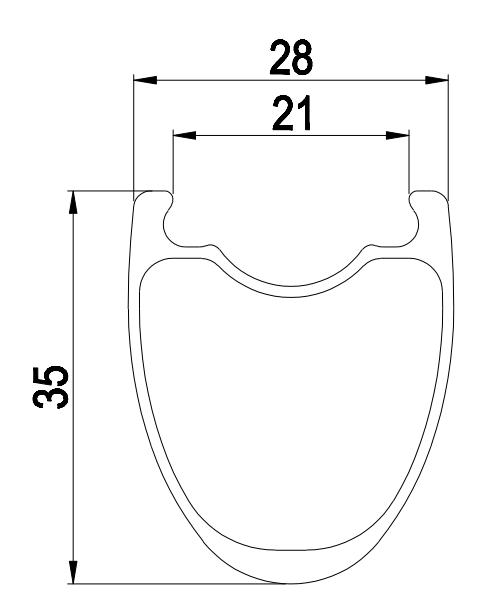

Sectional Drawing

Rim	SA50CT-28	SA55CT-28	SA60CT-28
Rim Weight	470g±15g	515g±15g	535g±15g
ERD	540mm	530mm	520mm
Surface Texture	3K/UD/marble/UD paintless	3K/UD/marble/UD paintless	3K/UD/marble/UD paintless

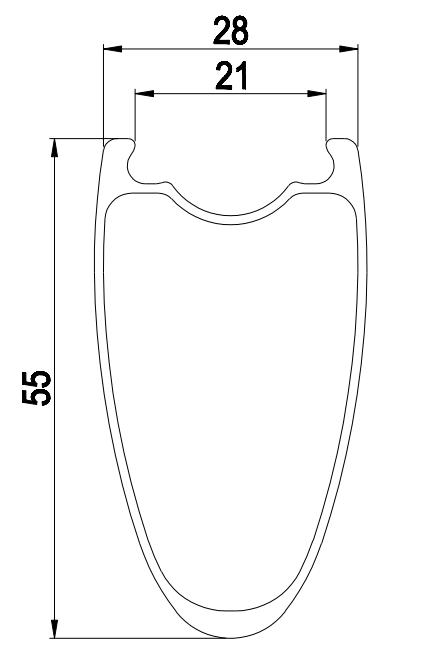

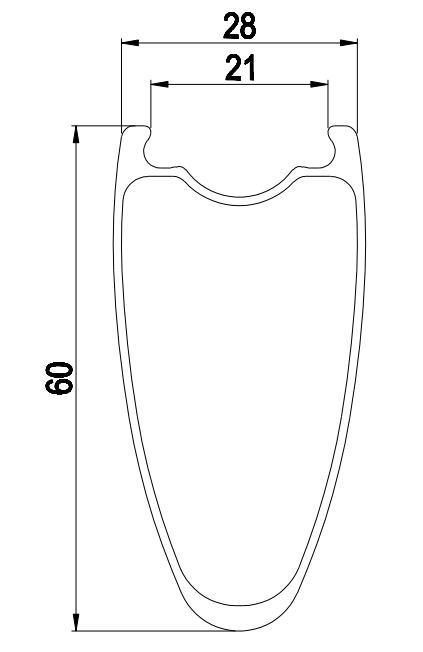

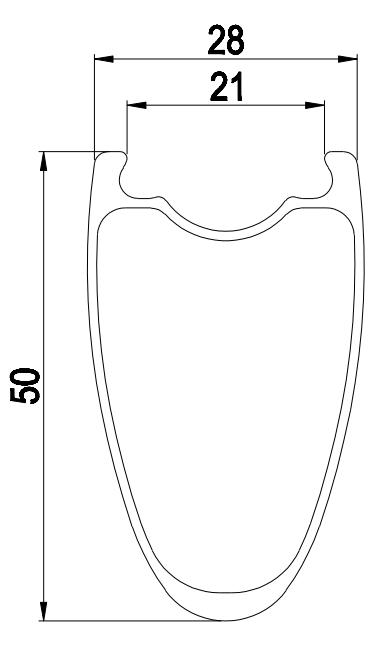

Sectional Drawing

⇒Road disc brake carbon wheel build with 30mm outer wide rim (24mm inner wide):

Model	Deep	Outer Wide	Rim type	Front size	Rear size	Spoke	Holes	Weight(+/-3%)
SA30CT-30	30mm	30mm	Tubeless	12*100mm	12*142mm	3.5/5.2mm carbon spoke	21H/21H(2:1)	1323.6g(3.5mm spoke)
SA35CT-30	35mm	35mm	Tubeless	12*100mm	12*142mm	3.5/5.2mm carbon spoke	21H/21H(2:1)	1353.6g(3.5mm spoke)
SA40CT-30	40mm	40mm	Tubeless	12*100mm	12*142mm	3.5/5.2mm carbon spoke	21H/21H(2:1)	1393.6g(3.5mm spoke)
SA45CT-30	45mm	45mm	Tubeless	12*100mm	12*142mm	3.5/5.2mm carbon spoke	21H/21H(2:1)	1423.6g(3.5mm spoke)
SA50CT-30	50mm	50mm	Tubeless	12*100mm	12*142mm	3.5/5.2mm carbon spoke	21H/21H(2:1)	1443.6g(3.5mm spoke)
SA60CT-30	60mm	60mm	Tubeless	12*100mm	12*142mm	3.5/5.2mm carbon spoke	21H/21H(2:1)	1533.6g(3.5mm spoke)

700C disc brake carbon road rims 30mm width specs:

Rim	SA30CT-30	SA35CT-30	SA40CT-30	SA45CT-30	SA50CT-30	SA60CT-30
Rim Weight	410g±15g	425g±15g	445g±15g	460g±15g	470g±15g	515g±15g
ERD	580mm	570mm	560mm	550mm	540mm	530mm
Surface Texture	3K/UD/marble/UD paintless	3K/UD/marble/UD paintless	3K/UD/marble/UD paintless	3K/UD/marble/UD paintless	3K/UD/marble/UD paintless	3K/UD/marble/UD paintless
Sectional Drawing

⇒Road disc brake carbon wheel build with 36mm outer wide rim (30mm inner wide):

Model	Deep	Outer wide	Rim type	Front Size	Rear Size	Spoke	Holes	Weight(+/-3%)
SA30CT-36	30mm	36mm	Tubeless	12*100mm	12*142mm	3.5/5.2mm carbon spoke	21H/21H(2:1)	1343.6g(3.5mm spoke)
SA35CT-36	35mm	36mm	Tubeless	12*100mm	12*142mm	3.5/5.2mm carbon spoke	21H/21H(2:1)	1373.6g(3.5mm spoke)
SA40CT-36	40mm	36mm	Tubeless	12*100mm	12*142mm	3.5/5.2mm carbon spoke	21H/21H(2:1)	1383.6g(3.5mm spoke)
SA45CT-36	45mm	36mm	Tubeless	12*100mm	12*142mm	3.5/5.2mm carbon spoke	21H/21H(2:1)	1403.6g(3.5mm spoke)
SA50CT-36	50mm	36mm	Tubeless	12*100mm	12*142mm	3.5/5.2mm carbon spoke	21H/21H(2:1)	1483.6g(3.5mm spoke)

700C disc-brake carbon road rims 36mm width specs:

Rim	SA30CT-36	SA35CT-36	SA40CT-36	SA45CT-36	SA50CT-36
Rim Weight	420g±15g	435g±15g	440g±15g	450g±15g	490g±15g
ERD	580mm	570mm	560mm	550mm	550mm
Surface Texture	3K/UD/marble/UD paintless	3K/UD/marble/UD paintless	3K/UD/marble/UD paintless	3K/UD/marble/UD paintless	3K/UD/marble/UD paintless

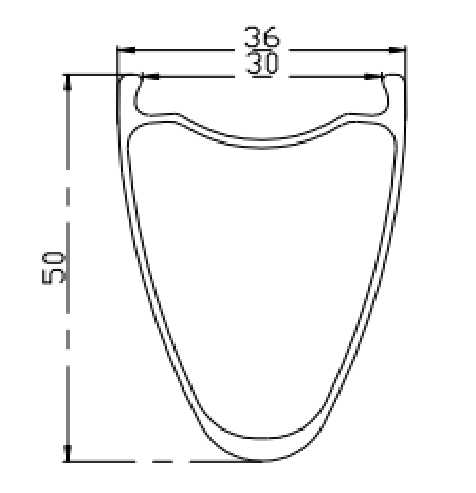

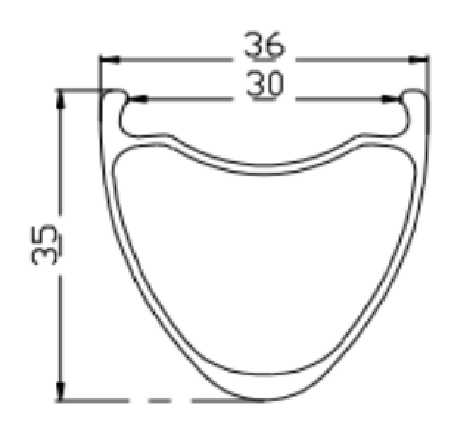

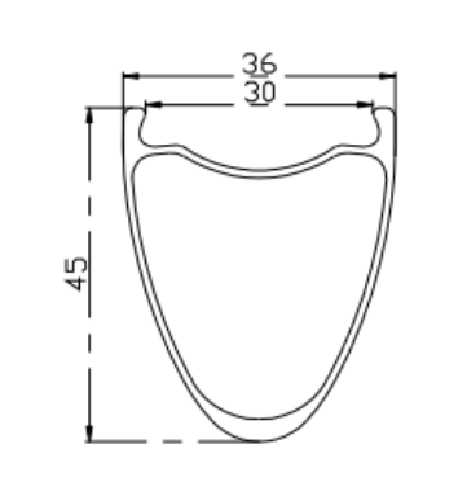

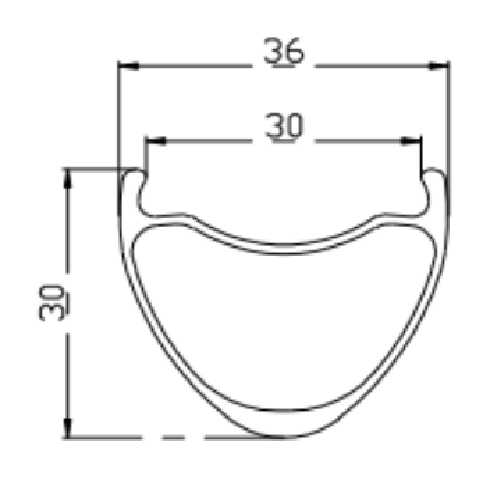

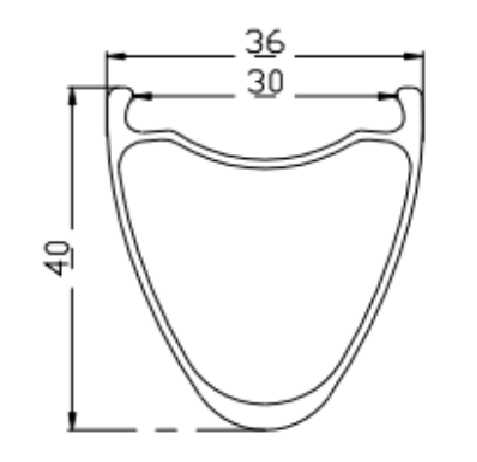

Sectional Drawing
