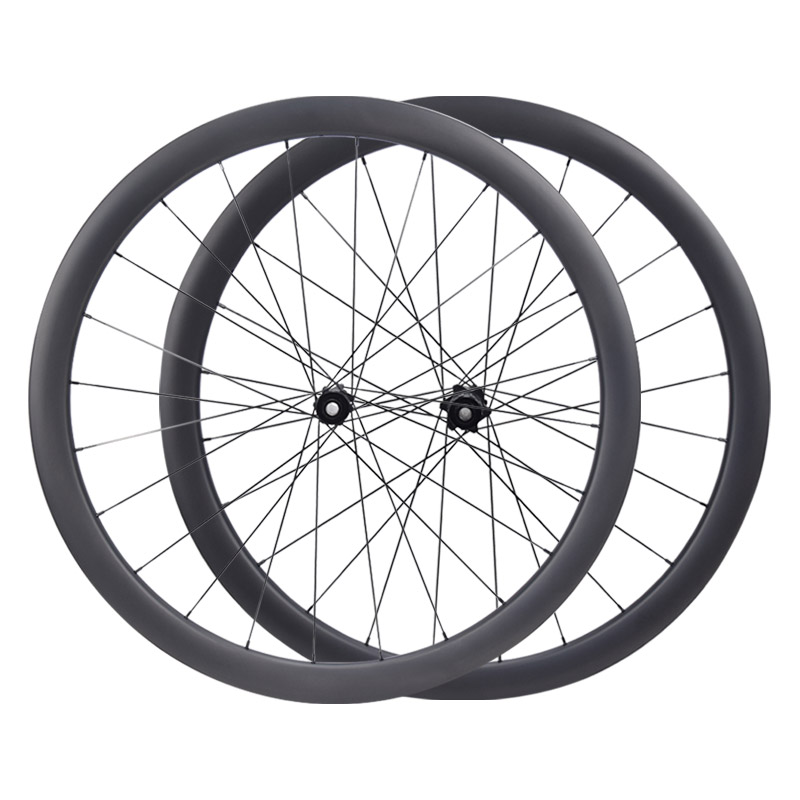

Carbon road wheelest

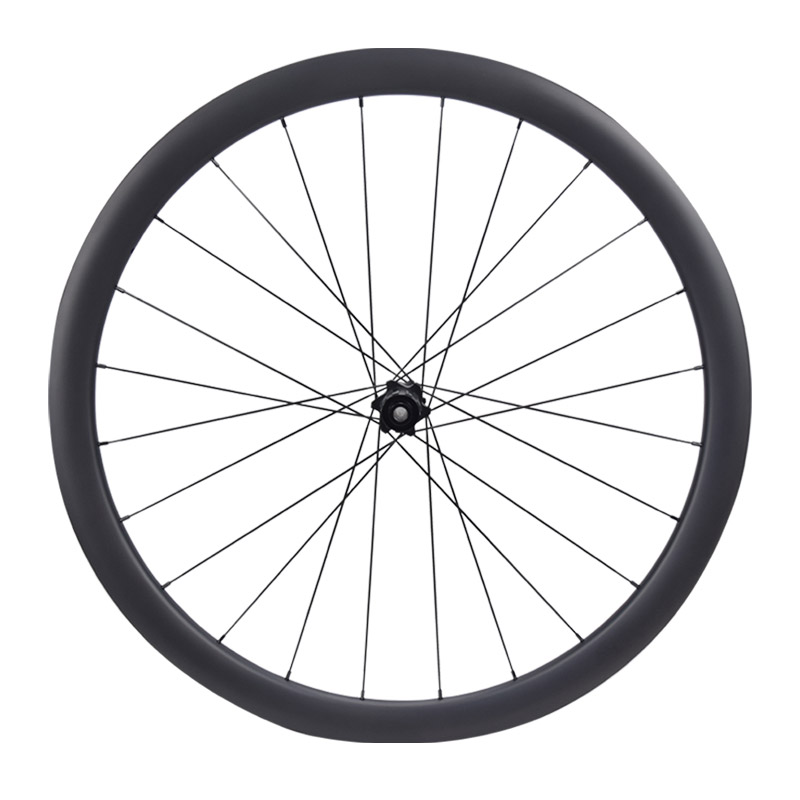

Carbon fiber wheel

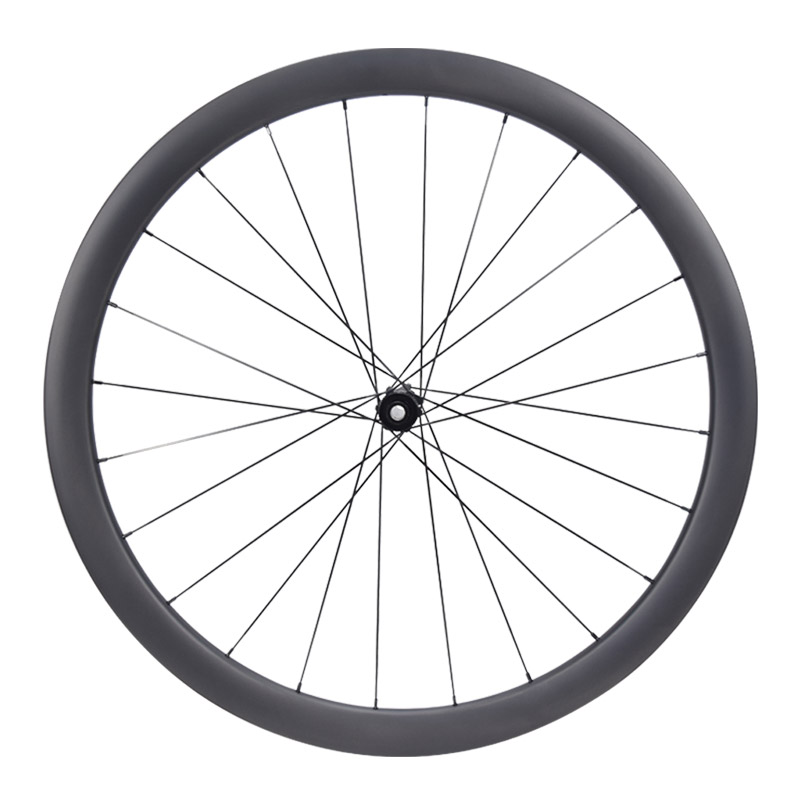

Bicycle wheelset

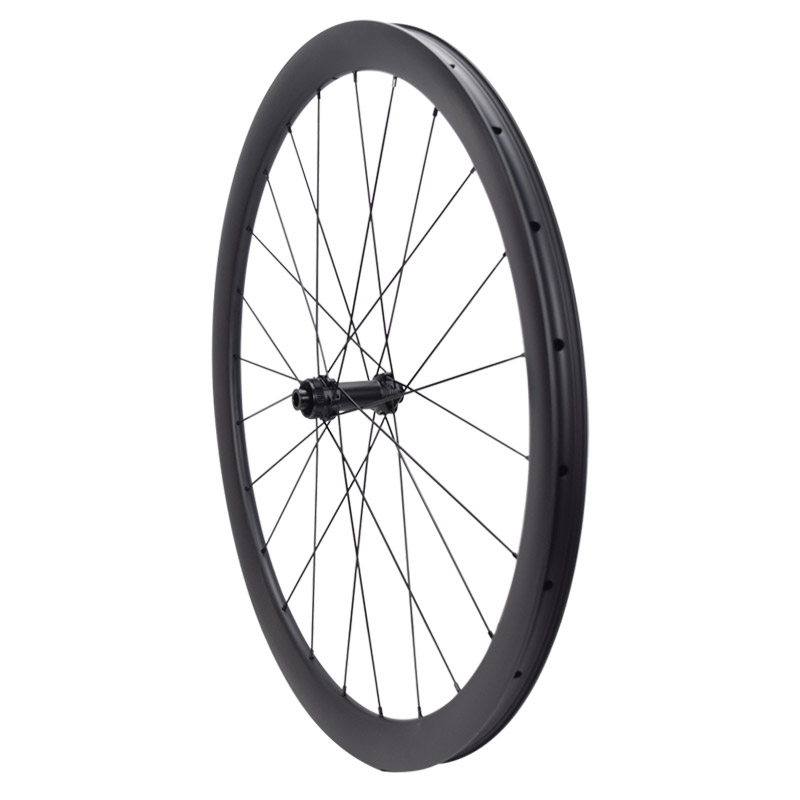

Straight-pull center-lock hub wheelset

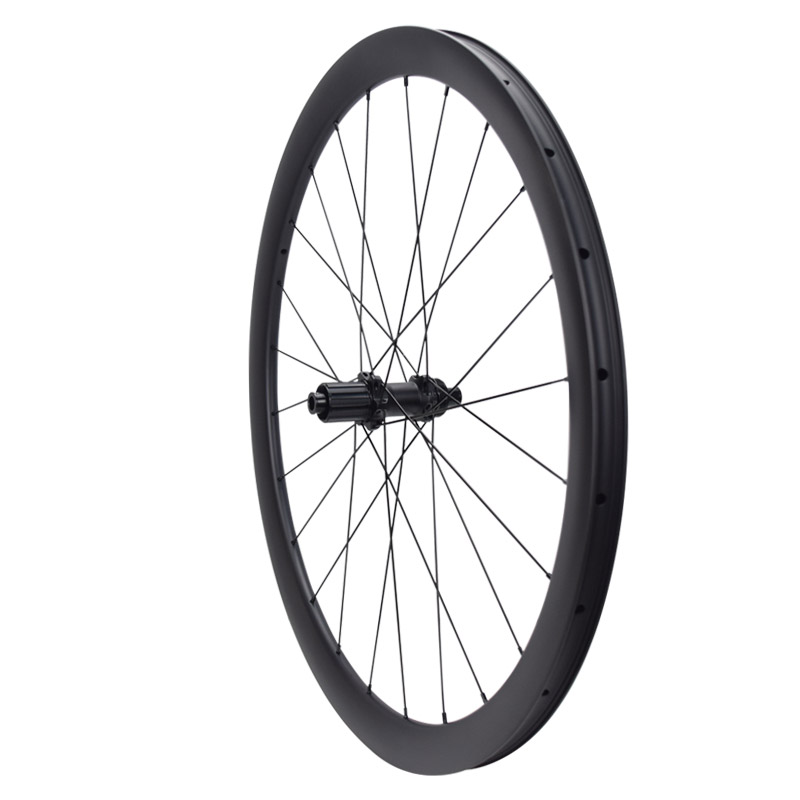

Steel spoke wheelset

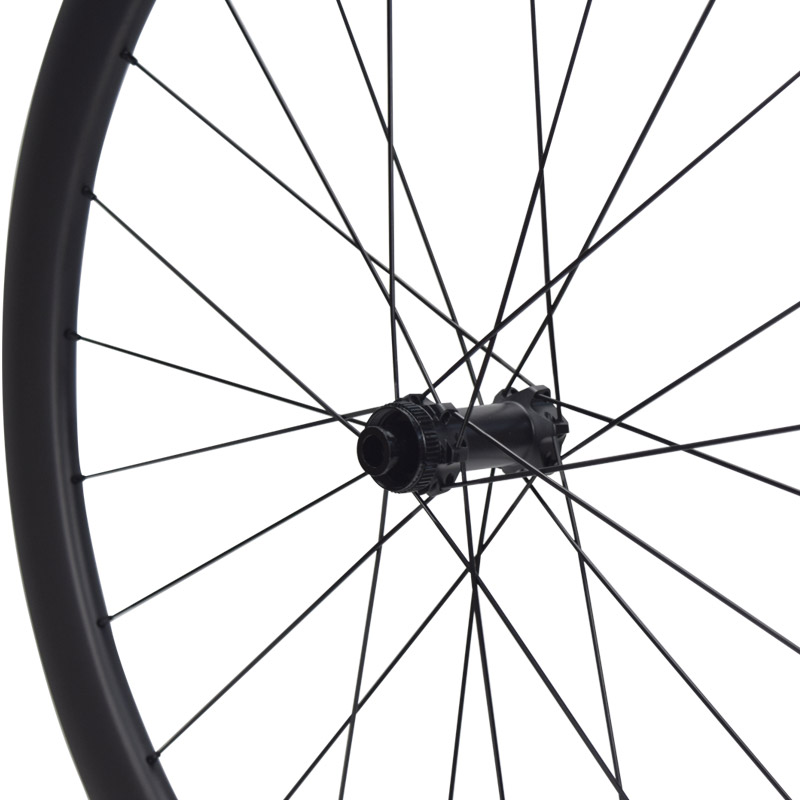

Center lock

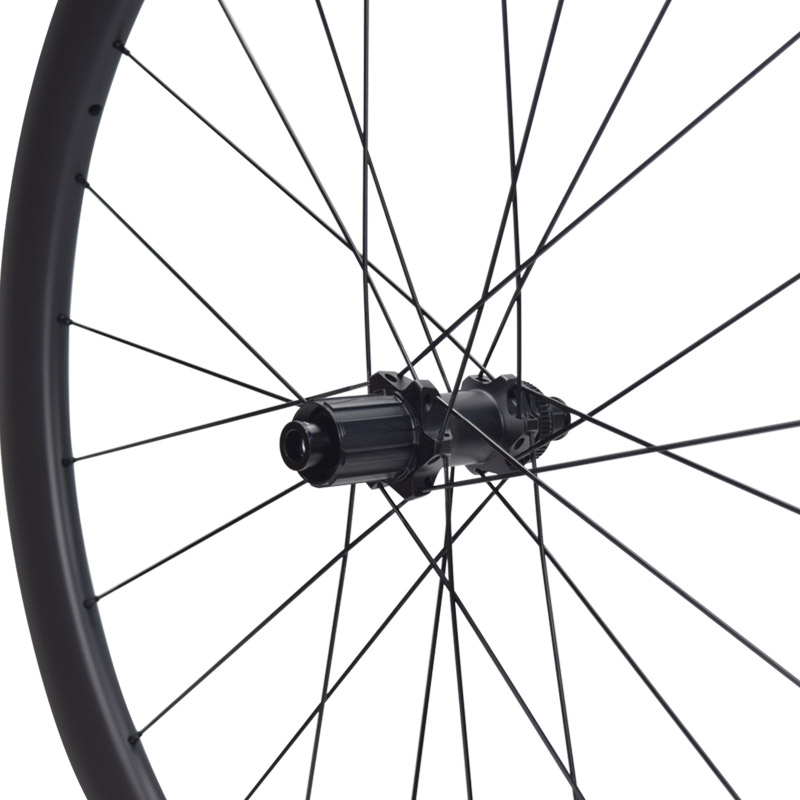

36T ratchet wheelset

Road bicycle disc brake gravel carbon wheels for SA-RD02

  • Tubeless rim ready, multiple rim height options available
  • 28mm, 30mm,36mm external wide carbon rim, Compatible with 700*25C-45C tires
  • SA-RD02 ratchet 36T hub, suit for Shimano 11s, Sram XDR 12s, Campagnolo N3W, Shimano micro spline 12s
  • SA-1423 spokes, offering excellent aerodynamics and durability
  • Finishing: 3K/UD/marble matte or glossy/UD paintless
  • 2 years warranty
  • If you require a lighter and better configuration, please contact us for an upgrade

  • Item No :

    SA-RD02 Wheel

  • Payment :

    Paypal, Bank Transfer

  • Product Origin :

    China

  • Color :

    UD/3k/12K
Inquiry Now
Product categories
New Products

Sakya Carbon 700C road bicycle gravel disc brake carbon wheels SA-RD02

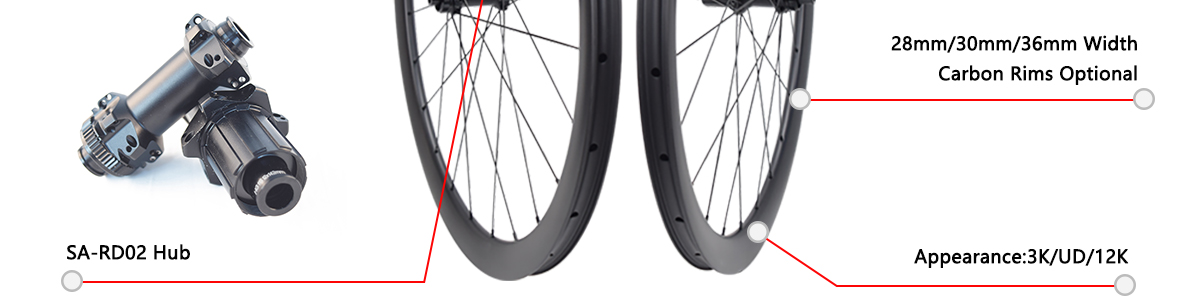

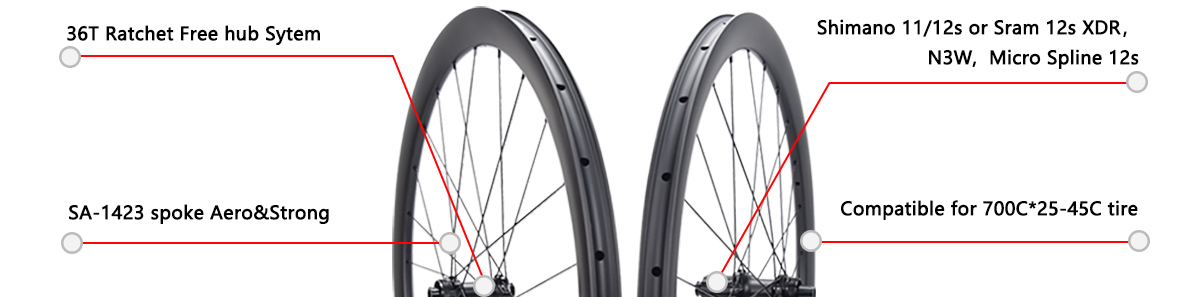

Gravel carbon wheels, SA-RD02 ratchet hub 36Tdisc brake carbon wheels 28mm 30mm 36mm wide for gravel wheels cyclecross

Features

  • Hubs disc brake: SA-RD02 center lock hub 341g (front 9*100mm or 12*100mm, rear 9*135mm or 12*142mm)
  • Free body: Shimano 11/12 speed, SRAM 12-speed XDR, Campagnolo N3W, Micro Spline 12-speed optional
  • Rim finish: UD/3K/marble matte glossy/UD paintless (Customized Decal acceptable)
  • Spoke type: straight-pull
  • Spoke hole count: front 24-hole, rear 24-hole
  • Rim type: Tubeless
  • Spoke: standard spoke SA-1423 spoke, we aslo supply more better spoke, like Pillar 1420 poke, Sapim cx-ray, ect.
  • Spoke breaking: 420-450kgf
  • Drive side tension: 135kgf
  • Max rider weight: 120kgf
  • If you require a lighter and better configuration for rim or spoke, please contact us for an upgrade

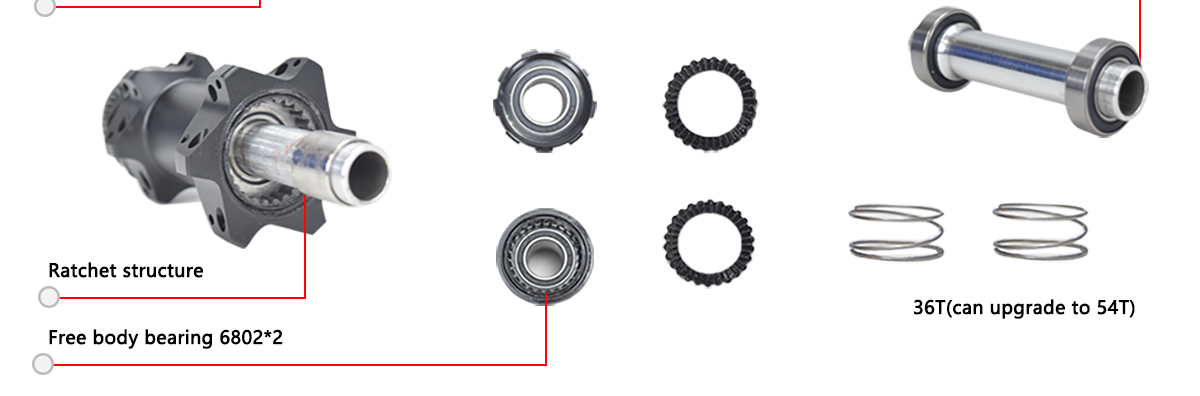

SA-RD02 ratchet structure

The SA-RD02 road disc brake hub offers stable and durable performance. It features a 36T ratchet cassette system with spring-loaded pawls, effectively improving pedaling efficiency and rebound, reducing friction, and transferring more energy to the wheel. This hub is compatible with Shimano 11/12-speed cassettes. As market demand grows, we are also continuously developing matching cassettes for SRAM 12-speed XDR, Compagnolo N3W, and Shimano Micro Spline 12-speed cassettes to loved by many customers.

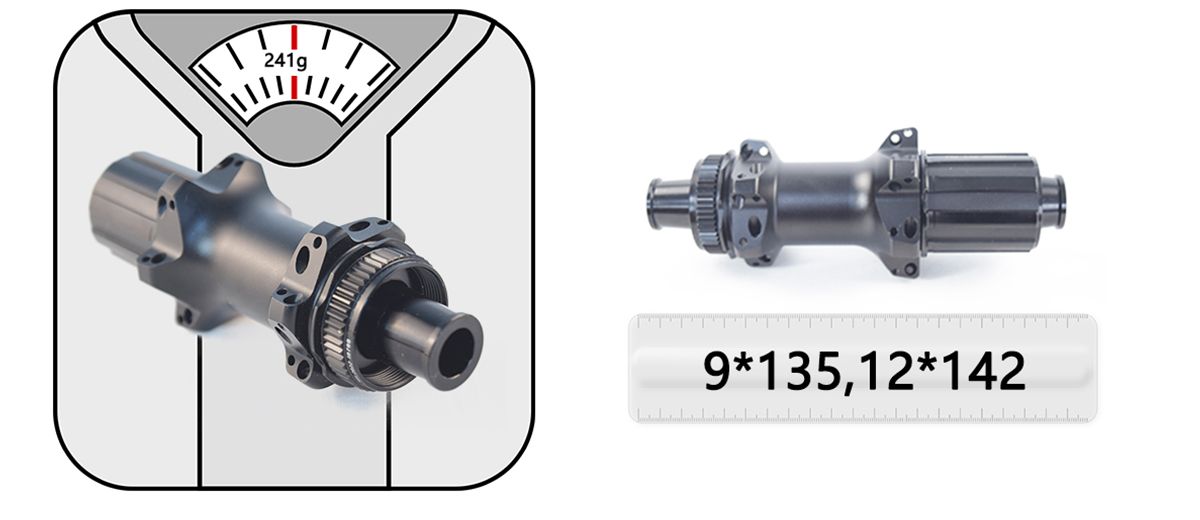

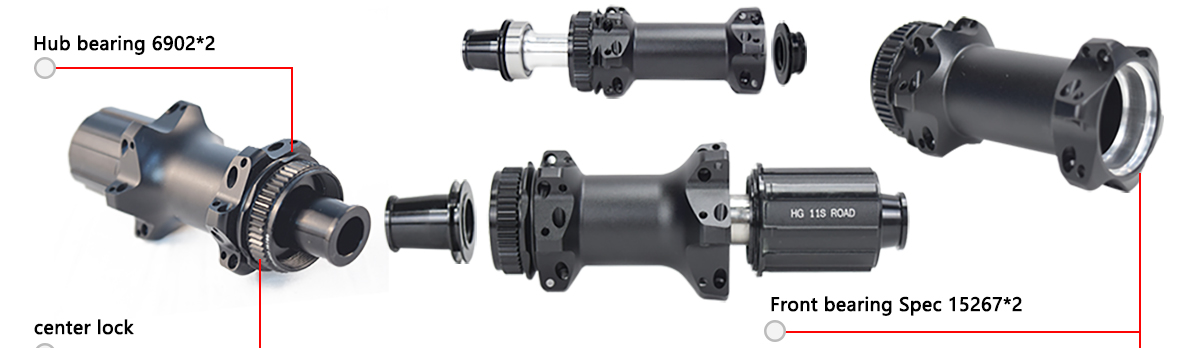

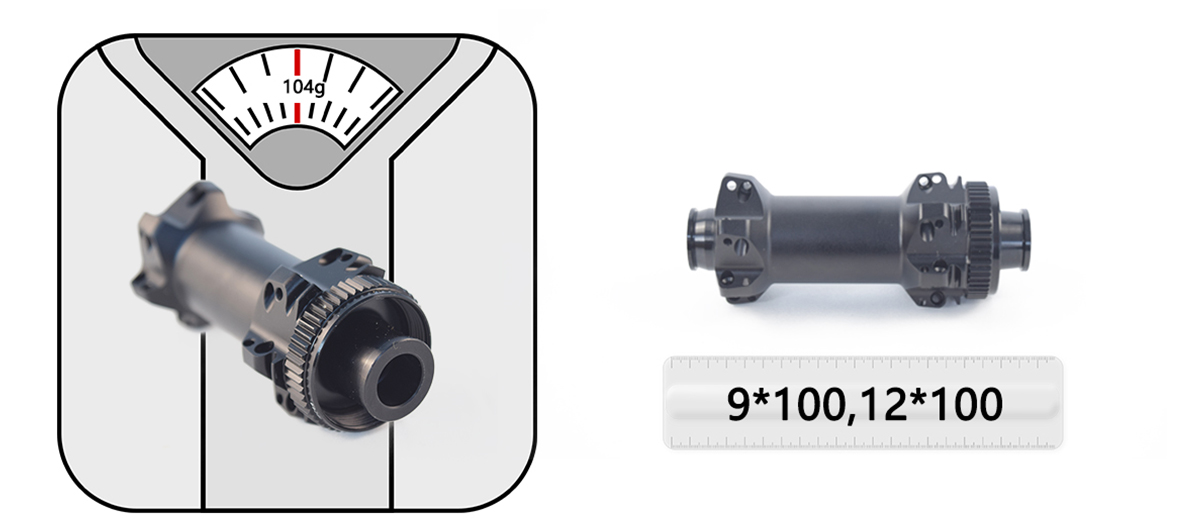

SA-RD02 disc brake carbon wheels center lock hubRD02 ratchet 36T hub,durable and stableCenter lock front hub, 9*100mm or 12*100mmCenter lock hub,rear 10*135mm or 12*142mm



SA-1423 Spoke Specs

Premium performance spokes designed for high-efficiency wheel builds—perfect for road, gravel, or mountain bike wheels

  • Strength: Impressive 420-450kgs breaking force for reliable durability under heavy loads
  • Weight: Spoke weight is 6.5-7.5g; nipple just 0.3-0.4g—keeps wheels strong
  • Versatile Fit: Spoke length ranges 200-310mm; nipple (14G, 14mm) fits standard wheel builds
  • Ideal for upgrading or building wheels that balance speed, weight, and durability. Pair with your favorite rims/hubs for a custom, high-performance setup

SA-RD02 disc brake carbon wheelset specification

⇒Road disc brake carbon wheel build with 28mm outer wide rim (21mm inner wide):

Model Deep Outer wide Rim type Front size Rear Size Spoke Holes Weight (+/-3%)
SA30CT-28 30mm 28mm Tubeless 9*100mm/12*100mm 9*135mm/12*142mm SA-1423 24H/24H 1477g
SA35CT-28 35mm 28mm Tubeless 9*100mm/12*100mm 9*135mm/12*142mm SA-1423 24H/24H 1507g
SA40CT-28 40mm 28mm Tubeless 9*100mm/12*100mm 9*135mm/12*142mm SA-1423 24H/24H 1527g
SA45CT-28 45mm 28mm Tubeless 9*100mm/12*100mm 9*135mm/12*142mm SA-1423 24H/24H 1557g
SA50CT-28 50mm 28mm Tubeless 9*100mm/12*100mm 9*135mm/12*142mm SA-1423 24H/24H 1617g
SA55CT-28 55mm 28mm Tubeless 9*100mm/12*100mm 9*135mm/12*142mm SA-1423 24H/24H 1707g
SA60CT-28 60mm 28mm Tubeless 9*100mm/12*100mm 9*135mm/12*142mm SA-1423 24H/24H 1747g



700C road disc brake carbon rim 28mm width specs:

Rim

SA30CT-28

SA35CT-28

SA40CT-28

SA45CT-28

Rim Weight

400g±15g

415g±15g

425g±15g

460g±15g

ERD

580mm

570mm

560mm

550mm

Surface Texture

3K/UD/marble/UD paintless

3K/UD/marble/UD paintless

3K/UD/marble/UD paintless

3K/UD/marble/UD paintless

Sectional Drawing





















Rim

SA50CT-28

SA55CT-28

SA60CT-28



Rim Weight

470g±15g

515g±15g

535g±15g



ERD

540mm

530mm

520mm



Surface Texture

3K/UD/marble/UD paintless

3K/UD/marble/UD paintless

3K/UD/marble/UD paintless



Sectional Drawing









⇒Road disc brake carbon wheel build with 30mm outer wide rim (24mm inner wide):

Model  Deep Outer Wide Rim type Front size Rear size Spoke Holes Weight(+/-3%)
SA30CT-30 30mm 30mm Tubeless 9*100mm/12*100mm 10*100mm/12*142mm SA-1423 24H/24H 1457g
SA35CT-30 35mm 35mm Tubeless 9*100mm/12*100mm 10*100mm/12*142mm SA-1423 24H/24H 1477g
SA40CT-30 40mm 40mm Tubeless 9*100mm/12*100mm 10*100mm/12*142mm SA-1423 24H/24H 1537g
SA45CT-30 45mm 45mm Tubeless 9*100mm/12*100mm 10*100mm/12*142mm SA-1423 24H/24H 1557g
SA50CT-30 50mm 50mm Tubeless 9*100mm/12*100mm 10*100mm/12*142mm SA-1423 24H/24H 1617g
SA60CT-30 60mm 60mm Tubeless 9*100mm/12*100mm 10*100mm/12*142mm SA-1423 24H/24H 1707g



700C disc brake carbon road rims 30mm width specs:

Rim SA30CT-30 SA35CT-30 SA40CT-30 SA45CT-30 SA50CT-30 SA60CT-30
Rim Weight 410g±15g 425g±15g 445g±15g 460g±15g 470g±15g 515g±15g
ERD 580mm 570mm 560mm 550mm 540mm 530mm
Surface Texture 3K/UD/marble/UD paintless 3K/UD/marble/UD paintless 3K/UD/marble/UD paintless 3K/UD/marble/UD paintless 3K/UD/marble/UD paintless 3K/UD/marble/UD paintless
Sectional Drawing



⇒Road disc brake carbon wheel build with 36mm outer wide rim (30mm inner wide):

Model Deep Outer wide Rim type Front Size Rear Size Spoke Holes Weight(+/-3%)
SA30CT-36 30mm 36mm Tubeless 9*100mm/12*100mm 10*135mm/12*142mm SA-1423 24/24H 1517g
SA35CT-36 35mm 36mm Tubeless 9*100mm/12*100mm 10*135mm/12*142mm SA-1423 24/24H 1547g
SA40CT-36 40mm 36mm Tubeless 9*100mm/12*100mm 10*135mm/12*142mm SA-1423 24/24H 1567g
SA45CT-36 45mm 36mm Tubeless 9*100mm/12*100mm 10*135mm/12*142mm SA-1423 24/24H 1587g
SA50CT-36 50mm 36mm Tubeless 9*100mm/12*100mm 10*135mm/12*142mm SA-1423 24/24H 1657g



700C disc-brake carbon road rims 36mm width specs:

Rim

SA30CT-36

SA35CT-36

SA40CT-36

SA45CT-36

SA50CT-36

Rim Weight

420g±15g

435g±15g

440g±15g

450g±15g

490g±15g

ERD

580mm

570mm

560mm

550mm

550mm

Surface Texture

3K/UD/marble/UD paintless

3K/UD/marble/UD paintless

3K/UD/marble/UD paintless

3K/UD/marble/UD paintless

3K/UD/marble/UD paintless

Sectional Drawing
