Gravel bicycle light carbon wheels disc brake SA-RD02SL

Gravel bike disc brake carbon wheels

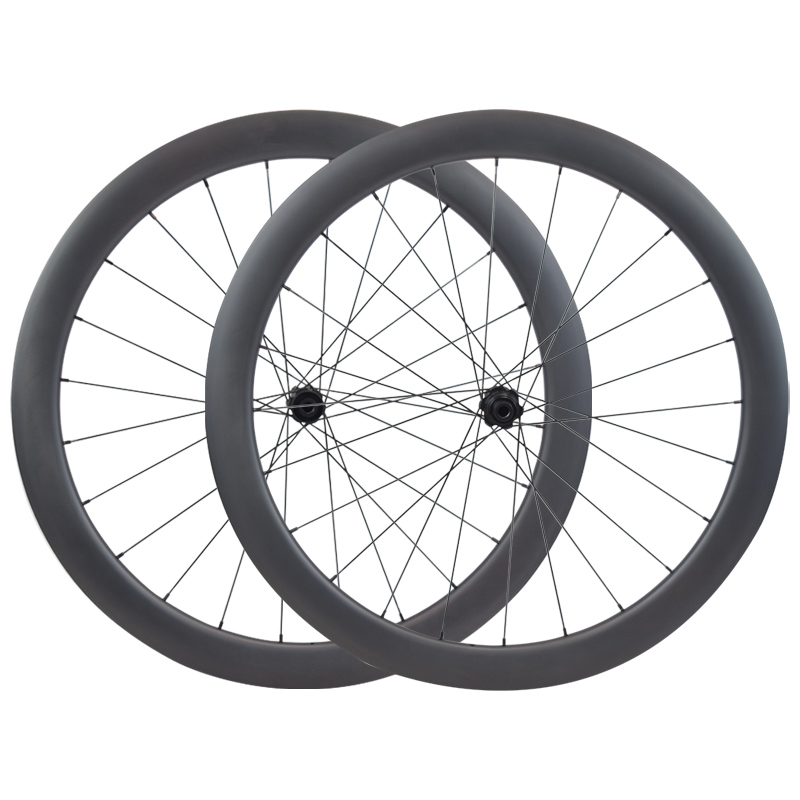

700C lightcarbon wheels for road bike

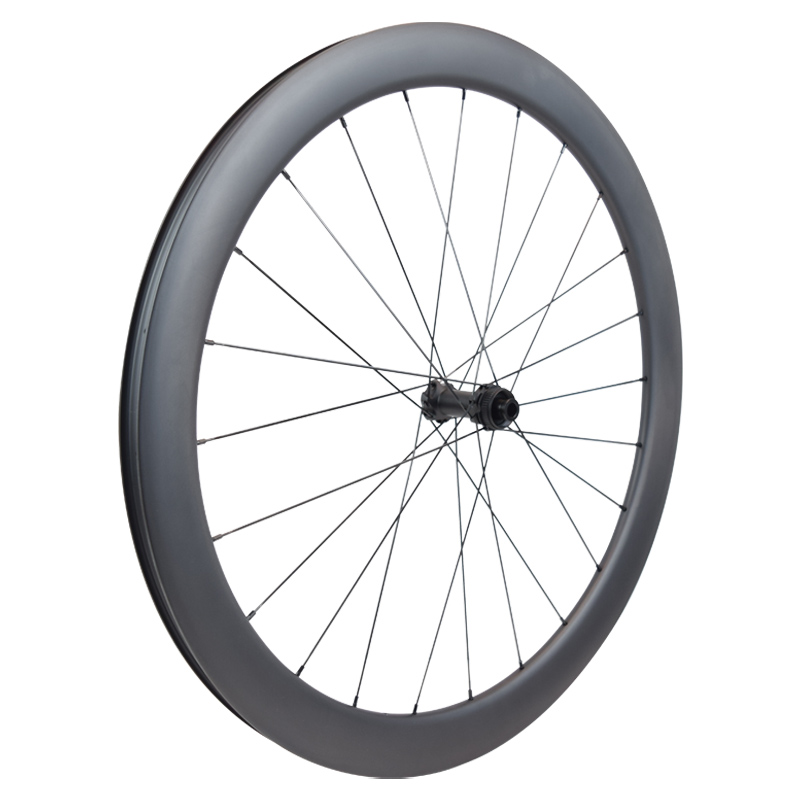

Light carbon wheels

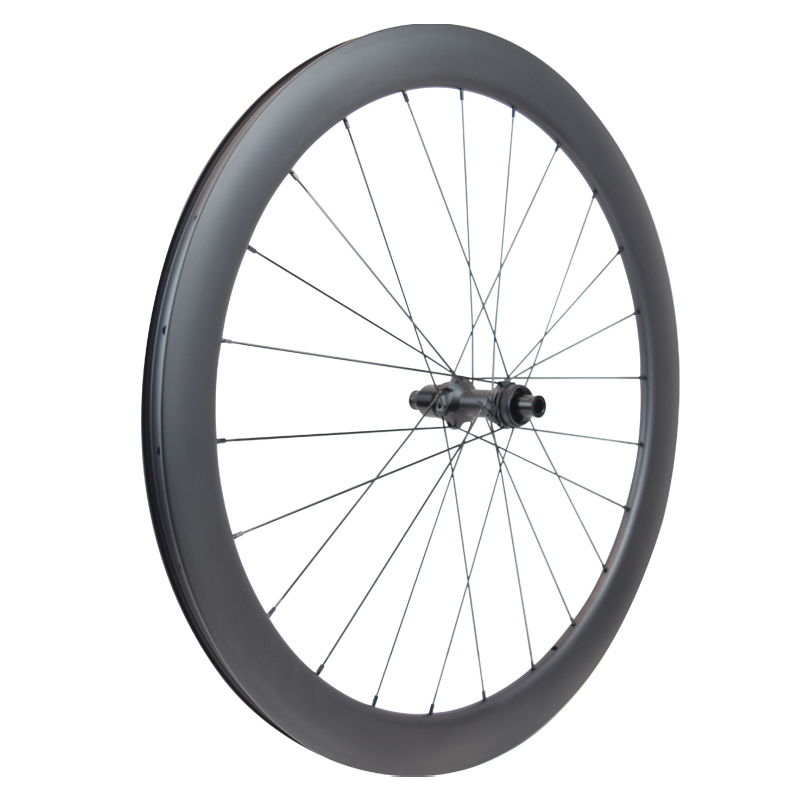

Gravel carbon wheels

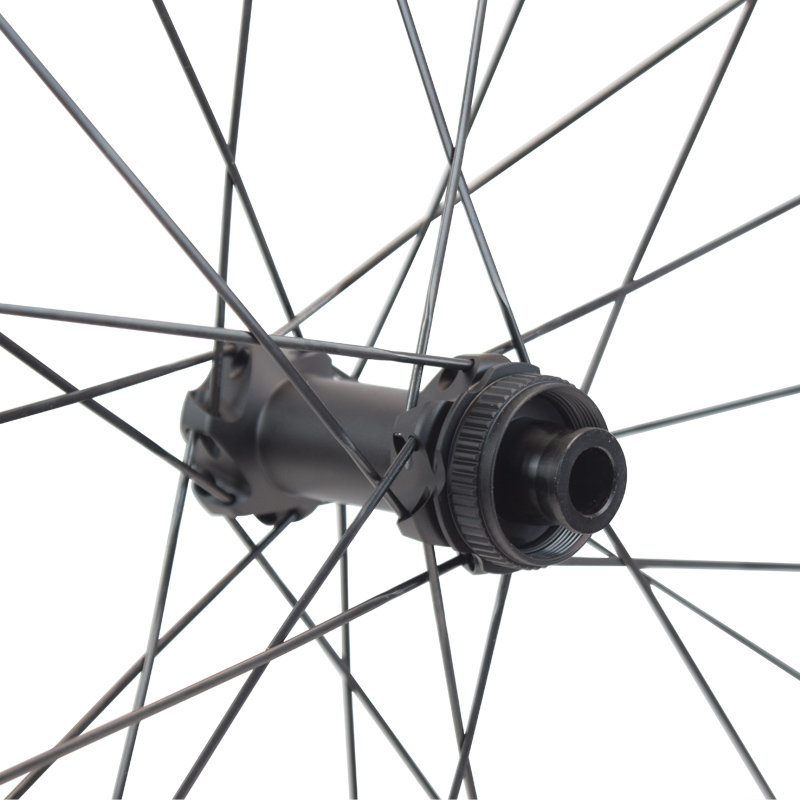

Center lock hub bicycle carbon wheels

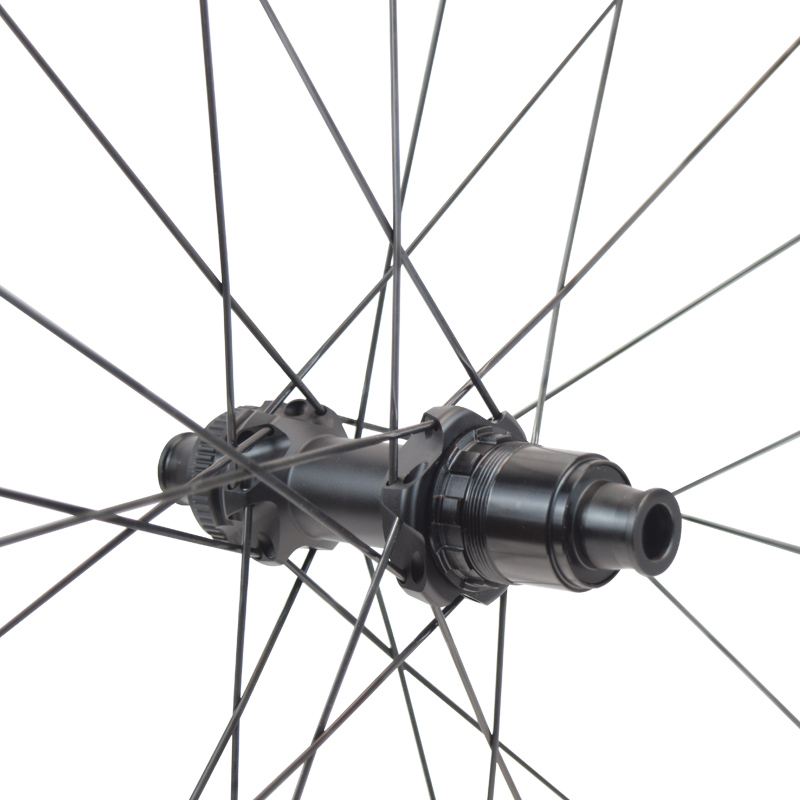

Sram XDR carbon wheels

Gravel bicycle light carbon wheels disc brake SA-RD02SL

  • 700C gravel 28mm/30mm/36mm wide carbon rims
  • SA-RD02SL hub center lock 273g, TPI bearing or ceramic bearing
  • Ratchet 54T, Shimano 11/12 speed or Sram 12 XDR speed options
  • SA-1423 spokes (can upgrade to Sapim Cx-ray spokes)
  • Finishing: 3K/UD/marble matte or glossy/UD paintless
  • For a lighter, higher-performance configuration, please contact us for an upgrade.

  • Item No :

    SA-RD02SL Wheel

  • Payment :

    Paypal, Bank Transfer

  • Product Origin :

    China

  • Color :

    UD/3k/12K
Inquiry Now
Product categories
New Products

Sakya Carbon road gravel bicycle disc brake light carbon wheels SA-RD02SL



Sakya Carbon road bike gravel disc brake wheelset offer cycling enthusiasts a dual feast of speed and safety! Made from select T700 high-modulus carbon fiber raw materials and forged using a one-piece hot-pressing process, they deliver racing-grade rigidity – zero-delay power delivery, swift and powerful sprints on flat roads, and effortless long-distance riding.

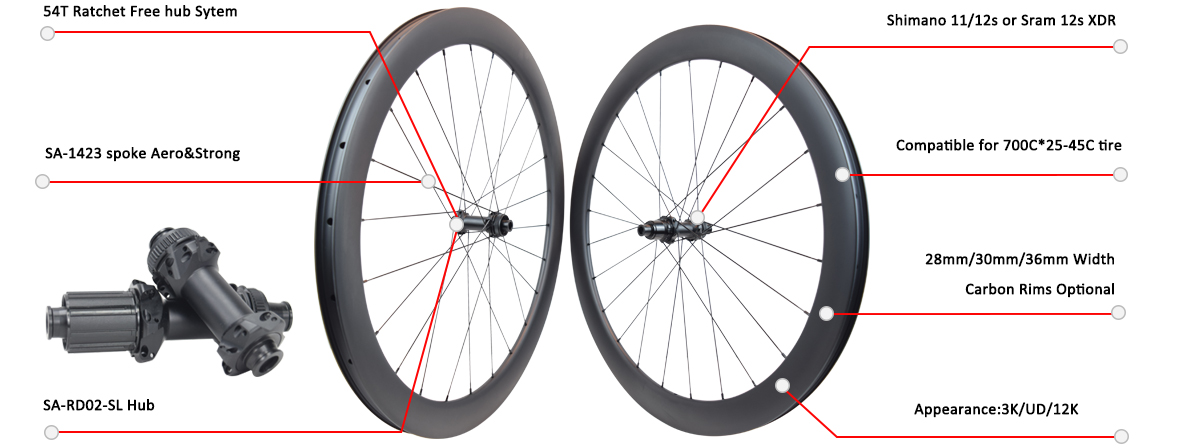

Gravel bike light carbon wheels, SA-RD02SL ratchet hub 54T



Features⇓

  • Gravel rim 28mm/30mm/36mm outer width, with 21mm/24mm/30mm inner width
  • Hub: SA-RD02SL center lock hub  (front 12*100mm, rear 12*142mm), 273g，TPI bearing or ceramic bearing optional
  • Free body: Shimano 11/12 speed, Sram 12-speed XDR optional
  • Rim finish: UD/3K/marble matte glossy/UD paintless (Customized Decal acceptable)
  • Spoke type: straight-pull
  • Spoke hole count: front 24-hole, rear 24-hole
  • Spoke: standard spoke SA-1423 spoke（can upgrade to Sapim Cx-ray spokes）
  • Spoke breaking: 420-450kgf
  • Drive side tension: 135kgf
  • Max rider weight: 120kgf
  • If you require a lighter and better configuration for rim or spoke, please contact us for an upgrade

DETAILS

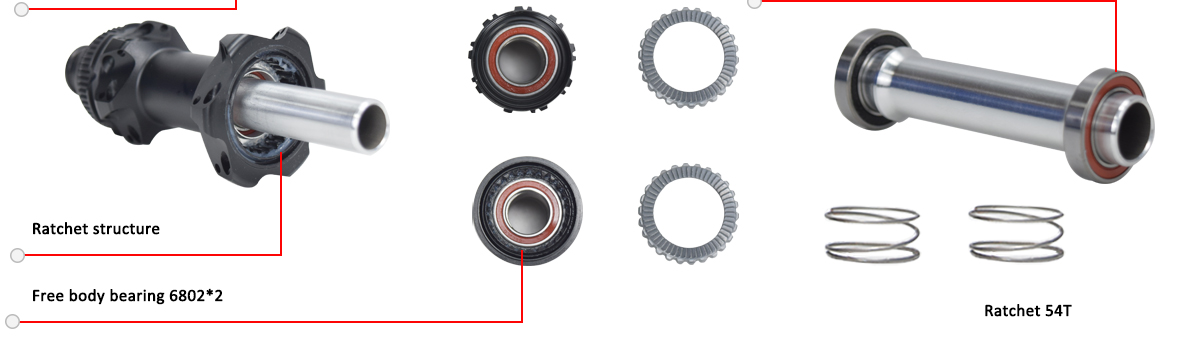

SA-RD02SL ratchet structure⇓

  • Light weight, only 273g
  • TPI bearing and ceramic bearing options
  • Center lock disc brake, Ratchet 54T free hub is popular
  • Stable performance and beautiful design
  • Support laser engraving buyer own logo
  • Support switching between multiple cassette body Shimano 11/12s or Sram XDR 12s

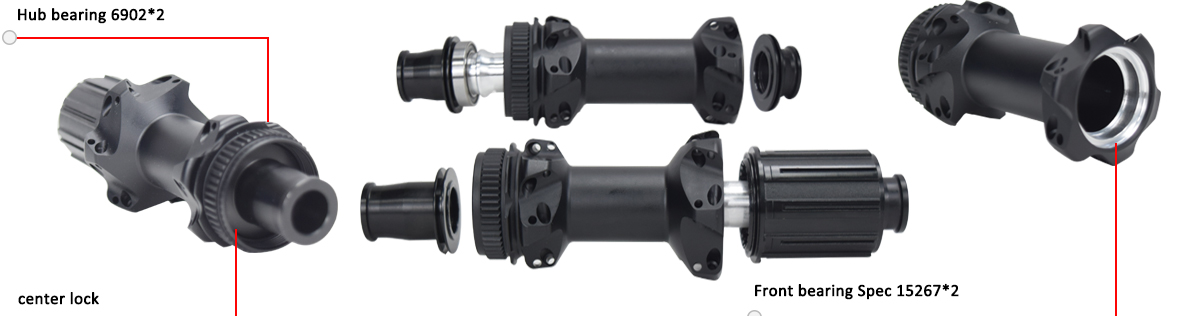

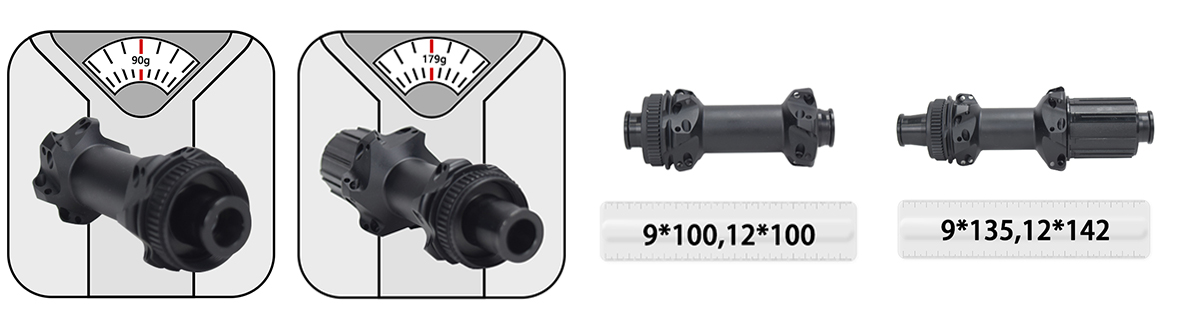

SA-RD02SL disc brake center lock hub ratchet 54TRD02SL ratchet 36T hub,durable and stableRaod bike disc brake hub center lock hub 12*100mm rear 12*142mm

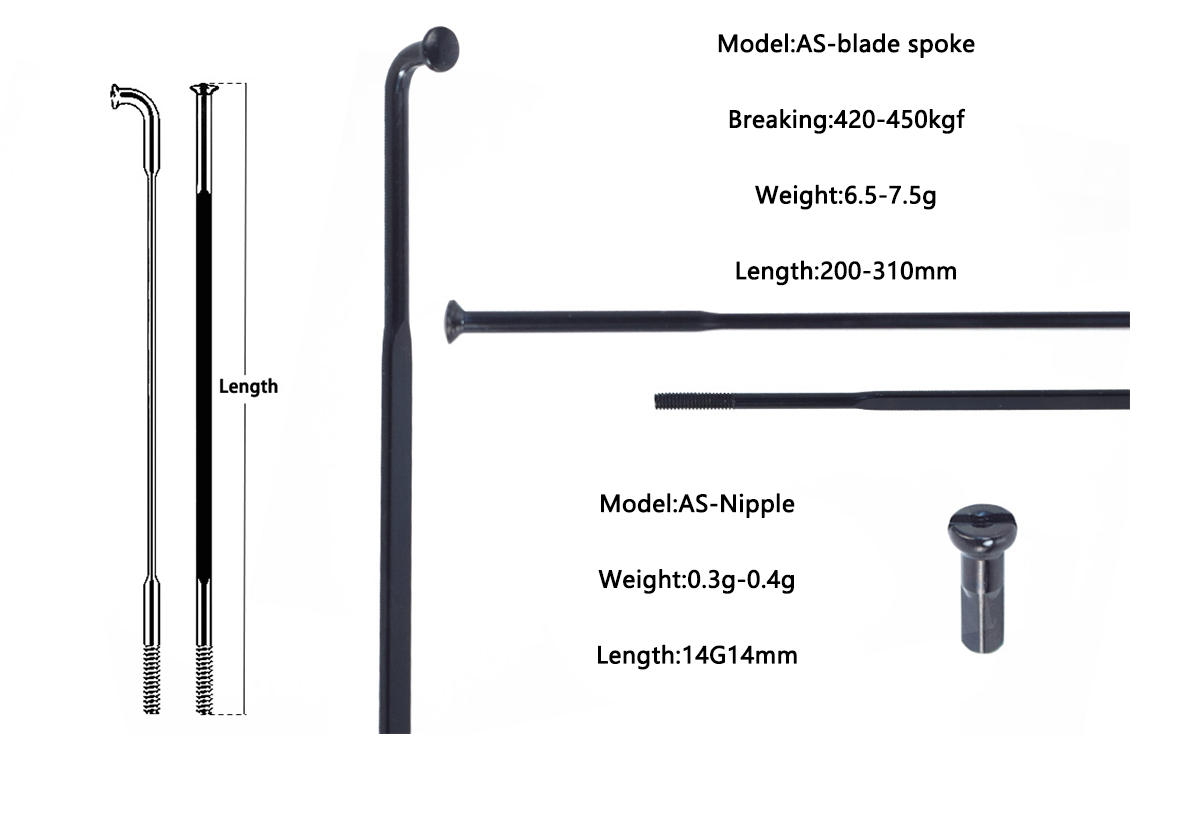

SA-1423 Spoke Specs⇓

Premium performance spokes designed for high-efficiency wheel builds—perfect for road, gravel, or mountain bike wheels

  • Strength: Impressive 420-450kgs breaking force for reliable durability under heavy loads
  • Weight: Spoke weight is 6.5g-7.5g; nipple just 0.3-0.4g—keeps wheels strong
  • Versatile Fit: Spoke length ranges 200-310mm; nipple (14G, 14mm) fits standard wheel builds
  • Ideal for upgrading or building wheels that balance speed, weight, and durability. Pair with your favorite rims/hubs for a custom, high-performance setup

Bicycle spokes, aero and strong, steel meterial

SPECIFICATION



◊ Road disc brake carbon wheels build with rim 28mm outer width(21mm inner width)⇓

Model Deep Outer wide Rim type Front size Rear Size Spoke Holes Weight (+/-3%)
SA30CT-28 30mm 28mm Tubeless 9*100mm/12*100mm 9*135mm/12*142mm SA-1423 24H/24H 1409g
SA35CT-28 35mm 28mm Tubeless 9*100mm/12*100mm 9*135mm/12*142mm SA-1423 24H/24H 1439g
SA40CT-28 40mm 28mm Tubeless 9*100mm/12*100mm 9*135mm/12*142mm SA-1423 24H/24H 1459g
SA45CT-28 45mm 28mm Tubeless 9*100mm/12*100mm 9*135mm/12*142mm SA-1423 24H/24H 1489g
SA50CT-28 50mm 28mm Tubeless 9*100mm/12*100mm 9*135mm/12*142mm SA-1423 24H/24H 1549g
SA55CT-28 55mm 28mm Tubeless 9*100mm/12*100mm 9*135mm/12*142mm SA-1423 24H/24H 1639g
SA60CT-28 60mm 28mm Tubeless 9*100mm/12*100mm 9*135mm/12*142mm SA-1423 24H/24H 1679g



◊ 700C road disc brake carbon rim 28mm width⇓

Rim

SA30CT-28

SA35CT-28

SA40CT-28

SA45CT-28

Rim Weight

400g±15g

415g±15g

425g±15g

460g±15g

ERD

580mm

570mm

560mm

550mm

Surface Texture

3K/UD/marble/UD paintless

3K/UD/marble/UD paintless

3K/UD/marble/UD paintless

3K/UD/marble/UD paintless

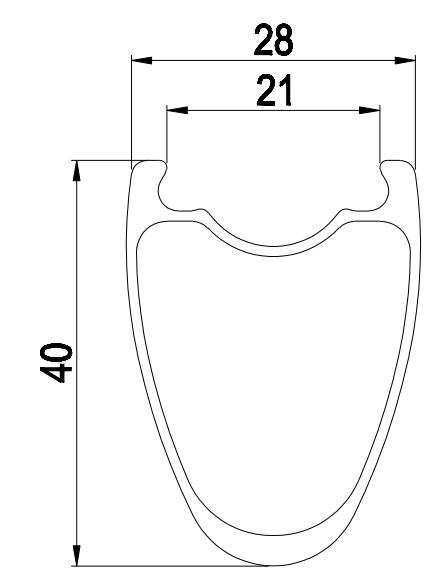

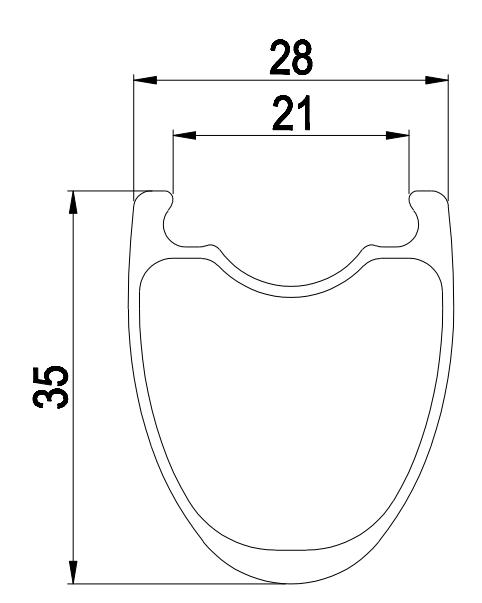

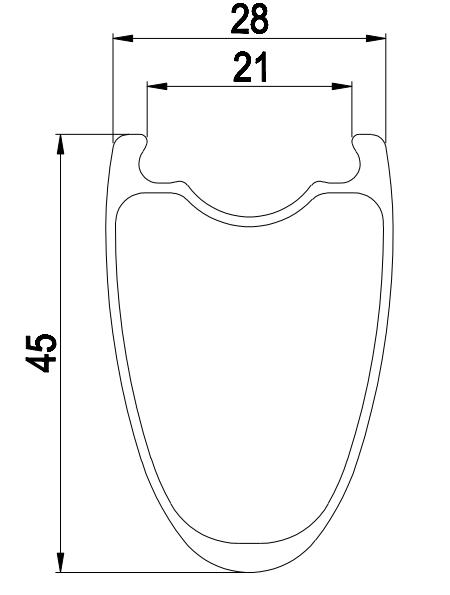

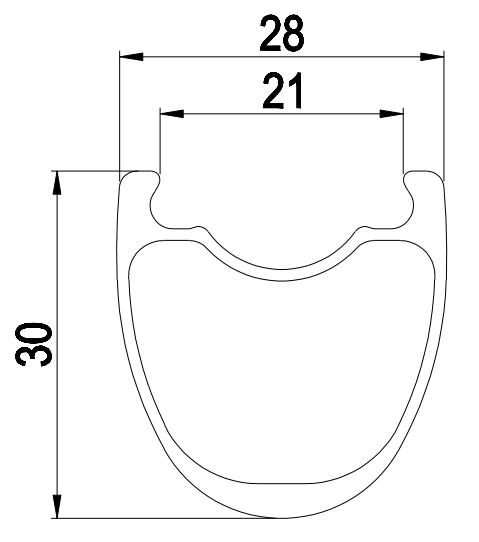

Sectional Drawing





















Rim

SA50CT-28

SA55CT-28

SA60CT-28



Rim Weight

470g±15g

515g±15g

535g±15g



ERD

540mm

530mm

520mm



Surface Texture

3K/UD/marble/UD paintless

3K/UD/marble/UD paintless

3K/UD/marble/UD paintless

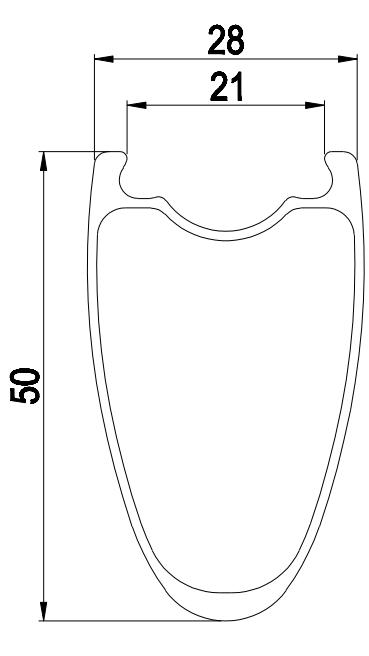

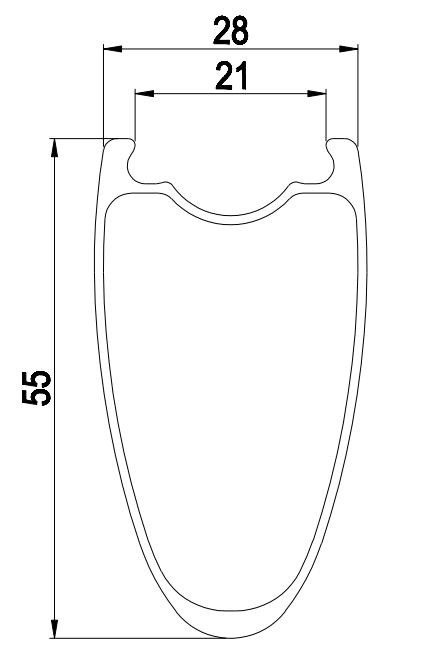

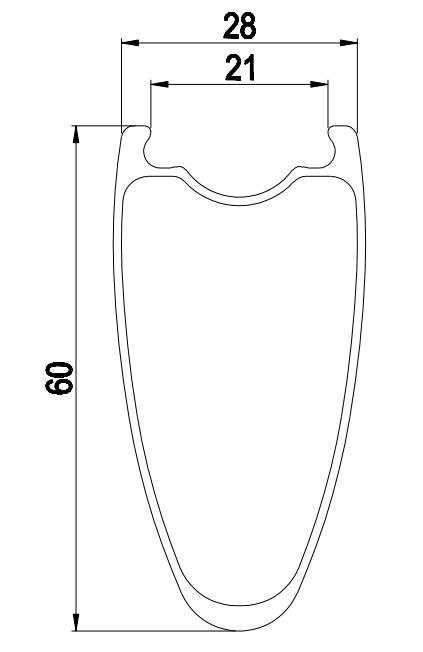

Sectional Drawing







◊ Road disc brake carbon wheel build with rim 30mm outer width(24mm inner width)⇓

Model  Deep Outer Wide Rim type Front size Rear size Spoke Holes Weight(+/-3%)
SA30CT-30 30mm 30mm Tubeless 9*100mm/12*100mm 10*100mm/12*142mm SA-1423 24H/24H 1389g
SA35CT-30 35mm 35mm Tubeless 9*100mm/12*100mm 10*100mm/12*142mm SA-1423 24H/24H 1409g
SA40CT-30 40mm 40mm Tubeless 9*100mm/12*100mm 10*100mm/12*142mm SA-1423 24H/24H 1469g
SA45CT-30 45mm 45mm Tubeless 9*100mm/12*100mm 10*100mm/12*142mm SA-1423 24H/24H 1489g
SA50CT-30 50mm 50mm Tubeless 9*100mm/12*100mm 10*100mm/12*142mm SA-1423 24H/24H 1549g
SA60CT-30 60mm 60mm Tubeless 9*100mm/12*100mm 10*100mm/12*142mm SA-1423 24H/24H 1639g



◊ 700C disc brake carbon road rims 30mm width⇓

Rim SA30CT-30 SA35CT-30 SA40CT-30 SA45CT-30 SA50CT-30 SA60CT-30
Rim Weight 410g±15g 425g±15g 445g±15g 460g±15g 470g±15g 515g±15g
ERD 580mm 570mm 560mm 550mm 540mm 530mm
Surface Texture 3K/UD/marble/UD paintless 3K/UD/marble/UD paintless 3K/UD/marble/UD paintless 3K/UD/marble/UD paintless 3K/UD/marble/UD paintless 3K/UD/marble/UD paintless
Sectional Drawing

◊ Road disc brake carbon wheel build with rim 36mm outer width(30mm inner width)⇓

Model Deep Outer wide Rim type Front Size Rear Size Spoke Holes Weight(+/-3%)
SA30CT-36 30mm 36mm Tubeless 9*100mm/12*100mm 10*135mm/12*142mm SA-1423 24/24H 1449g
SA35CT-36 35mm 36mm Tubeless 9*100mm/12*100mm 10*135mm/12*142mm SA-1423 24/24H 1479g
SA40CT-36 40mm 36mm Tubeless 9*100mm/12*100mm 10*135mm/12*142mm SA-1423 24/24H 1499g
SA45CT-36 45mm 36mm Tubeless 9*100mm/12*100mm 10*135mm/12*142mm SA-1423 24/24H 1587g
SA50CT-36 50mm 36mm Tubeless 9*100mm/12*100mm 10*135mm/12*142mm SA-1423 24/24H 1589g



◊ 700C disc-brake carbon road rims 36mm width:

Rim

SA30CT-36

SA35CT-36

SA40CT-36

SA45CT-36

SA50CT-36

Rim Weight

420g±15g

435g±15g

440g±15g

450g±15g

490g±15g

ERD

580mm

570mm

560mm

550mm

550mm

Surface Texture

3K/UD/marble/UD paintless

3K/UD/marble/UD paintless

3K/UD/marble/UD paintless

3K/UD/marble/UD paintless

3K/UD/marble/UD paintless

Sectional Drawing
