WHEELSET

Home WHEELSET

Bike wheels carbon spoke light weight SA-CS15

Bike wheels carbon spoke light weight SA-CS15

Full carbon spoke gravel bike wheels
Carbon spoke 3.5mm/5.2mm
Shimano 11/12s or Sram 12s XDR
Finishing 3K/UD matte/glossy, UD paintless
2 years warranty

Item No :
SA-CS15 carbon spoke wheel
Payment :
Paypal, Bank Transfer
Product Origin :
China
Color :
3K/12K/UD

Inquiry Now

Sakya Carbon Bike wheels carbon spoke light weight SA-CS15

Elevate your cycling performance with this high-quality full carbon fiber wheelset—engineered for durability, responsiveness, and versatile compatibility, ideal for road cycling enthusiasts.

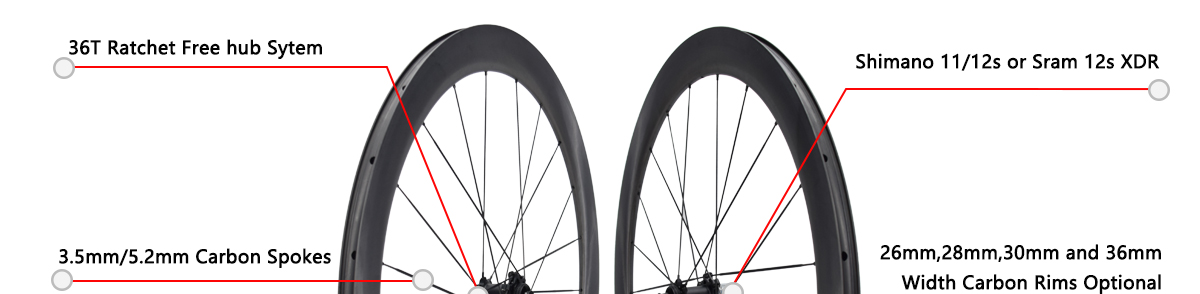

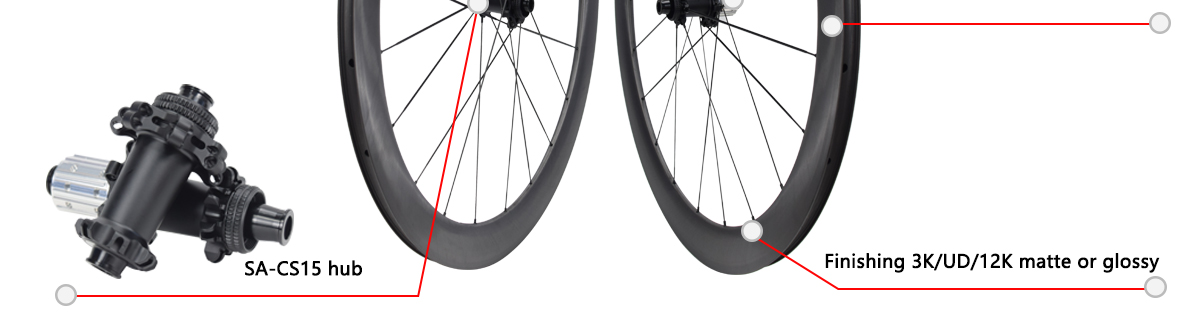

Premium Carbon Fiber Bicycle Wheel Set

Key Features

Hub & Freehub: Equipped with the SA-CS15 hub + 36T Ratchet Freehub System, ensuring smooth power transfer and reliable engagement for efficient pedaling.
Carbon Spokes: 3.5mm/5.2mm carbon spokes—blend lightweight design with exceptional strength, boosting ride stability while reducing overall wheel weight.
Drivetrain Compatibility: Supports Shimano 11/12-speed or Sram 12-speed XDR systems, fitting most modern drivetrain setups.
Customizable Rim: Available in 26mm/28mm/30mm/36mm width carbon rims—choose the perfect profile for climbing, sprinting, or all-terrain adaptability.
Finishing: Multiple surface finishes (3K/UD/matte or glossy, UD paintless)—match the wheelset to your bike’s aesthetic.

INTRODUCTION

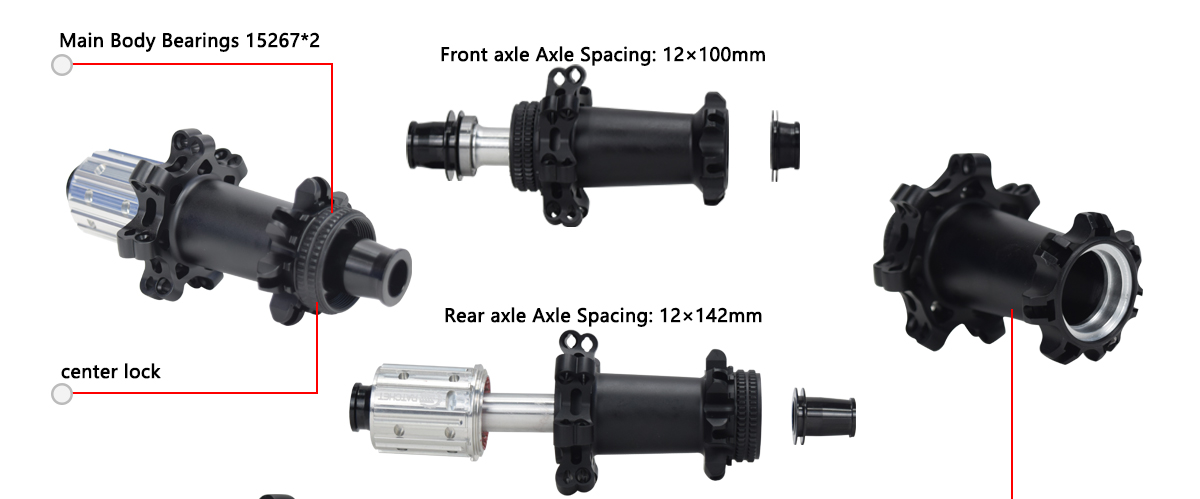

SA-CS15 Center-Lock Hub

High-performance aluminum alloy hubs designed for cycling enthusiasts, featuring reliable components and precise specifications.

Sturdy Long-Lasting 36T Hub

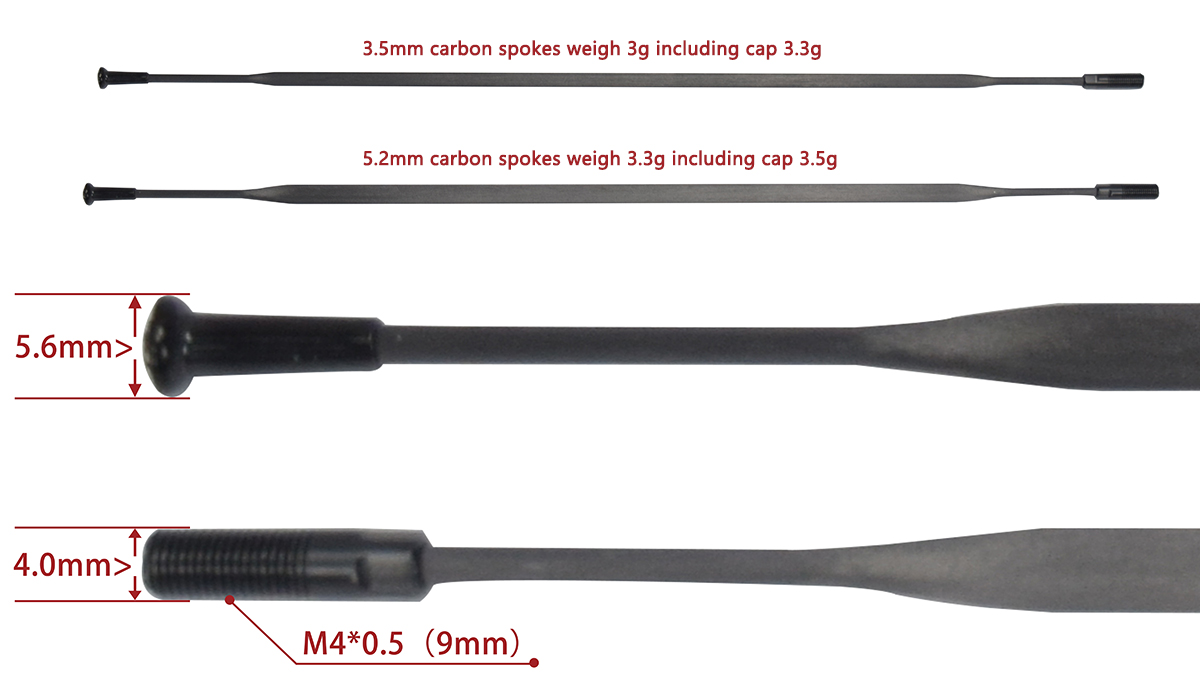

3.5mm or 5.2mm carbon spokes

High-Performance Carbon Fiber Bicycle Spokes – Lightweight Wheel Upgrade Components

Carbon spoke 3.5mm or 5.2mm

SPECIFICATION

SA-CS15 carbon spoke bike wheelset

⇒Road carbon wheels with 26mm wide rim (19mm inner wide)

Model	Depth	External Width	Rim Type	Front Size	Rear Size	Spoke	Holes	Weight(+/-3%)
SA30CT-26	30mm	26mm	Tubeless	12*100mm	12*142mm	3.5/5.2mm carbon spoke	21H/21H(2:1)	1242.6g(3.5mm spoke)
SA38CT-26	38mm	26mm	Tubeless	12*100mm	12*142mm	3.5/5.2mm carbon spoke	21H/21H(2:1)	1302.6g(3.5mm spoke)
SA45CT-26	45mm	26mm	Tubeless	12*100mm	12*142mm	3.5/5.2mm carbon spoke	21H/21H(2:1)	1332.6g(3.5mm spoke)
SA50CT-26	50mm	26mm	Tubeless	12*100mm	12*142mm	3.5/5.2mm carbon spoke	21H/21H(2:1)	1372.6g(3.5mm spoke)
SA60CT-26	60mm	26mm	Tubeless	12*100mm	12*142mm	3.5/5.2mm carbon spoke	21H/21H(2:1)	1452.6g(3.5mm spoke)

Road disc brake carbon rim 26mm wide:

Rim	SA30CT-26	SA38CT-26	SA45CT-26	SA50CT-26	SA60CT-26
Rim weight	395g±15g	425g±15g	440g±15g	460g±15g	530g±15g
ERD	580mm	564mm	550mm	540mm	520mm
Rim finishing	3K/UD/marble/UD paintless	3K/UD/marble/UD paintless	3K/UD/marble/UD paintless	3K/UD/marble/UD paintless	3K/UD/marble/UD paintless
Sectional Drawing

⇒Road disc brake carbon wheel build with 28mm outer wide rim (21mm inner wide):

Model	Deep	Outer wide	Rim type	Front size	Rear Size	Spoke	Holes	Weight (+/-3%)
SA30CT-28	30mm	28mm	Tubeless	12*100mm	12*142mm	3.5/5.2mm carbon spoke	21H/21H(2:1)	1252.6g(3.5mm spoke)
SA35CT-28	35mm	28mm	Tubeless	12*100mm	12*142mm	3.5/5.2mm carbon spoke	21H/21H(2:1)	1282.6g(3.5mm spoke)
SA40CT-28	40mm	28mm	Tubeless	12*100mm	12*142mm	3.5/5.2mm carbon spoke	21H/21H(2:1)	1303.6g(3.5mm spoke)
SA45CT-28	45mm	28mm	Tubeless	12*100mm	12*142mm	3.5/5.2mm carbon spoke	21H/21H(2:1)	1372.6g(3.5mm spoke)
SA50CT-28	50mm	28mm	Tubeless	12*100mm	12*142mm	3.5/5.2mm carbon spoke	21H/21H(2:1)	1392.6g(3.5mm spoke)
SA55CT-28	55mm	28mm	Tubeless	12*100mm	12*142mm	3.5/5.2mm carbon spoke	21H/21H(2:1)	1482.6g(3.5mm spoke)
SA60CT-28	60mm	28mm	Tubeless	12*100mm	12*142mm	3.5/5.2mm carbon spoke	21H/21H(2:1)	1552.6g(3.5mm spoke)

700C road disc brake carbon rim 28mm width specs:

Rim	SA30CT-28	SA35CT-28	SA40CT-28	SA45CT-28
Rim Weight	400g±15g	415g±15g	425g±15g	460g±15g
ERD	580mm	570mm	560mm	550mm
Surface Texture	3K/UD/marble/UD paintless	3K/UD/marble/UD paintless	3K/UD/marble/UD paintless	3K/UD/marble/UD paintless
Sectional Drawing

Rim	SA50CT-28	SA55CT-28	SA60CT-28
Rim Weight	470g±15g	515g±15g	535g±15g
ERD	540mm	530mm	520mm
Surface Texture	3K/UD/marble/UD paintless	3K/UD/marble/UD paintless	3K/UD/marble/UD paintless
Sectional Drawing

⇒Road disc brake carbon wheel build with 30mm outer wide rim (24mm inner wide):

Model	Deep	Outer Wide	Rim type	Front size	Rear size	Spoke	Holes	Weight(+/-3%)
SA30CT-30	30mm	30mm	Tubeless	12*100mm	12*142mm	3.5/5.2mm carbon spoke	21H/21H(2:1)	1272.6g(3.5mm spoke)
SA35CT-30	35mm	35mm	Tubeless	12*100mm	12*142mm	3.5/5.2mm carbon spoke	21H/21H(2:1)	1302.6g(3.5mm spoke)
SA40CT-30	40mm	40mm	Tubeless	12*100mm	12*142mm	3.5/5.2mm carbon spoke	21H/21H(2:1)	1342.6g(3.5mm spoke)
SA45CT-30	45mm	45mm	Tubeless	12*100mm	12*142mm	3.5/5.2mm carbon spoke	21H/21H(2:1)	1372.6g(3.5mm spoke)

700C disc brake carbon road rims 30mm width specs:

Rim	SA30CT-30	SA35CT-30	SA40CT-30	SA45CT-30
Rim Weight	410g±15g	425g±15g	445g±15g	460g±15g
ERD	580mm	570mm	560mm	550mm
Surface Texture	3K/UD/marble/UD paintless	3K/UD/marble/UD paintless	3K/UD/marble/UD paintless	3K/UD/marble/UD paintless
Sectional Drawing

⇒Road disc brake carbon wheel build with 36mm outer wide rim (30mm inner wide):

Model	Deep	Outer wide	Rim type	Front Size	Rear Size	Spoke	Holes	Weight(+/-3%)
SA30CT-36	30mm	36mm	Tubeless	12*100mm	12*142mm	3.5/5.2mm carbon spoke	21H/21H(2:1)	1292.6g(3.5mm spoke)
SA35CT-36	35mm	36mm	Tubeless	12*100mm	12*142mm	3.5/5.2mm carbon spoke	21H/21H(2:1)	1322.6g(3.5mm spoke)
SA40CT-36	40mm	36mm	Tubeless	12*100mm	12*142mm	3.5/5.2mm carbon spoke	21H/21H(2:1)	1342.6g(3.5mm spoke)
SA45CT-36	45mm	36mm	Tubeless	12*100mm	12*142mm	3.5/5.2mm carbon spoke	21H/21H(2:1)	1352.6g(3.5mm spoke)
SA50CT-36	50mm	36mm	Tubeless	12*100mm	12*142mm	3.5/5.2mm carbon spoke	21H/21H(2:1)	1432.6g(3.5mm spoke)

700C disc-brake carbon road rims 36mm width specs:

Rim	SA30CT-36	SA35CT-36	SA40CT-36	SA45CT-36	SA50CT-36
Rim Weight	420g±15g	435g±15g	440g±15g	450g±15g	490g±15g
ERD	580mm	570mm	560mm	550mm	550mm
Surface Texture	3K/UD/marble/UD paintless	3K/UD/marble/UD paintless	3K/UD/marble/UD paintless	3K/UD/marble/UD paintless	3K/UD/marble/UD paintless
Sectional Drawing
