UD Full Carbon Suspension E-Bike Frame SA-E20

Sakya Carbon UD carbon full suspension E-Bike frame SA-E20

SA-E20 full carbon E-MTB frame adopts UD carbon fiber, weighing only 2400g±40g. It perfectly fits BAFANG M820 motor, with 170mm front travel and 150-180mm adjustable rear travel, matching a 205mm rear shock. Equipped with 52mm headset, 148*12 thru axle and 180mm disc brake mount, it supports 29×2.6” or 27.5×2.8” tires. Featuring unique Innegra fiber damping system, it absorbs road vibration excellently. S/M/L sizes available, ideal for all-mountain off-road e-bike building.

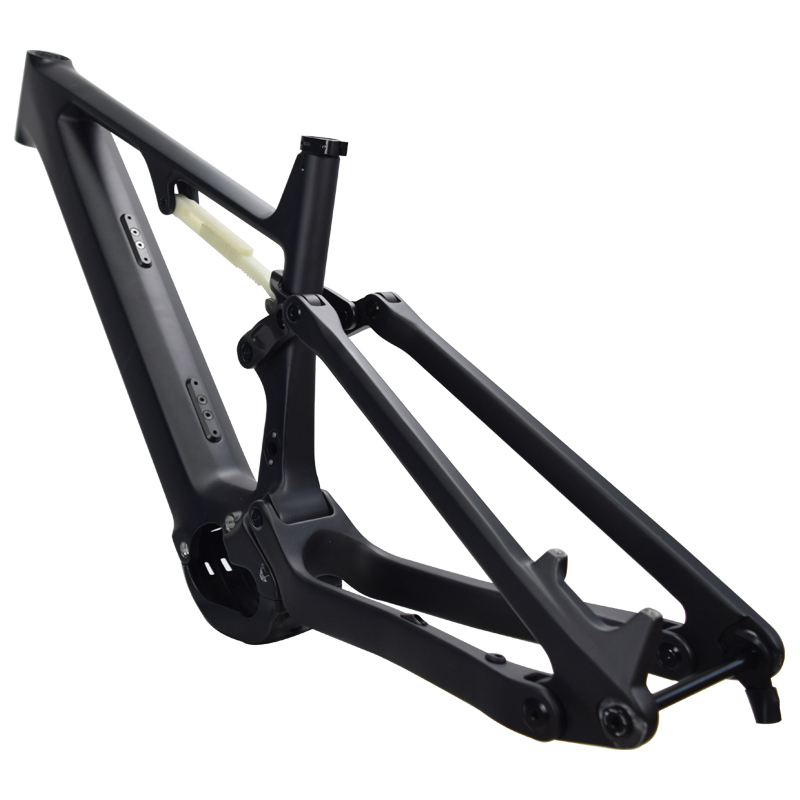

• Item Model: SA-E20, 29-inch full suspension electric mountain bike

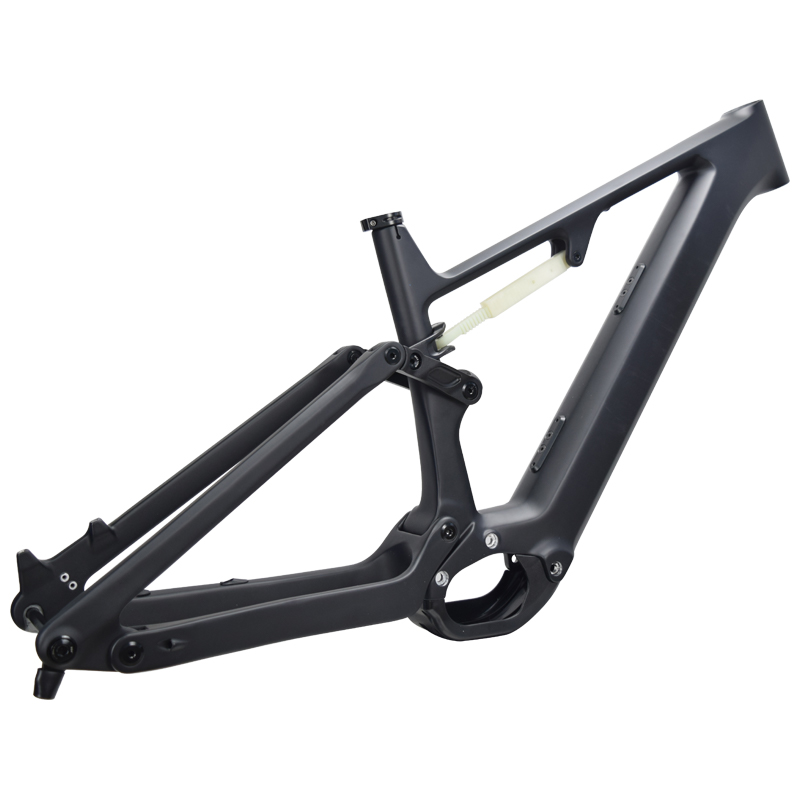

• Frame Craft: Made of full UD unidirectional carbon fiber; frame weight 2400g±40g, original 17-inch size, S/M/L full sizes available
• Head Tube Spec: Upper headset and lower headset both adopt 52mm specification

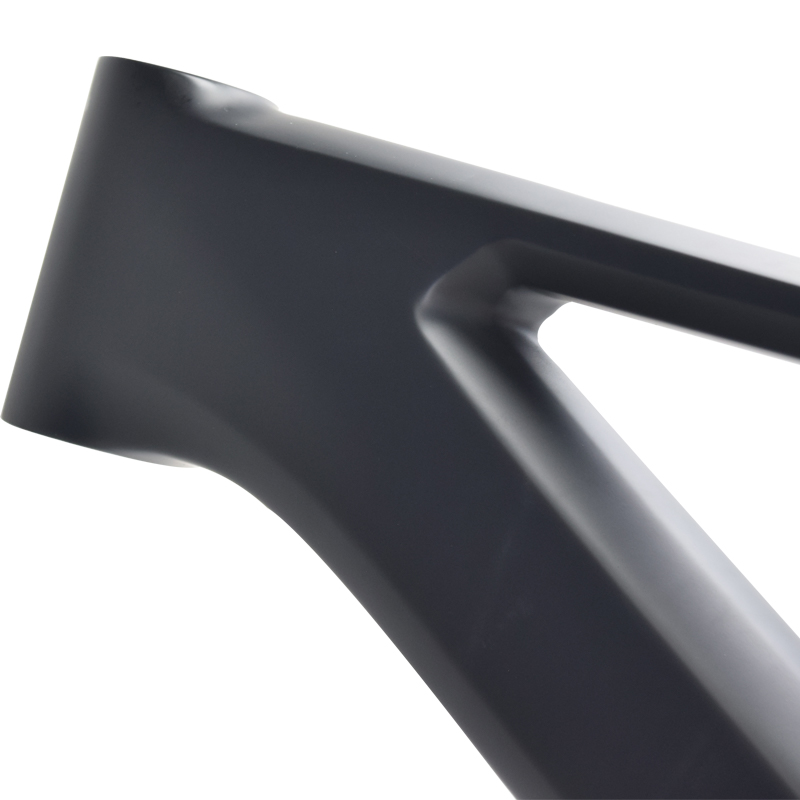

• Power Matching: Perfectly compatible with BAFANG M820 mid-drive motor for powerful off-road assistance
• Suspension Configuration
  • Rear shock eye-to-eye length: 205mm, shock travel range: 57.5-65mm
  • Rear wheel travel: 150-180mm, front fork travel up to 170mm
• Wheel & Brake Structure

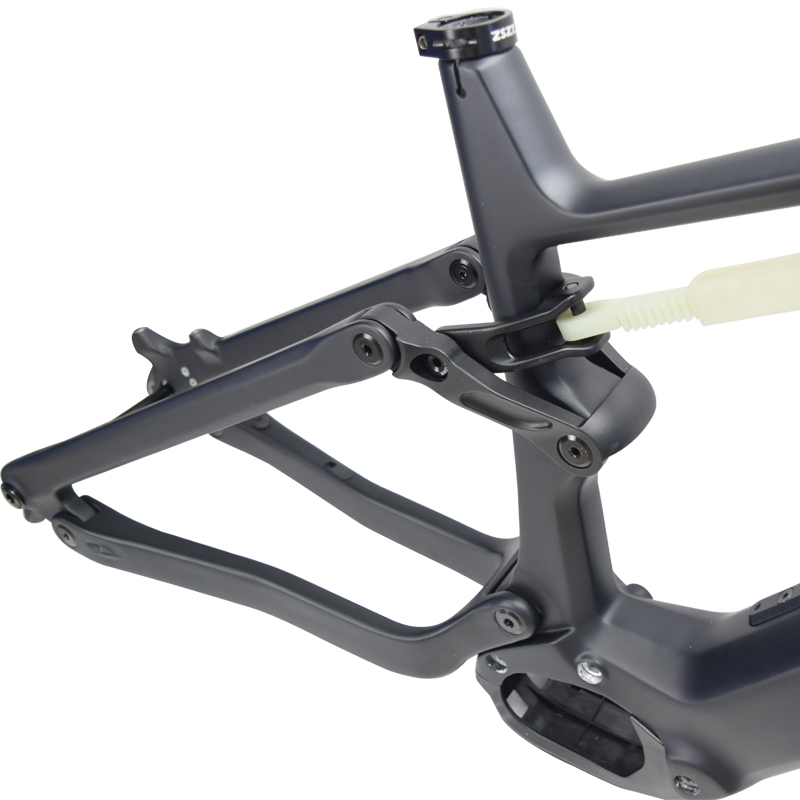

  • Rear hub: 148*12 thru axle standard
  • Support 180mm disc brake for reliable braking on downhill trails
• Tire Compatibility: Fits maximum 292.6" or 27.52.8" wide mountain tires

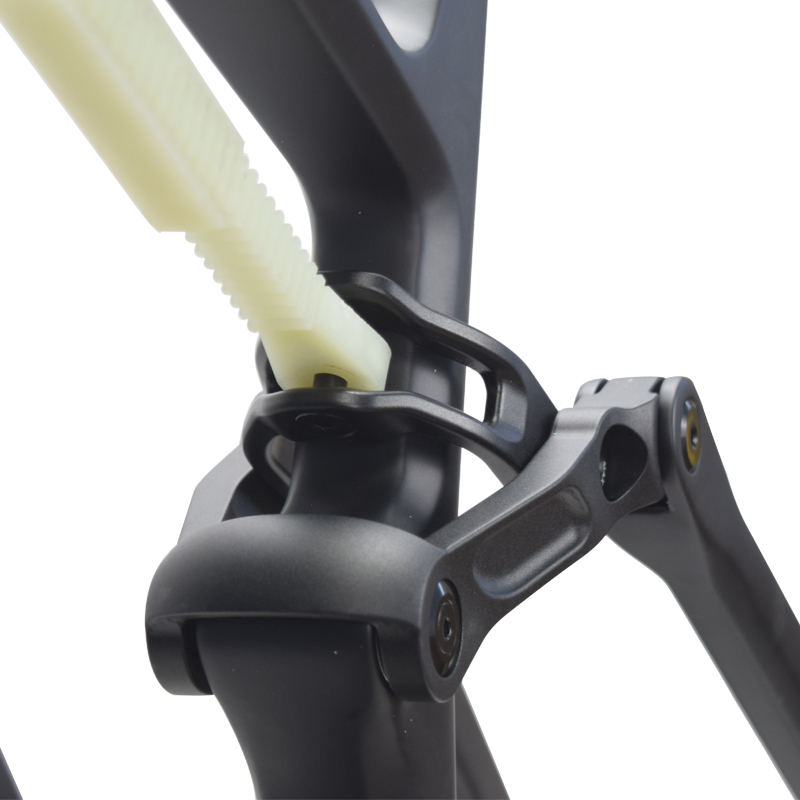

• Core Highlight: Equipped with exclusive Innegra fiber integrated damping system, better shock absorption and impact resistance
