Road Rim Brake Wheelset

Home WHEELSET Road Rim Brake Wheelset

700c Carbon Fiber Road Bike Wheelset Lightweight Rim Brake Wheels R13

Lightweight 700c Carbon Rim Brake Wheelset

Ultra Lightweight 700c Carbon Road Wheelset Rim Brake

700c Carbon Fiber Road Bike Wheelset Lightweight Rim Brake Wheels R13

Available in 25/26/28/30/36mm widths, fits 700C*25-45C tires for all-road adaptability.
296g lightweight hub optimized for Shimano 11/12-speed systems, ensuring smooth power transfer.
Aerodynamic, high-strength spokes enhance stiffness and wind-cutting efficiency.
Choose from 3K/UD/12K weave with matte or glossy surface for a personalized look.
2 years warranty
If you require a lighter and better configuration, please contact us for an upgrade

Item No :
SA-R13 road carbon rim brake wheelset
Payment :
Paypal, Bank Transfer
Product Origin :
China
Color :
3K/12K/UD,matte or glossy

Inquiry Now

Lightweight Aero Carbon Wheelset 700C for Road Bicycles R13

◊Why Choose Our Wheelset?

This carbon fiber wheelset combines aerodynamic design, lightweight construction, and robust components to deliver a noticeable upgrade in speed and handling. Whether you’re tackling climbs or sprinting on flats, it’s built to enhance every ride.

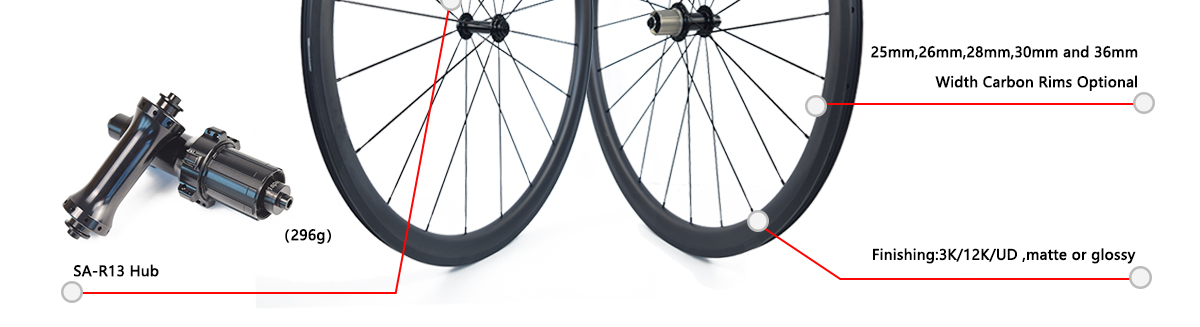

SA-R13 wheelset

Road Bike 700c Carbon Wheelset Rim Brake

♦Key features⇓

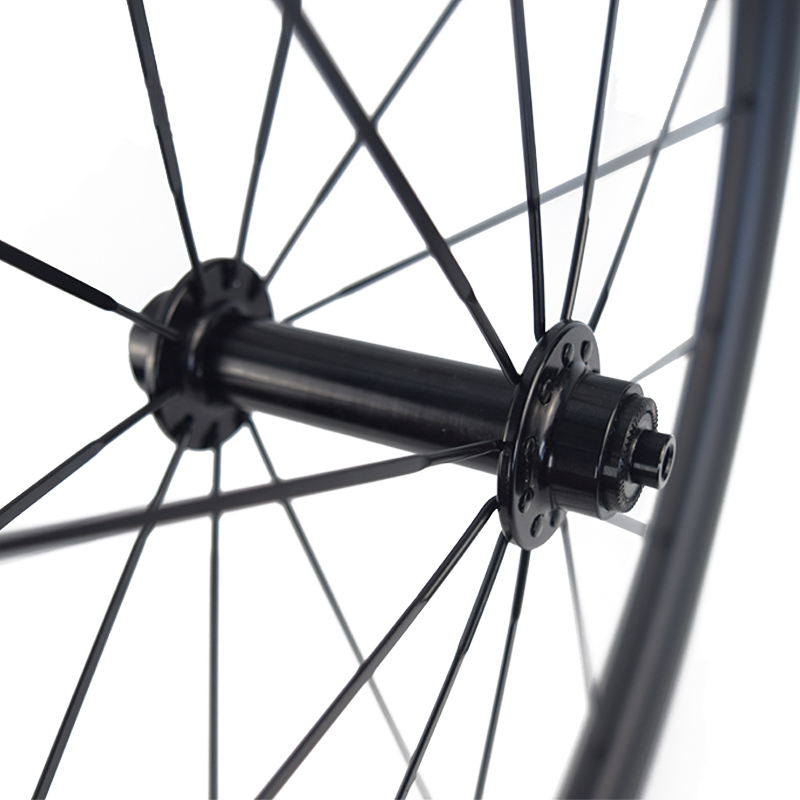

• 4-Pawl Free Hub & SA-R13 Hub

Equipped with a 4-pawl free hub design and lightweight SA-R13 hub (just 296g), delivering instant power transfer and reliable engagement for responsive acceleration.

• SA-1423 Aero & Strong Spokes

Aerodynamic SA-1423 spokes reduce wind resistance while maintaining exceptional rigidity, ensuring efficient power transfer and stable handling at high speeds.

• Shimano 11/12 Speed Compatibility

Fully compatible with Shimano 11/12-speed drivetrains, offering seamless shifting performance for both training and competitive riding.

• Optimized Tire Fit

Designed to fit 700C*25-45C tires, balancing rolling efficiency and comfort for diverse road conditions.

• Premium Finish Options

Available in 3K, 12K, UD, matte, or glossy finishes, allowing you to personalize your wheelset to match your bike’s aesthetic.

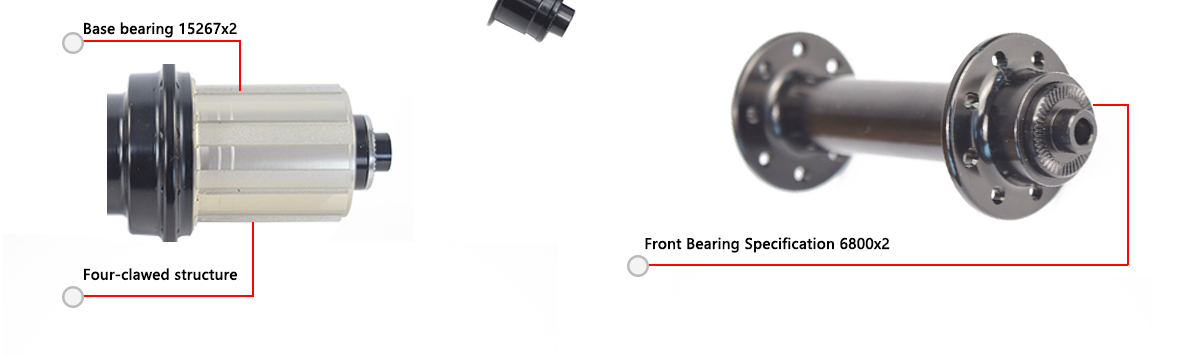

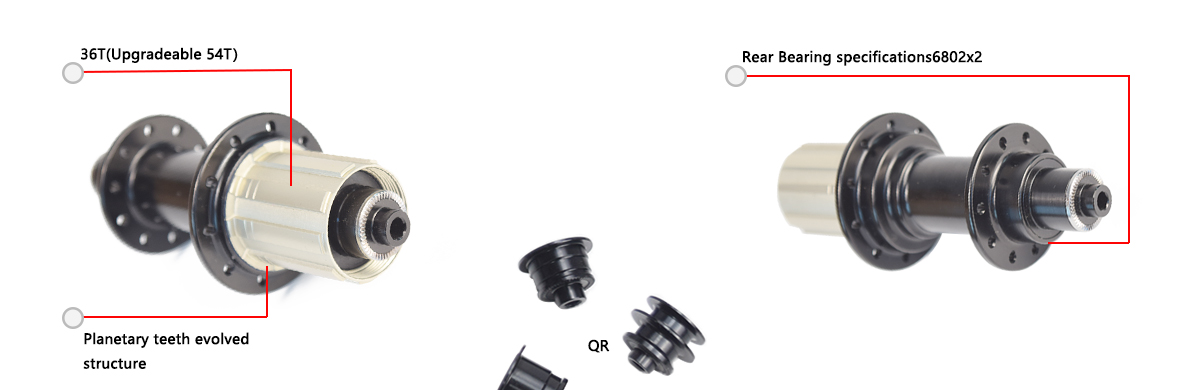

SA-R13 hub

Bicycle hub rim brake 4 pawls

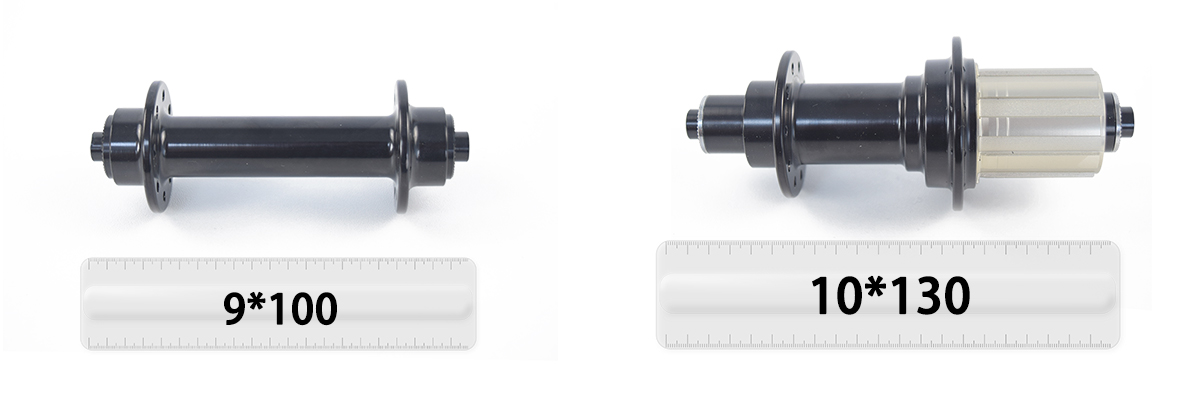

Straight pull hub

♦Key features⇓

• Four-Claw Freehub Design

The four-claw structure ensures stable, reliable engagement, reducing wear and extending hub lifespan.

• Premium Bearings

◦ Rear hubs: 6802x2 rear bearings + 15267x2 base bearings for low friction and long-lasting performance.

◦ Front hubs: 6800x2 bearings for smooth rotation and consistent handling.

• Multiple Sizing Options

Available in 9*100mm and 10*130mm axle specifications, compatible with most road and mountain bike frames.

• Quick-Release (QR) Ready

Includes QR accessories for fast wheel installation and removal, perfect for riders who need quick adjustments.

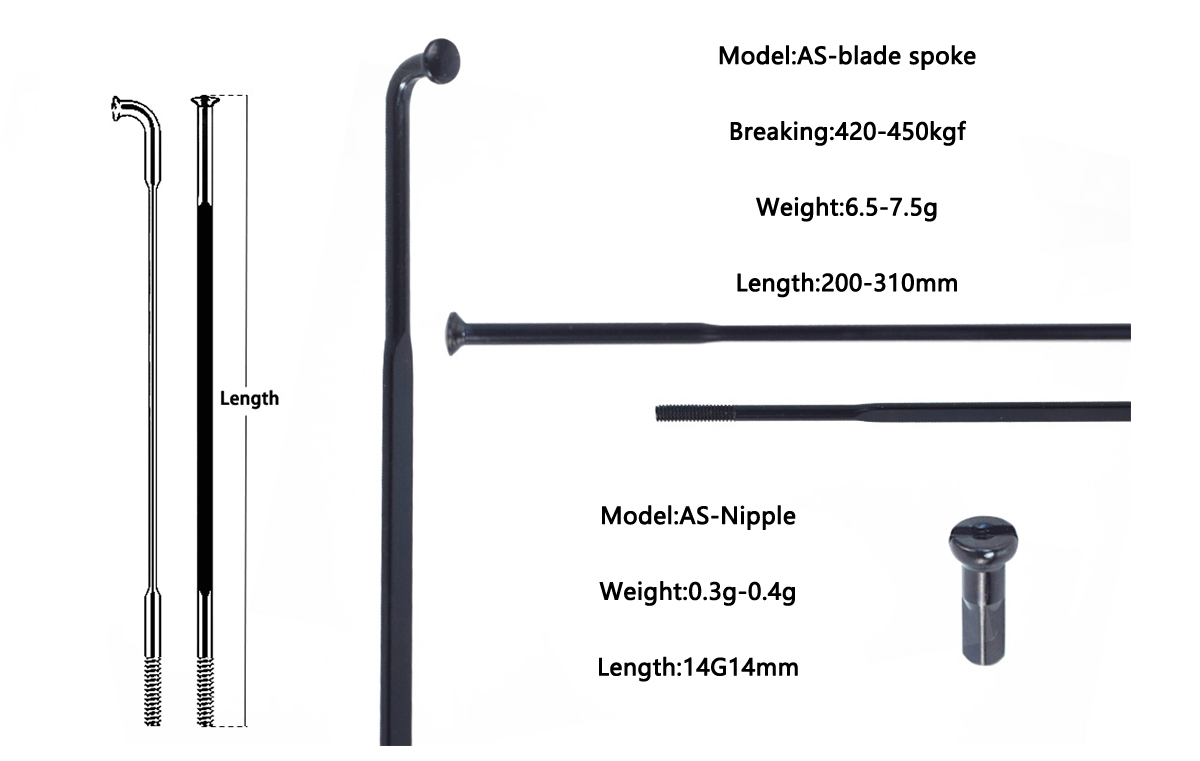

SA-1423 Spoke

SA-1423 spoke

♦Key features⇓

AS-blade spoke: 420-450kgf breaking strength, 6.5-7.5g lightweight, 200-310mm length
AS-nipple: 0.3-0.4g ultra-light, 14G×14mm precision fit
Aerodynamic blade design for reduced wind resistance
High tensile resistance for durable bicycle wheel performance
Perfectly matched set for seamless wheel building/replacement

SPECIFICATION

SA-R13 rim brake carbon wheelset

⇒Road disc brake carbon wheels with 26mm wide rim (19mm inner wide): (28mm/30mm/36mm wide is available too)

Model	Depth	External Width	Rim Type	Hub	Front Size	Rear Size	Spoke	Holes	Weight(+/-3%)
SA30CT-26	30mm	26mm	Tubeless	SA-R13	9*100mm	10*130mm	SA-1423	20H/24H	1394g
SA38CT-26	38mm	26mm	Tubeless	SA-R13	9*100mm	10*130mm	SA-1423	20H/24H	1454g
SA45CT-26	45mm	26mm	Tubeless	SA-R13	9*100mm	10*130mm	SA-1423	20H/24H	1484g
SA50CT-26	50mm	26mm	Tubeless	SA-R13	9*100mm	10*130mm	SA-1423	20H/24H	1524g
SA60CT-26	60mm	26mm	Tubeless	SA-R13	9*100mm	10*130mm	SA-1423	20H/24H	1664g

Road disc brake carbon rim 26mm wide:

Rim	SA30CT-26	SA38CT-26	SA45CT-26	SA50CT-26	SA60CT-26
Rim Weight	395g±15g	425g±15g	440g±15g	460g±15g	530g±15g
ERD	580mm	564mm	550mm	540mm	520mm
Sectional Drawing

⇒Road disc brake carbon wheels with 28mm wide rim (21mm inner wide):

Model	Depth	Exteral Width	Tire Type	Hub	Front Size	Rear Size	Spoke	Holes	Weight(+/-3%)
SA30CT-28	30mm	28mm	Tubeless	SA-R13	9*100mm	10*130mm	SA-1423	20H/24H	1404g
SA35CT-28	35mm	28mm	Tubeless	SA-R13	9*100mm	10*130mm	SA-1423	20H/24H	1434g
SA40CT-28	40mm	28mm	Tubeless	SA-R13	9*100mm	10*130mm	SA-1423	20H/24H	1454g
SA45CT-28	45mm	28mm	Tubeless	SA-R13	9*100mm	10*130mm	SA-1423	20H/24H	1524g
SA50CT-28	50mm	28mm	Tubeless	SA-R13	9*100mm	10*130mm	SA-1423	20H/24H	1544g
SA55CT-28	55mm	28mm	Tubeless	SA-R13	9*100mm	10*130mm	SA-1423	20H/24H	1634g
SA60CT-28	60mm	28mm	Tubeless	SA-R13	9*100mm	10*130mm	SA-1423	20H/24H	1674g

Road disc brake carbon rim 28mm wide:

Rim	SA30CT-28	SA35CT-28	SA40CT-28	SA45CT-28
Rim Weight	400g±15g	415g±15g	425g±15g	460g±15g
ERD	580mm	570mm	560mm	550mm
Sectional Drawing
Rim	SA50CT-28	SA55CT-28	SA60CT-28
Rim Weight	470g±15g	515±15g	535g±15g
ERD	540mm	530mm	520mm
Sectional Drawing
