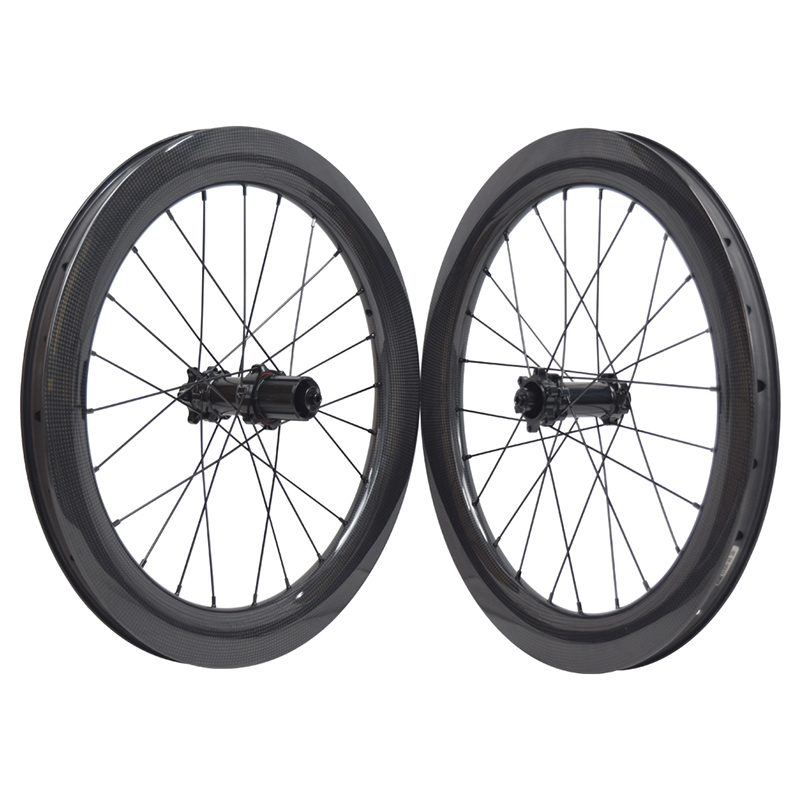

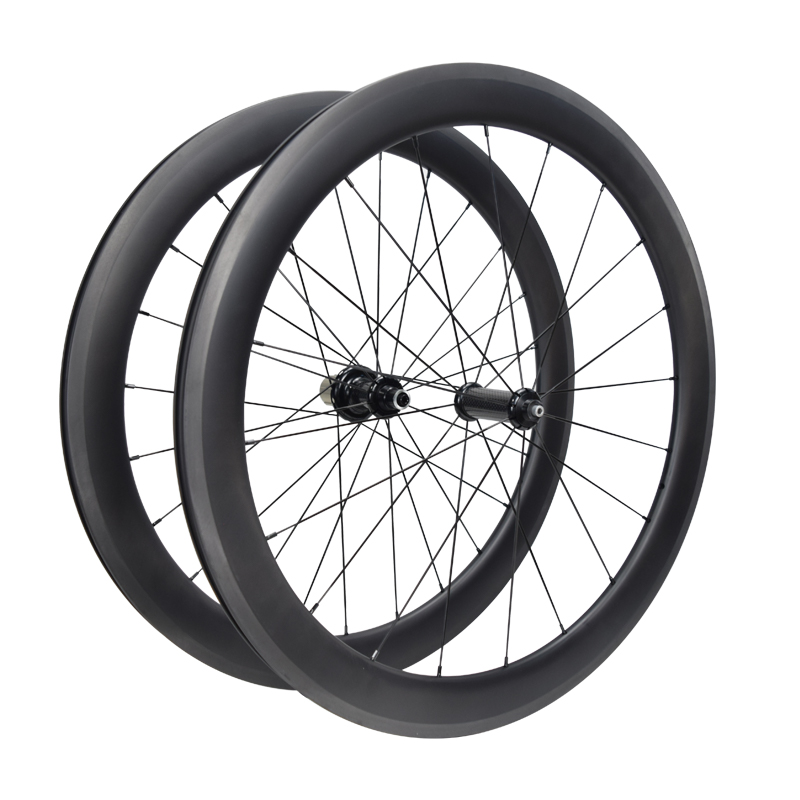

Sakya Carbon BMX Bike Wheelset Size 406 and 451 For Rim Brake SA-R13

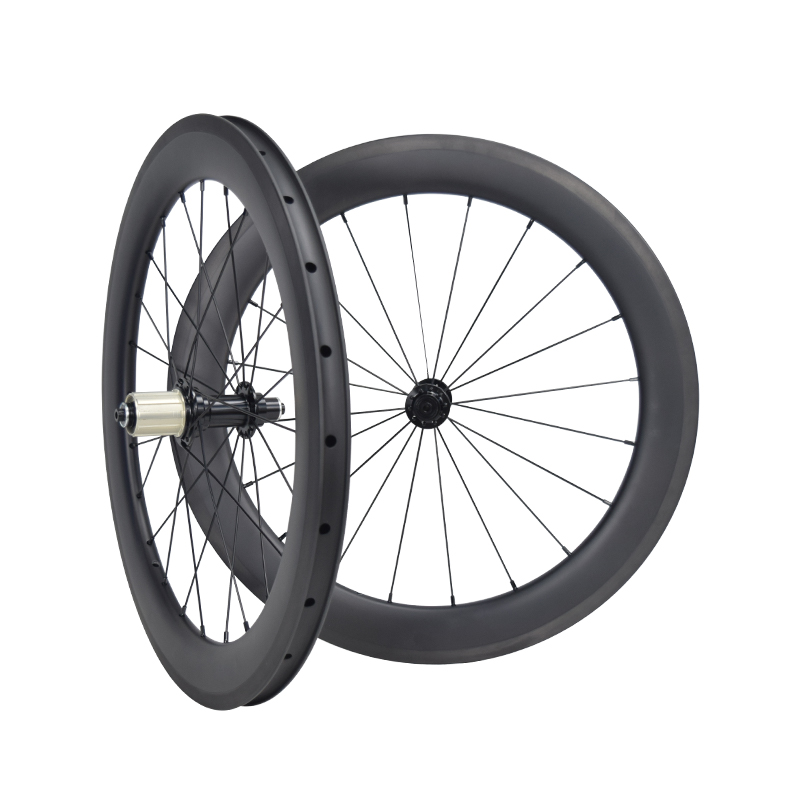

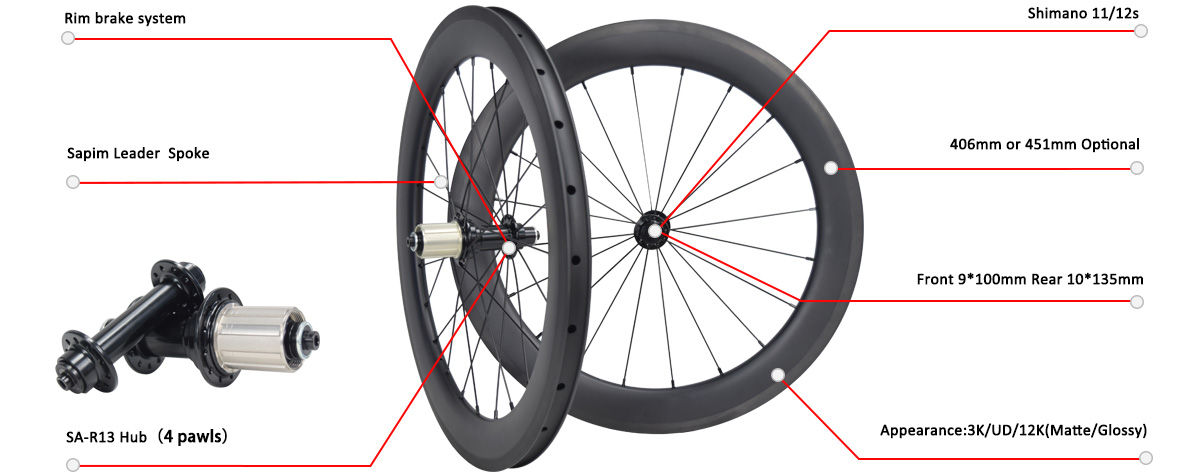

BMX Rim Brake Wheelset Dominate streets, parks, and dirt tracks with a wheelset engineered for BMX passion—where lightweight agility meets unshakable stopping power.

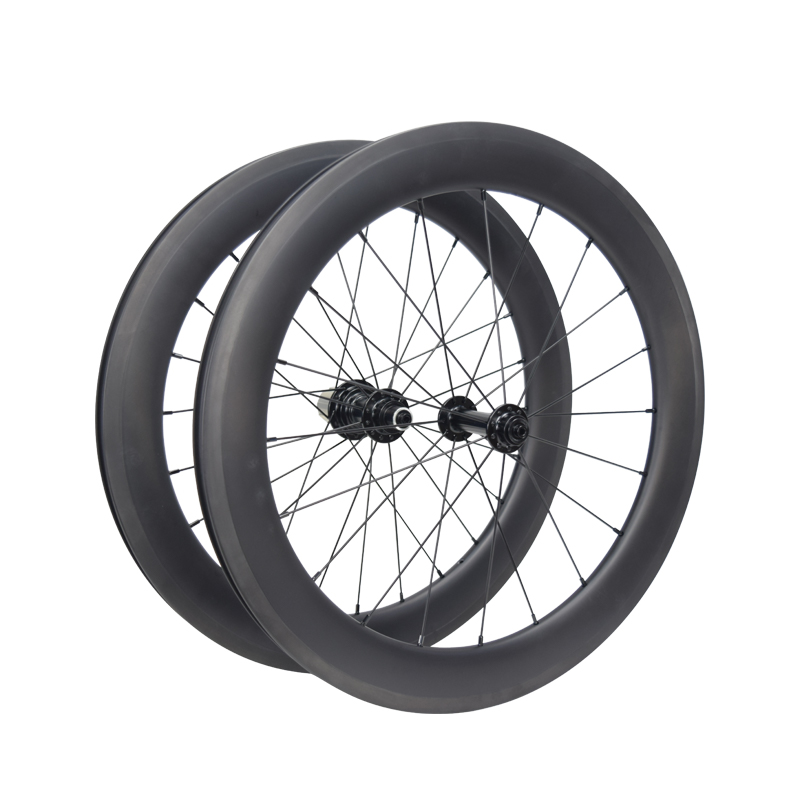

1). Size 406 or 451, matching different BMX models;

2). Sapim Leader spoke, featuring high-tension weaving technology and uniform tension tuning.

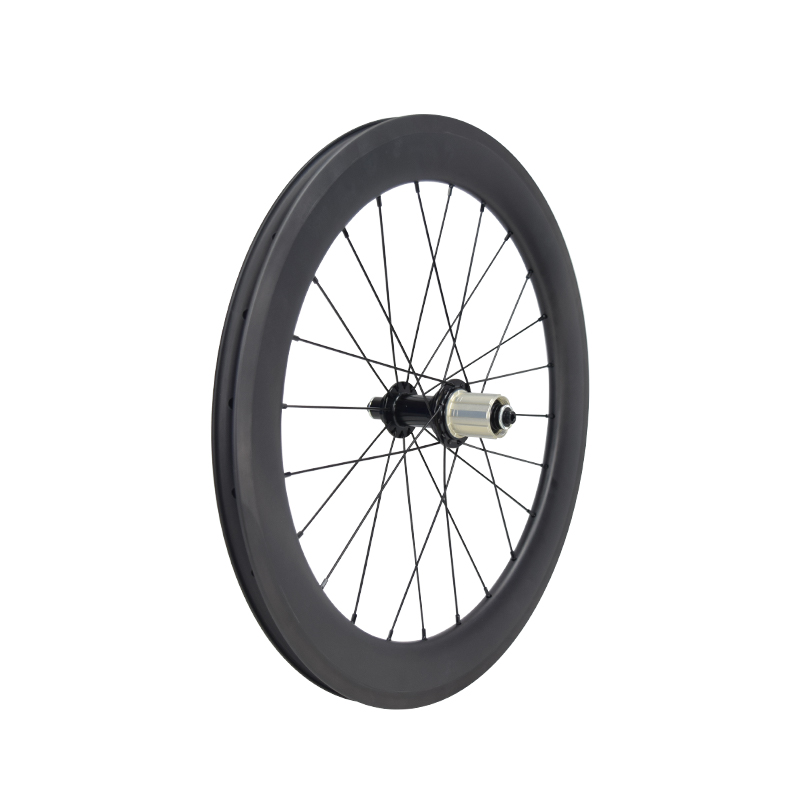

2). Hub Front 9*100mm / Rear 10*130mm, fitting most mainstream BMX frames;

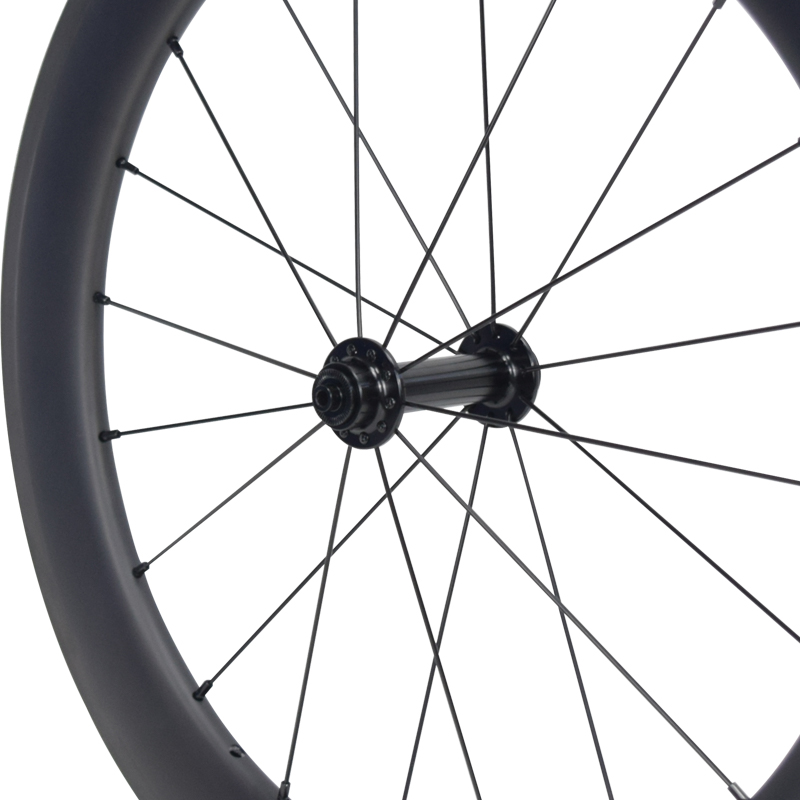

3). Supports Shimano 11/12-speed systems.

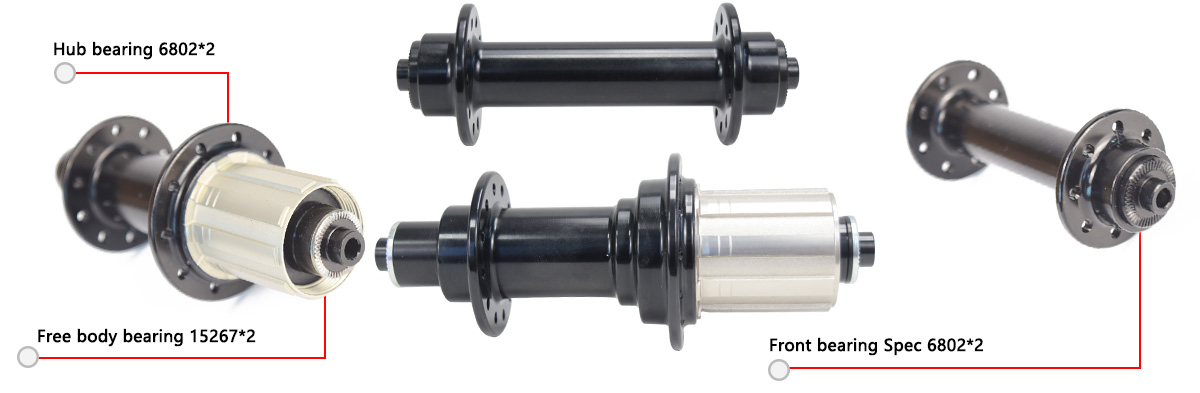

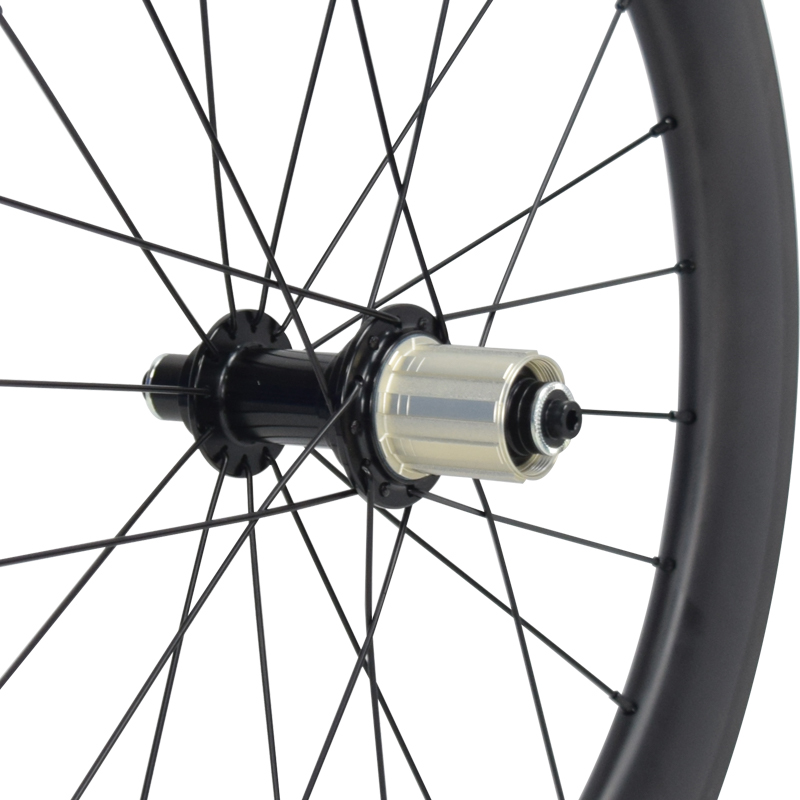

SA-R13 Rim Brake Hub

J-bend spokes, 4-pawl punch—this rim brake hub turns every pedal stroke into instant power. Lightweight aluminum build, precise bearing setup, and rim brake-ready reliability: dominate BMX parks, streets, and tracks with zero lag, maximum durability.

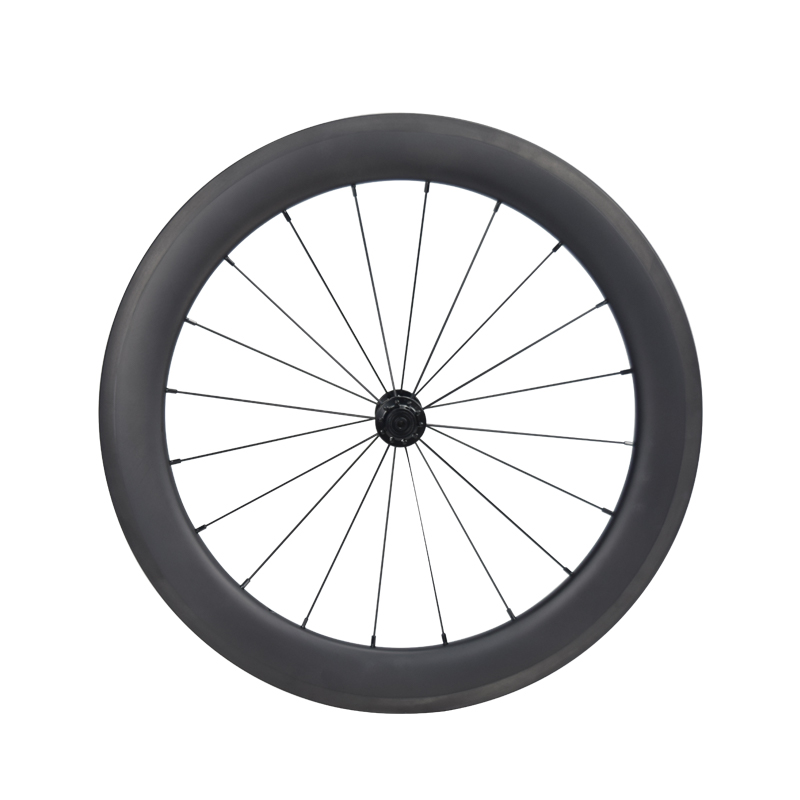

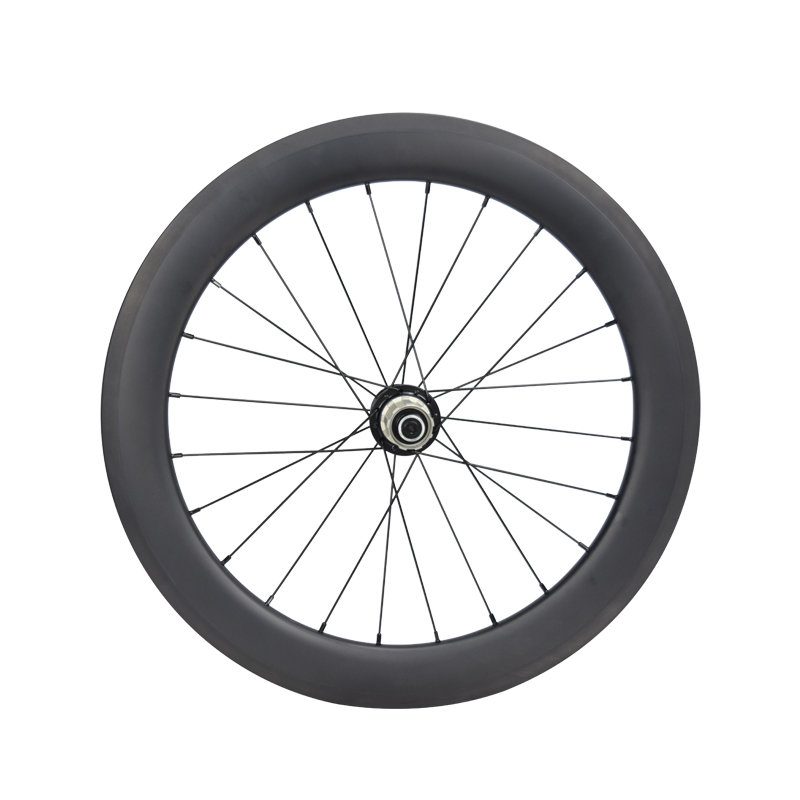

Sapim Leader Spoke

• Strength: 1080–1180 N/mm² (durable for daily loads)
• Material: Stainless
• Weight: ~6.7g/spoke (14G-2.0mm: 431g/64pcs×260mm)
• Sizes: 145–310mm length; diameters: 15G-1.8mm/14G-2.0mm/13G-2.3mm/12G-2.6mm
• Options: Black or Silver color

SA-RD03 BMX Bike Wheelset size 406/451 Rim

Model	SA-406-R13	SA-451-R13
Rim type	Tubeless	Clincher
Front size	9*100mm	9*100mm
Rear size	10*130mm	10*130mm
Holes	20H/24H	20H/24H
Weight(+/-3%)	1208g	1408g
ERD	333	367

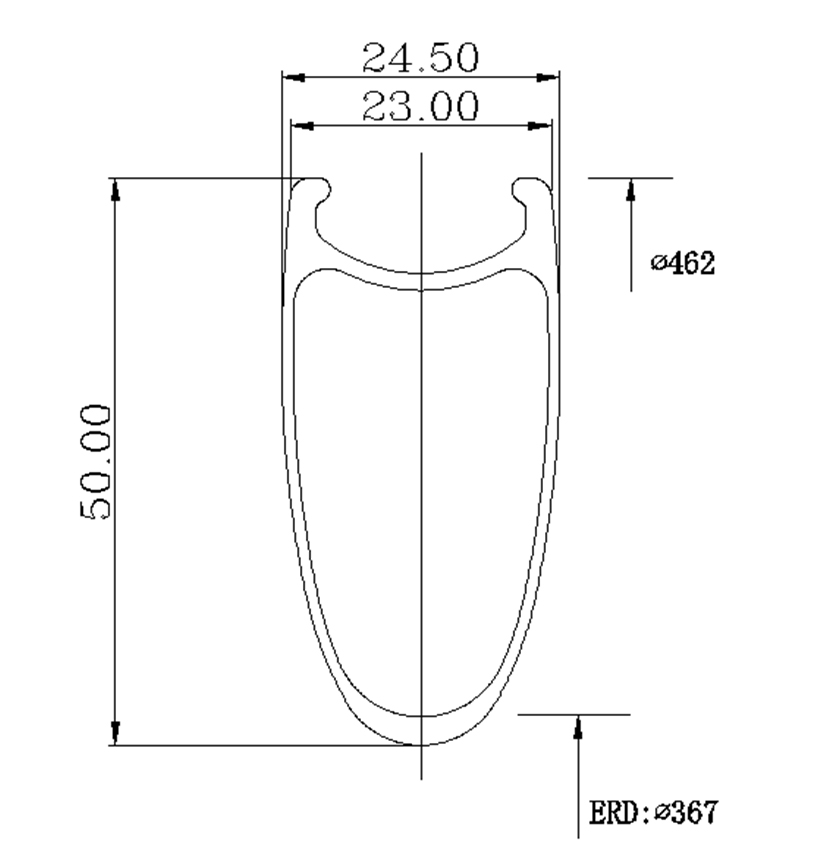

Sectional drawing
