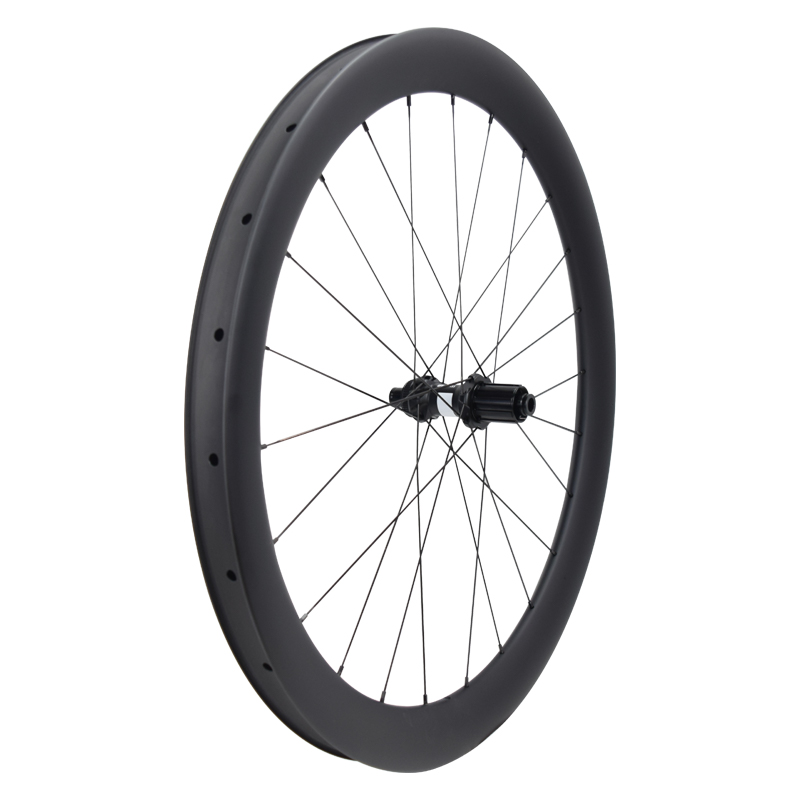

DT350 hub road bike disc brake carbon wheelset

DT350 hub road bike disc brake carbon wheelset

Tubeless rims ready
28mm, 30mm, 36mm external wide carbon rim
DT350 ratchet system 36T hub, Shimano HG 11/12s or SRAM XDR optional
Sapim cx-ray spokes
3K/UD/marble weave, matte or glossy finishing
2 years warranty

Item No :
DT-350 Wheel
Payment :
Paypal, Bank Transfer
Product Origin :
China
Color :
UD/3k/12K

Inquiry Now

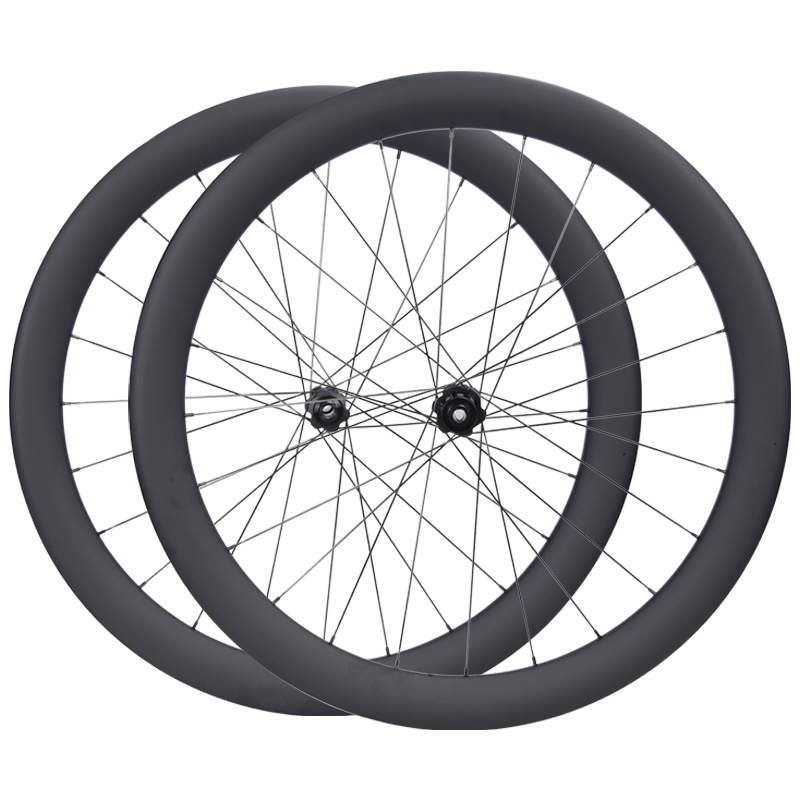

Sakya Carbon DT350 hub road bike disc brake carbon wheelset

The DT Swiss 350 Road Disc Brake Hubset is the go-to choice for performance-focused road riders, blending lightweight aluminum construction, DT’s legendary Ratchet EXP engagement, and disc-optimized rigidity for instant power transfer and confident braking. Sealed cartridge bearings ensure smooth, reliable performance in all conditions, while broad compatibility with axle standards, rotor types, and drivetrain systems makes it the ultimate foundation for building your dream road disc wheelset.

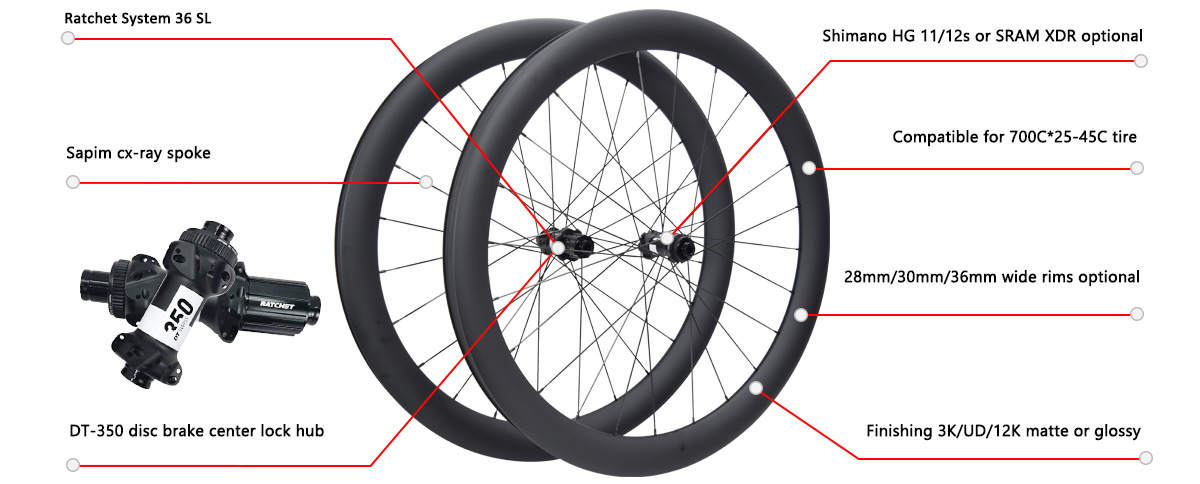

DT350 road bike disc brake carbon wheels

Features:

28mm, 30mm,36mm external wide carbon rim, Compatible with 700*25C-45C tires
3K/UD/marble weave, matte or glossy finishing (Customized Decal acceptable)
Spoke hole count: front 24-hole, rear 24-hole
Rim type: Tubeless
Sapim cx-ray spokes, Super rigidity and durability
Spoke breaking: 420-450kgf
Drive side tension: 135kgf
Max rider weight: 120kgf
If you require a lighter and better configuration for rim or spoke, please contact us for an upgrade

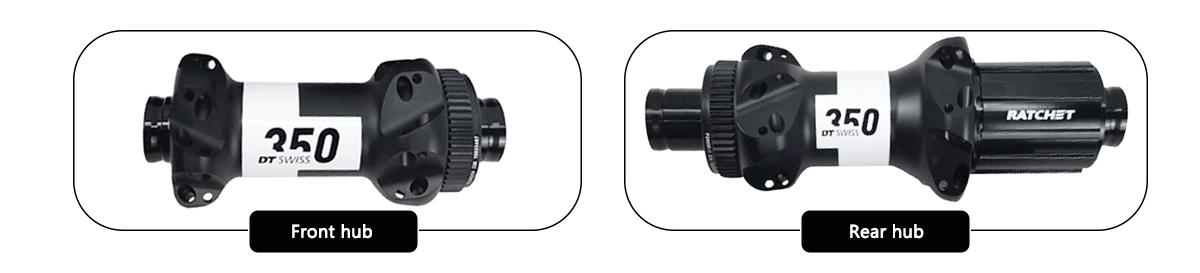

DT-350 ratchet

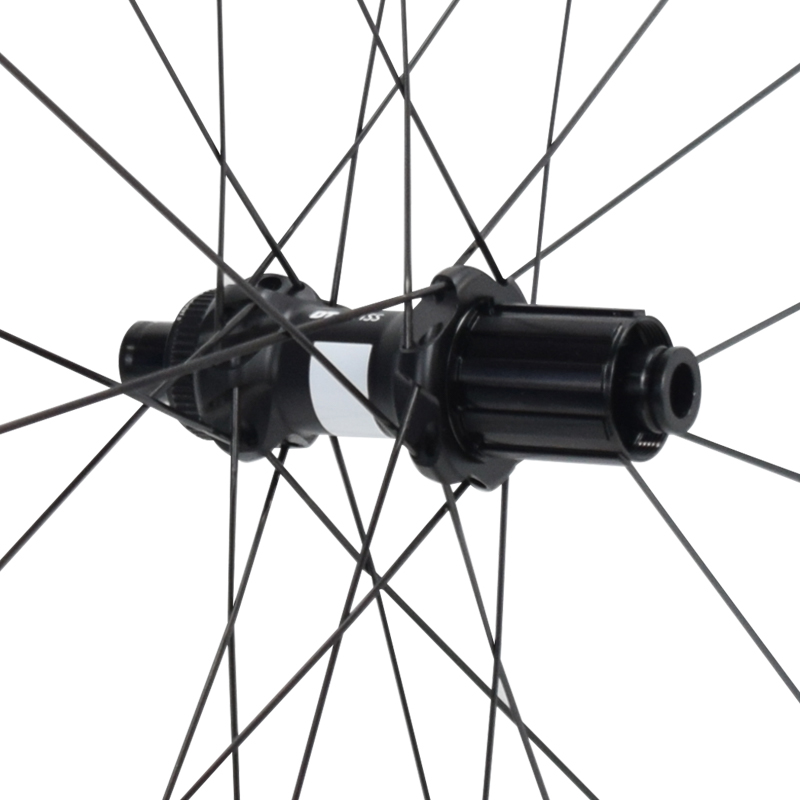

DT350 ratchet system 36T hub

Hub:

DT swiss 350 Road disc(front 12*100mm TA/rear 12*142mm TA)

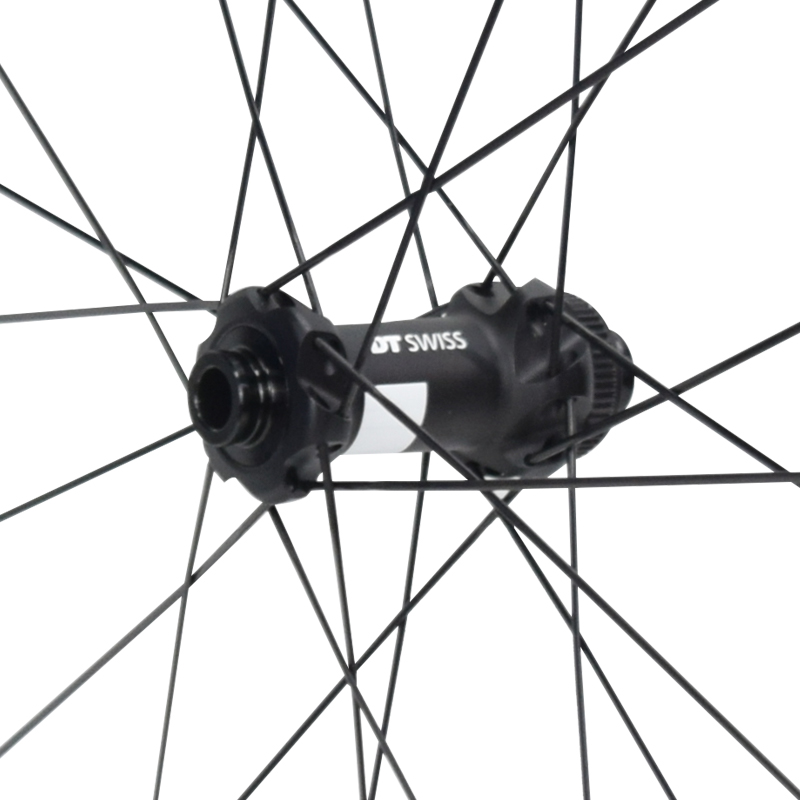

Disc brake type: center lock
Cassette Body: Shimano HG 11/12s or SRAM XDR optional
Freehub System: Ratchet System 36T
Spoke Hole Count: front 24H/rear 24H

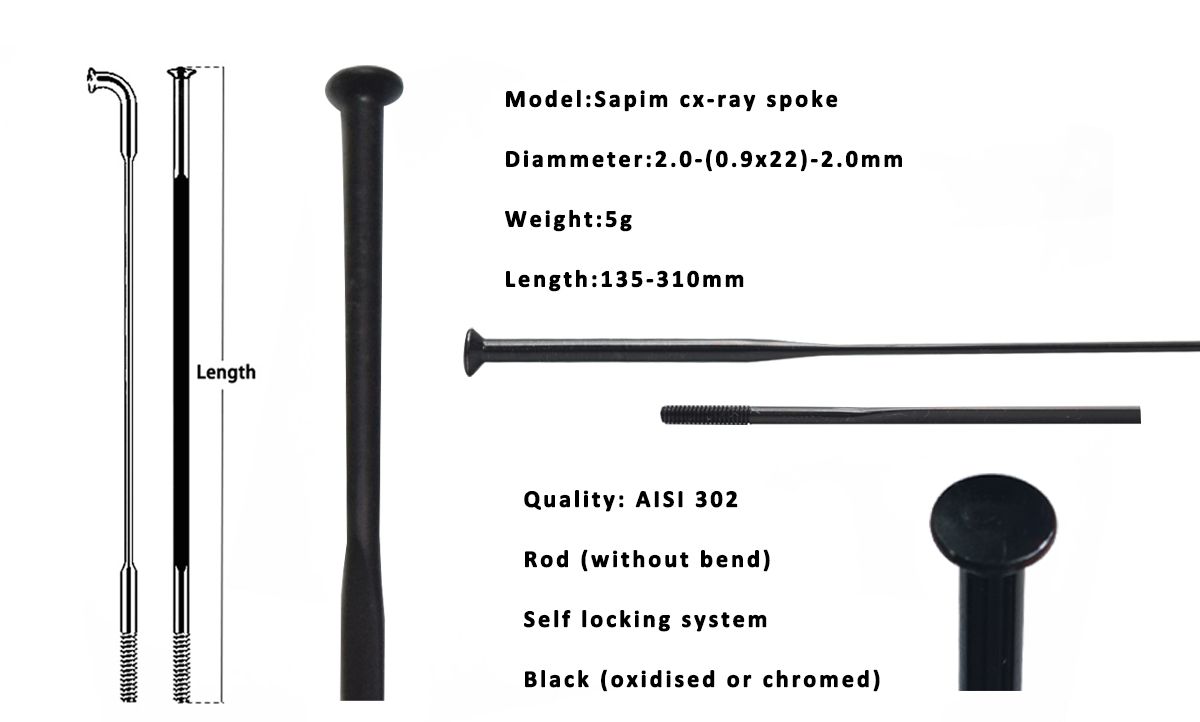

Sapim cx-ray spoke

Sapim cx-ray spokes, with their excellent aerodynamic performance and superior overall quality, have become the preferred spokes for many major bicycle wheel manufacturers, and are widely compatible with various types of bicycles, including road bikes and mountain bikes.

Aerodynamic Optimization: Spindle-shaped cross-section for ultimate wind breaking
Lightweight and Tough: 10% weight reduction, tensile strength exceeding 2000MPa
Precision Engineering and Durability: Patented anti-loosening spoke caps, compatible with multiple vehicle models

Sapim cx-ray spoke

SPECIFICAION

DT350 hub road bike disc brake carbon wheelset

⇒Road disc brake carbon wheel build with 28mm outer wide rim (21mm inner wide):

Model	Deep	Outer wide	Rim type	Front size	Rear Size	Spoke	Holes	Weight (+/-3%)
SA30CT-28	30mm	28mm	Tubeless	12*100mm	12*142mm	Sapim cx-ray	24H/24H	1499g
SA35CT-28	35mm	28mm	Tubeless	12*100mm	12*142mm	Sapim cx-ray	24H/24H	1529g
SA40CT-28	40mm	28mm	Tubeless	12*100mm	12*142mm	Sapim cx-ray	24H/24H	1549g
SA45CT-28	45mm	28mm	Tubeless	12*100mm	12*142mm	Sapim cx-ray	24H/24H	1579g
SA50CT-28	50mm	28mm	Tubeless	12*100mm	12*142mm	Sapim cx-ray	24H/24H	1639g
SA55CT-28	55mm	28mm	Tubeless	12*100mm	12*142mm	Sapim cx-ray	24H/24H	1729g
SA60CT-28	60mm	28mm	Tubeless	12*100mm	12*142mm	Sapim cx-ray	24H/24H	1769g

700C road disc brake carbon rim 28mm width specs:

Rim	SA30CT-28	SA35CT-28	SA40CT-28	SA45CT-28
Rim Weight	400g±15g	415g±15g	425g±15g	460g±15g
ERD	580mm	570mm	560mm	550mm
Surface Texture	3K/UD/marble/UD paintless	3K/UD/marble/UD paintless	3K/UD/marble/UD paintless	3K/UD/marble/UD paintless
Sectional Drawing
Rim	SA50CT-28	SA55CT-28	SA60CT-28
Rim Weight	470g±15g	515g±15g	535g±15g
ERD	540mm	530mm	520mm
Surface Texture	3K/UD/marble/UD paintless	3K/UD/marble/UD paintless	3K/UD/marble/UD paintless
Sectional Drawing

⇒Road disc brake carbon wheel build with 30mm outer wide rim (24mm inner wide):

Model	Deep	Outer Wide	Rim type	Front size	Rear size	Spoke	Holes	Weight(+/-3%)
SA30CT-30	30mm	30mm	Tubeless	12*100mm	12*142mm	Sapim cx-ray	24H/24H	1479g
SA35CT-30	35mm	30mm	Tubeless	12*100mm	12*142mm	Sapim cx-ray	24H/24H	1499g
SA40CT-30	40mm	30mm	Tubeless	12*100mm	12*142mm	Sapim cx-ray	24H/24H	1559g
SA45CT-30	45mm	30mm	Tubeless	12*100mm	12*142mm	Sapim cx-ray	24H/24H	1579g
SA50CT-30	50mm	30mm	Tubeless	12*100mm	12*142mm	Sapim cx-ray	24H/24H	1639g
SA60CT-30	60mm	30mm	Tubeless	12*100mm	12*142mm	Sapim cx-ray	24H/24H	1729g

700C disc brake carbon road rims 30mm width specs:

Rim	SA30CT-30	SA35CT-30	SA40CT-30	SA45CT-30	SA50CT-30	SA60CT-30
Rim Weight	410g±15g	425g±15g	445g±15g	460g±15g	470g±15g	515g±15g
ERD	580mm	570mm	560mm	550mm	540mm	530mm
Surface Texture	3K/UD/marble/UD paintless	3K/UD/marble/UD paintless	3K/UD/marble/UD paintless	3K/UD/marble/UD paintless	3K/UD/marble/UD paintless	3K/UD/marble/UD paintless
Sectional Drawing

⇒Road disc brake carbon wheel build with 36mm outer wide rim (30mm inner wide):

Model	Deep	Outer wide	Rim type	Front Size	Rear Size	Spoke	Holes	Weight(+/-3%)
SA30CT-36	30mm	36mm	Tubeless	12*100mm	12*142mm	Sapim cx-ray	24/24H	1539g
SA35CT-36	35mm	36mm	Tubeless	12*100mm	12*142mm	Sapim cx-ray	24/24H	1569g
SA40CT-36	40mm	36mm	Tubeless	12*100mm	12*142mm	Sapim cx-ray	24/24H	1589g
SA45CT-36	45mm	36mm	Tubeless	12*100mm	12*142mm	Sapim cx-ray	24/24H	1609g
SA50CT-36	50mm	36mm	Tubeless	12*100mm	12*142mm	Sapim cx-ray	24/24H	1679g

700C disc-brake carbon road rims 36mm width specs:

Rim	SA30CT-36	SA35CT-36	SA40CT-36	SA45CT-36	SA50CT-36
Rim Weight	420g±15g	435g±15g	440g±15g	450g±15g	490g±15g
ERD	580mm	570mm	560mm	550mm	550mm
Surface Texture	3K/UD/marble/UD paintless	3K/UD/marble/UD paintless	3K/UD/marble/UD paintless	3K/UD/marble/UD paintless	3K/UD/marble/UD paintless
Sectional Drawing
