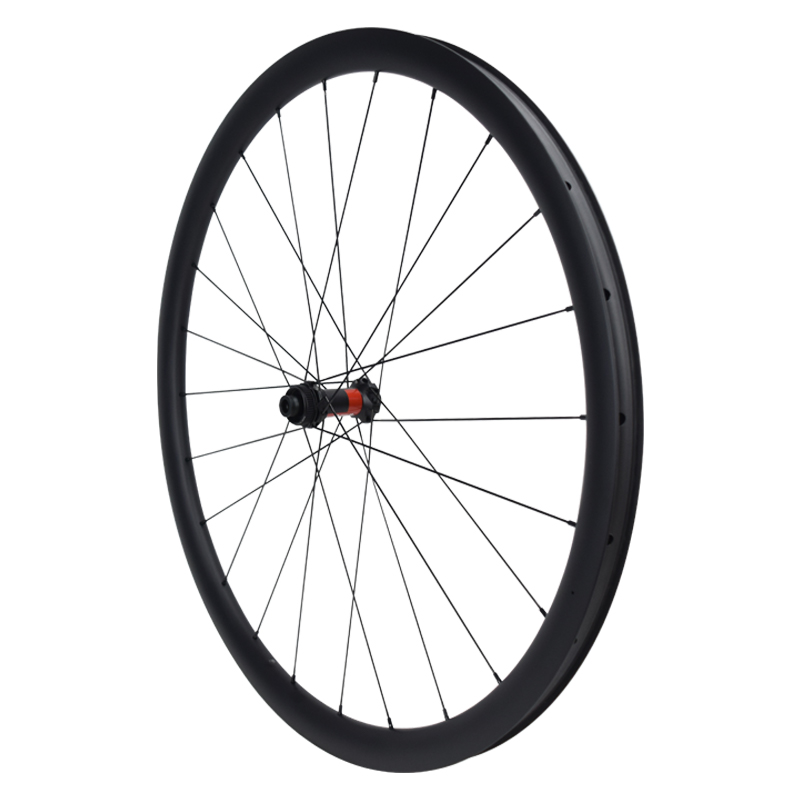

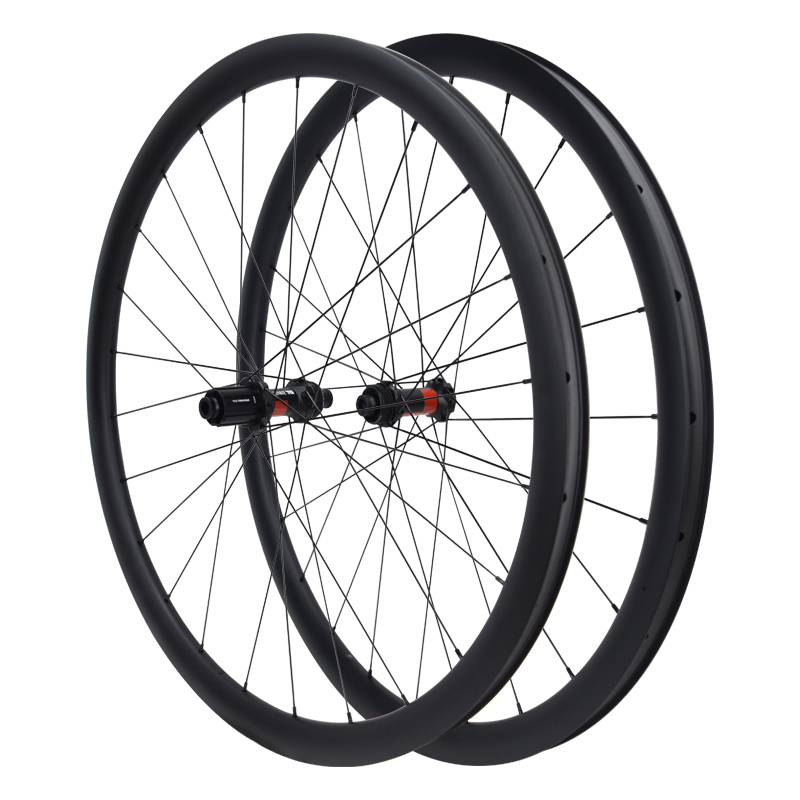

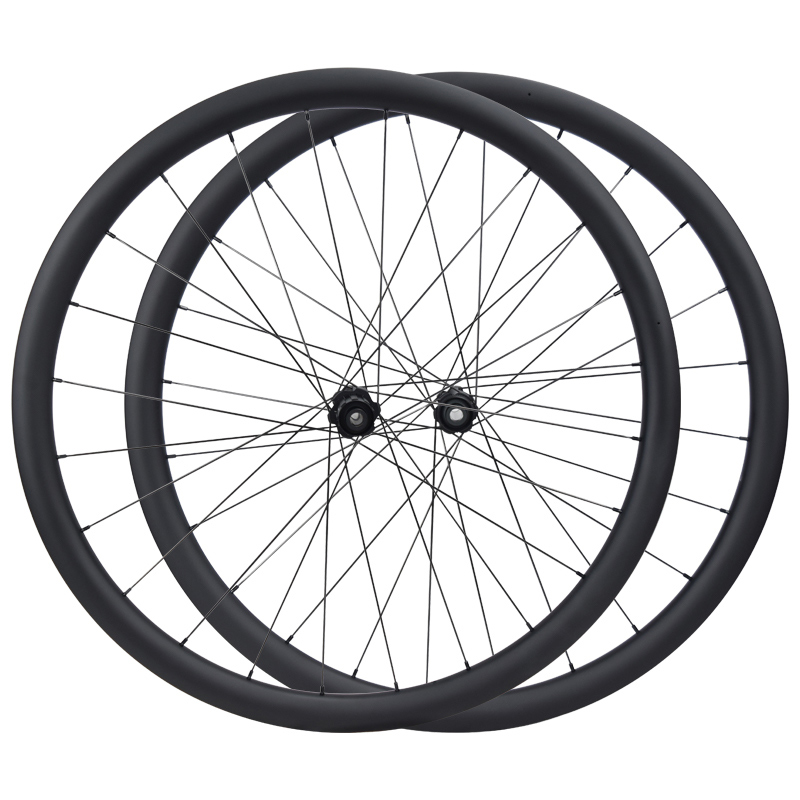

Road bike DT240 hub disc brake carbon wheelset

Sakya Carbon DT350 hub road bike disc brake carbon wheelset

The DT 240 road wheelset isn’t just a component—it’s the core of your competitive edge. Crafted with Swiss precision, every element is engineered to deliver instant power transfer, silky-smooth rotation, and uncompromising durability, mile after mile.

• Ultra-Aero & Featherlight: Optimized rim profile cuts through wind with minimal drag, while advanced carbon construction keeps weight in check for faster acceleration and easier climbs.
• Legendary Stiffness: Proprietary hub design and reinforced carbon rims maximize lateral stiffness, ensuring precise handling and efficient power transfer, even during sprints and tight corners.
• Tubeless-Ready: Run lower pressures for better traction, reduced rolling resistance, and fewer flats—conquer any road with confidence.

Whether you’re chasing a PR on the flats, attacking a steep climb, or navigating technical descents, the DT 240 wheelset turns every pedal stroke into pure speed. Ride faster, ride farther, ride with the precision of Swiss engineering. DT 240—engineered for those who live to ride fast.

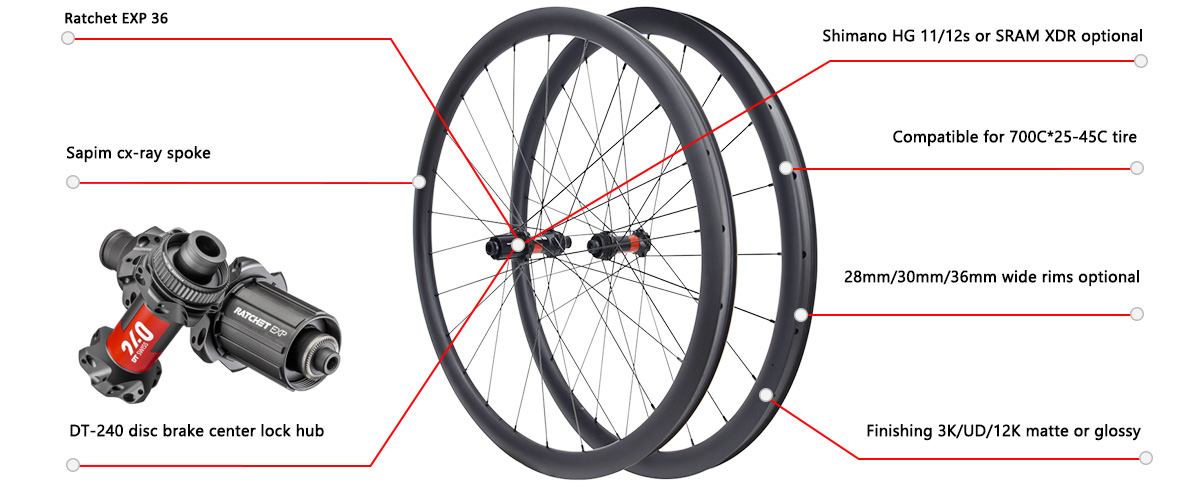

• 28mm, 30mm,36mm external wide carbon rim, Compatible with 700*25C-45C tires
• 3K/UD/marble weave, matte or glossy finishing (Customized Decal acceptable)
• Spoke hole count: front 24-hole, rear 24-hole
• Rim type: Tubeless/Clincher/Tubular
• Sapim cx-ray spokes, Super rigidity and durability
• Spoke breaking: 420-450kgf
• Drive side tension: 135kgf
• Max rider weight: 120kgf
• If you require a lighter and better configuration for rim or spoke, please contact us for an upgrade

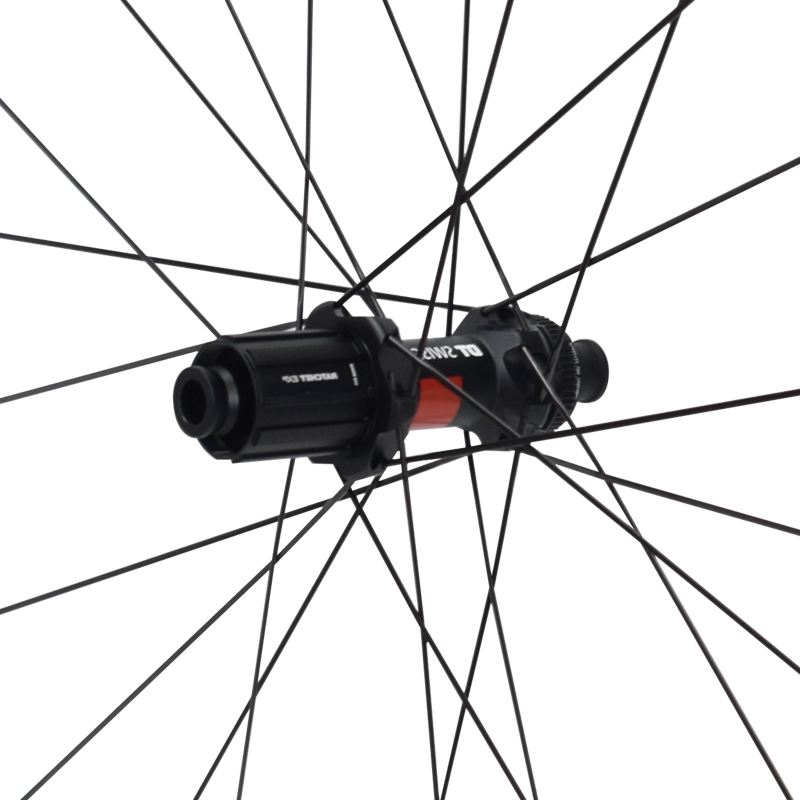

DT-240 ratchet

The DT 240 road hub isn’t just a component—it’s the core of your ride. Built with Swiss precision, its lightweight design and legendary durability deliver instant power transfer and silky-smooth rotation, mile after mile. Whether you’re chasing a PR on the flats or attacking a steep climb, the DT 240 hub ensures your wheels respond with every ounce of your effort.

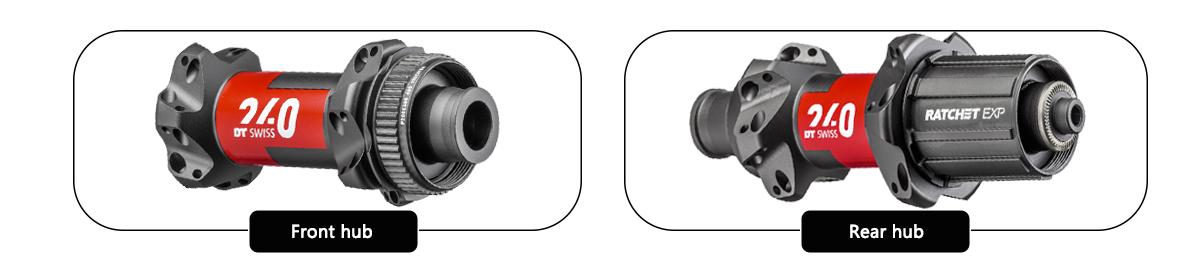

• DT swiss240 Road disc(front 12*100mm TA/rear 12*142mm TA)

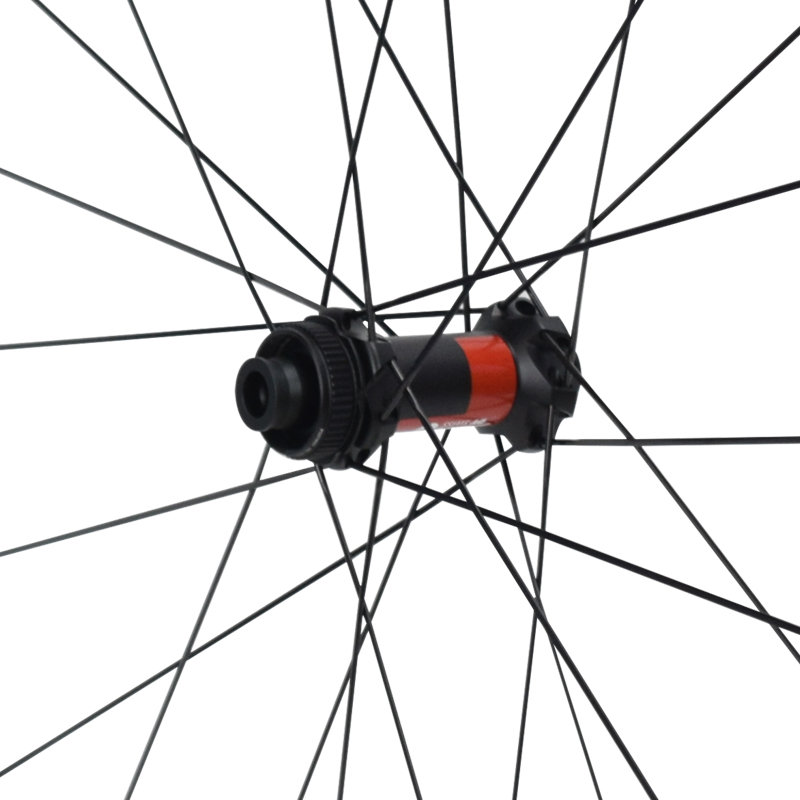

• Disc brake type: center lock
• Cassette Body: Shimano HG 11/12s or SRAM XDR optional
• Freehub System: Ratchet System 36T
• Spoke Hole Count: front 24H/rear 24H

Sapim cx-ray spoke

◊Road disc brake carbon wheel build with 28mm outer wide rim (21mm inner wide):

700C road disc brake carbon rim 28mm width specs:

◊Road disc brake carbon wheel build with 30mm outer wide rim (24mm inner wide):

700C disc brake carbon road rims 30mm width specs:

Rim	SA30CT-30	SA35CT-30	SA40CT-30	SA45CT-30	SA50CT-30	SA60CT-30
Rim Weight	410g±15g	425g±15g	445g±15g	460g±15g	470g±15g	515g±15g
ERD	580mm	570mm	560mm	550mm	540mm	530mm
Surface Texture	3K/UD/marble/UD paintless	3K/UD/marble/UD paintless	3K/UD/marble/UD paintless	3K/UD/marble/UD paintless	3K/UD/marble/UD paintless	3K/UD/marble/UD paintless
Sectional Drawing

◊Road disc brake carbon wheel build with 36mm outer wide rim (30mm inner wide):

700C disc-brake carbon road rims 36mm width specs:
