27.5er tubeless clincher compatible fat bike carbon rims

Sakya Carbon 27.5er tubeless clincher compatible fat Bike Carbon Rims

Sakya Carbon 27.5er fat rim features an upgraded double-layer structure, offering a significant improvement in strength and rigidity compared to a single-layer snow tire. It easily handles the bumps and impacts of icy and snowy roads, providing a solid first line of defense for riding safety. This carbon fiber fat rim, specifically designed for snow riding, boasts a standard 28mm rim depth and an 80mm width design, perfectly accommodating 3.8-inch to 5.0-inch full-size snow fat tires. The widened rim not only securely locks in the fat tire but also creates a larger contact area – effectively distributing pressure even on soft snow or ice, preventing sinking and slipping, giving you stable control and confidence to confidently face icy and snowy challenges. Enjoy the unique charm of winter riding; every turn showcases professional quality and robust performance!

Features:

• 27.5er size fat carbon rim 80mm width and 28mm depth
• Double-wall construction for excellent strength.
• Tubeless tire compatibility for worry-free riding.
• Diverse appearances: 3K/UD/12K/marble pattern, matte/glossy finishes available, customized.
• 2 years warranty.

INTRODUCTION

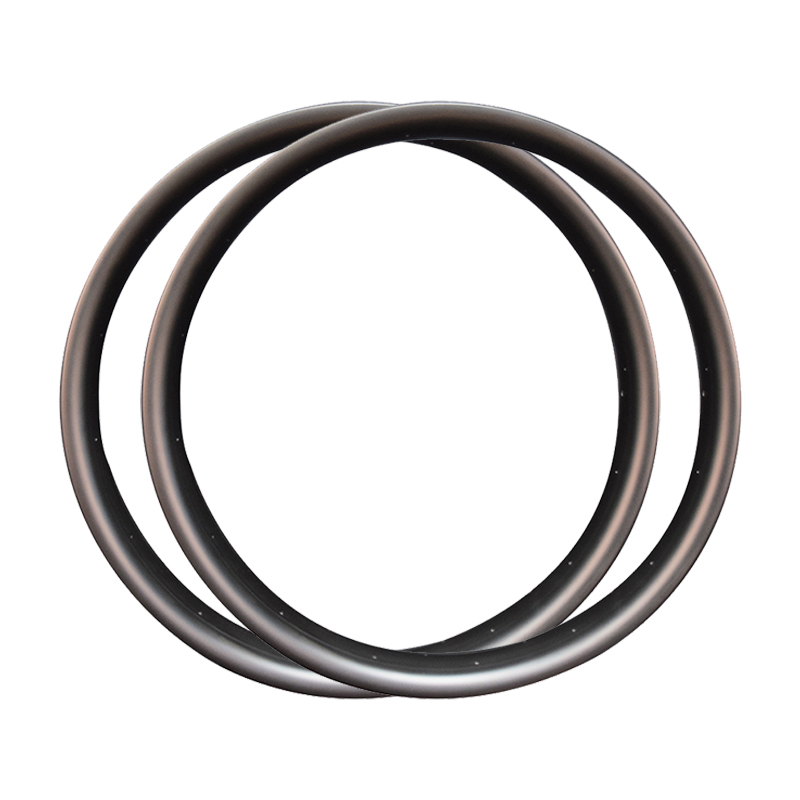

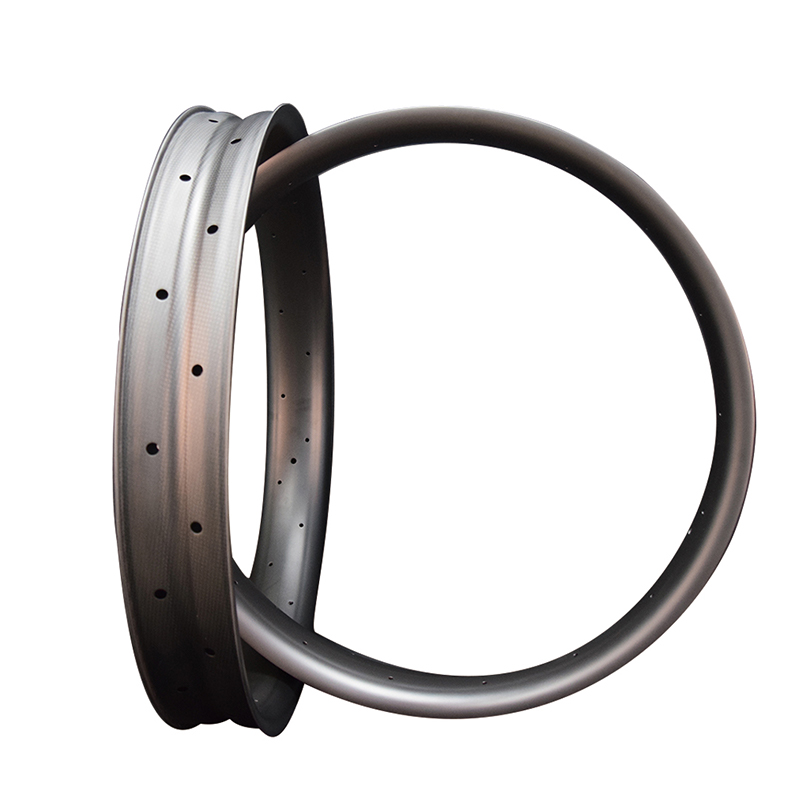

27.5er fat bike snow bike carbon rim 80mm wide 28mm deep:

Rim model	SA-F27.5-28-80
Material	T700
Rim weight	615±15g
Rim type	Tubeless
Max rider limited	120kg
Max tire pressure	1.7bar/25psi
Recommend tire	650b*3.8''-5.0''
ERD	545mm

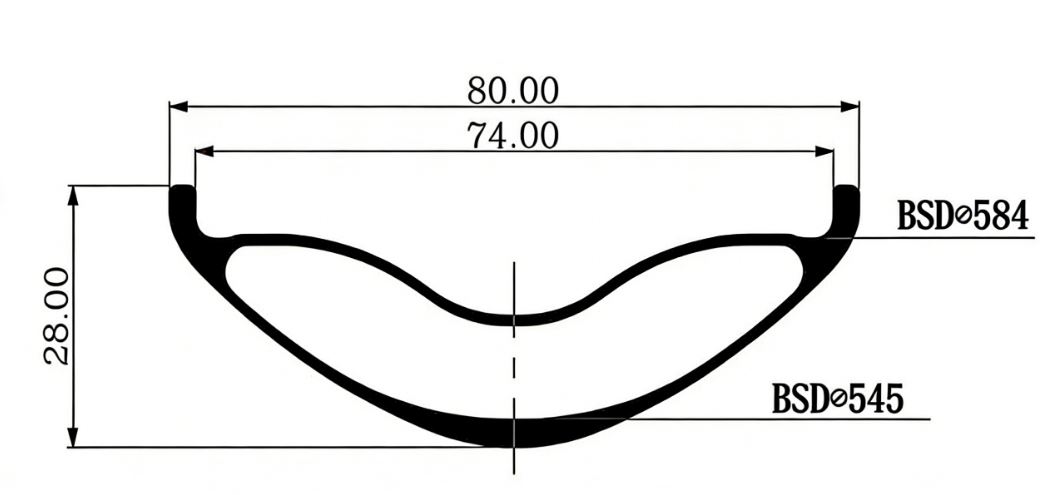

Sectional Drawing

---

Rim finishing
