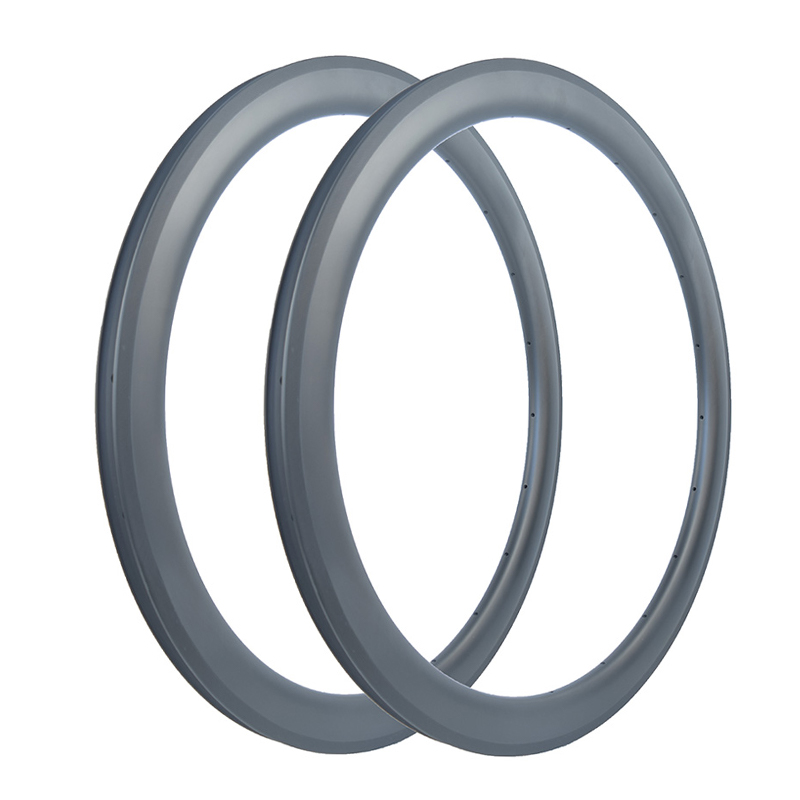

Disc brake carbon rims

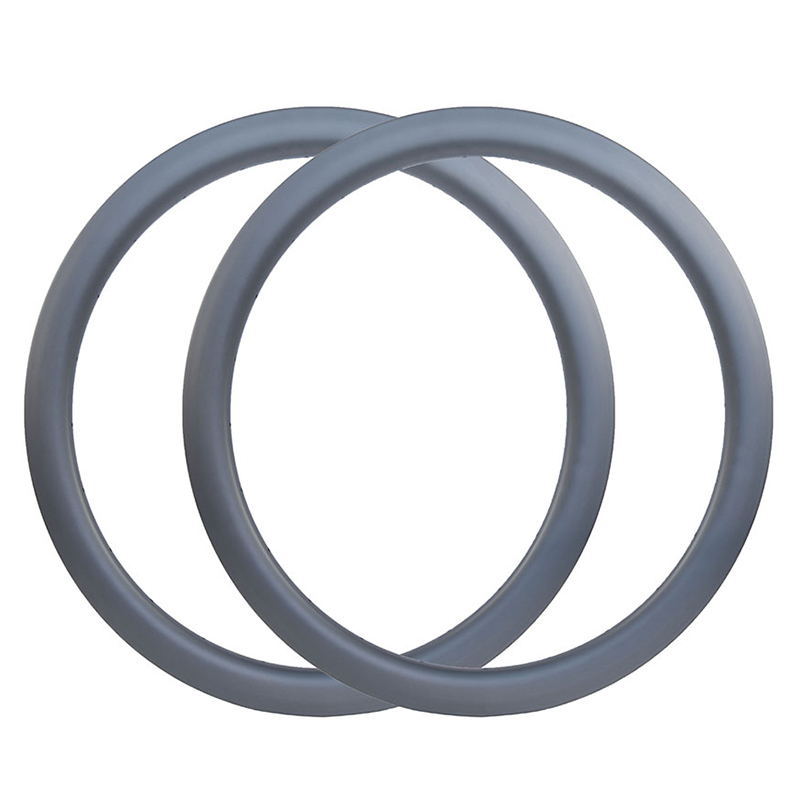

700C carbon rims
26mm 28mm width carbon rims
carbon road bike rims

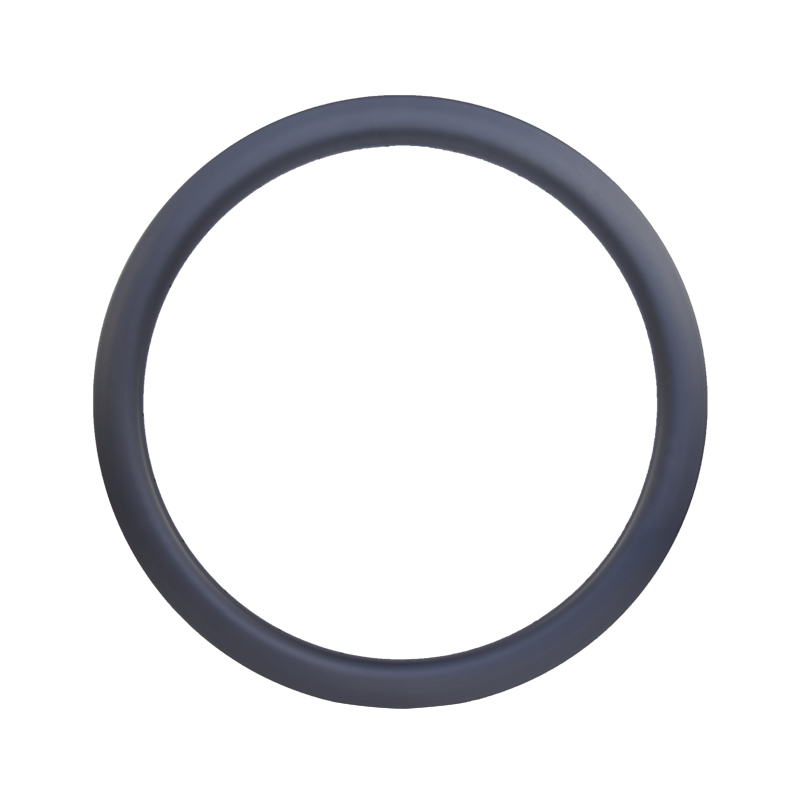

Gravel bike carbon rims
Road rim brake carbon rims

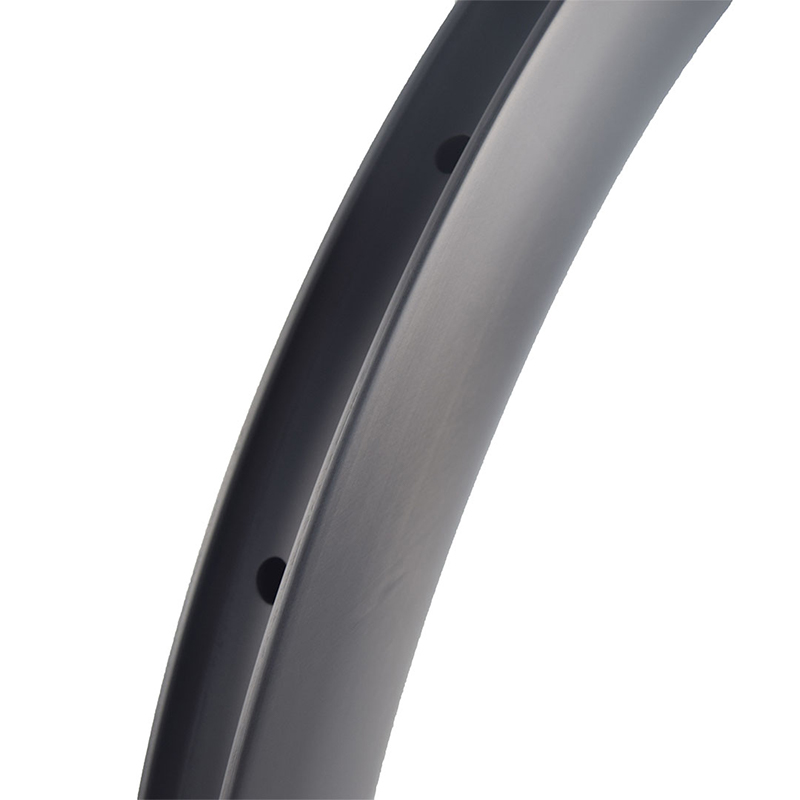

Road disc brake carbon rims

700C bicycle rim disc brake 26mm 28mm width

  • 26mm, 28mm width carbon fiber rim
  • Tubeless, clincher, tubular optional
  • Disc brake or rim brake carbon rims
  • Wide U shape design, better aerodynamics and stiffness.
  • Finishing: 3K/UD/12K/Marble matte or glossy
  • If you require a lighter and better configuration, please contact us for an upgrade
  • 2-year warranty
  • Item No :

    Road carbon rim 26/28mm width
  • Payment :

    Paypal, Bank Transfer
  • Product Origin :

    China
  • Color :

    3K/UD/12K/Marble matte or glossy
Inquiry Now

700C Road bicycle carbon rim 26mm 28mm width for disc brake rim brake



Toray T700 carbon bicycle rim, powered by dual carbon fiber, delivers effortless lightness and resilient strength – providing a "zero-burden" acceleration feel with every press of the pedal and rock-solid stability even on demanding roads.From tubeless to tubular tires, from 25C racing narrow tires to 45C comfort wide tires, the 700C is compatible with all sizes; disc brakes and rim brakes are both supported, and 26mm or 28mm width and multiple height options are available, ensuring one carbon road rim suits all your riding needs, whether for road racing, long-distance endurance riding, or urban commuting. With 3K/UD textures and matte/glossy finishes, it offers not only hardcore performance but also an eye-catching look on the road.

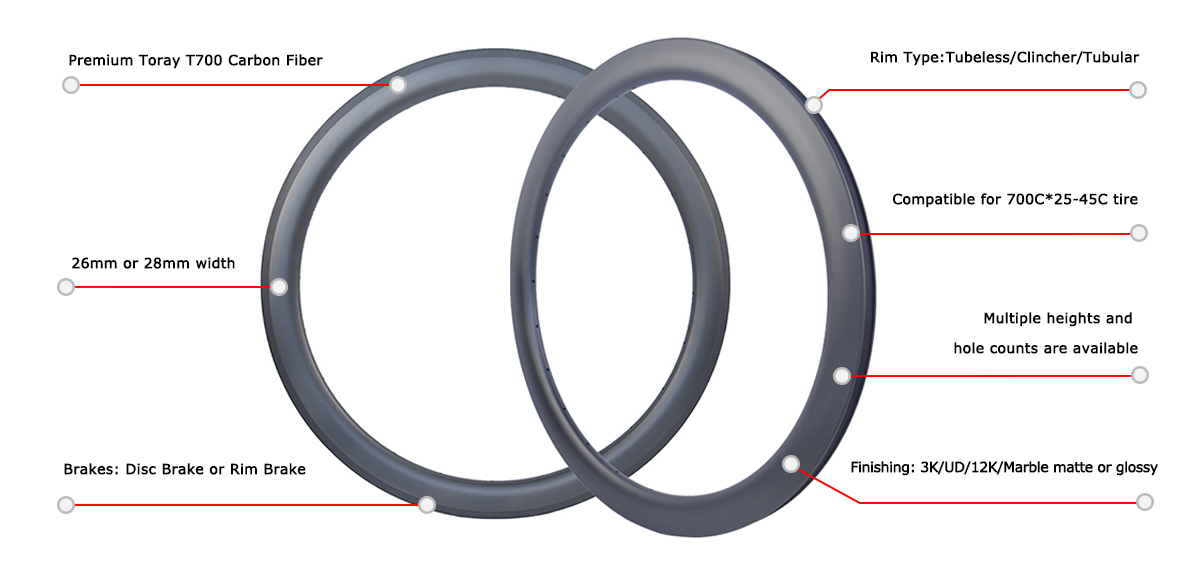

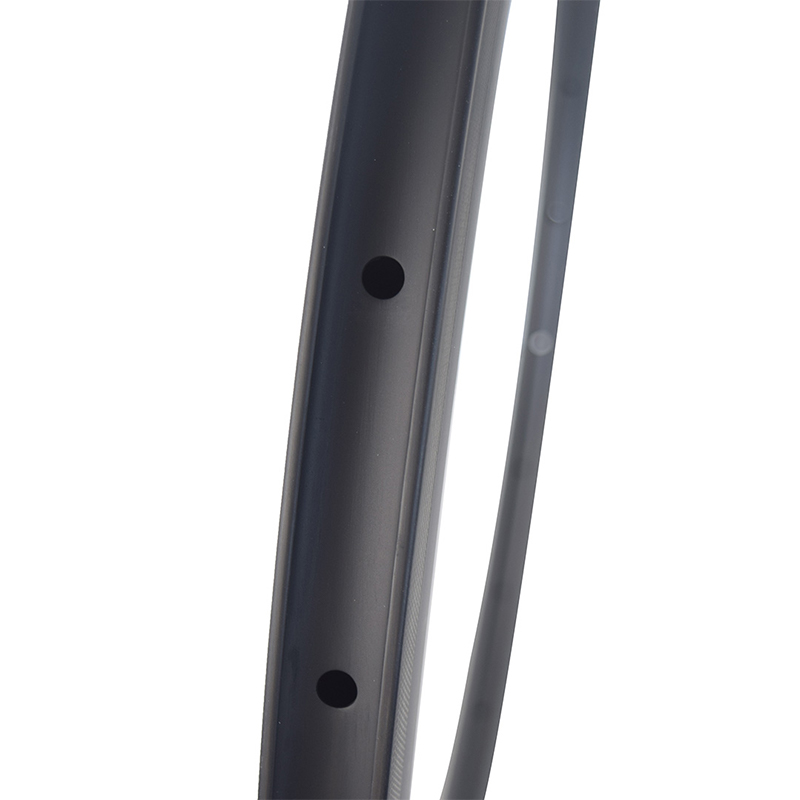

26mm 28mm width carbon rims

Features

  • 26mm and 28mm rim width optional, fits 700C×25-45C tires for versatile riding
  • Braking systems:disc brakes and rim brakes
  • Finishing: 3K/UD/12K/Marble matte or glossy(Customized Decal acceptable)
  • If you require other rim patterns or special rim holes, please contact me
  • If you require a lighter and better configuration, please contact us for an upgrade

INTRODUCTION

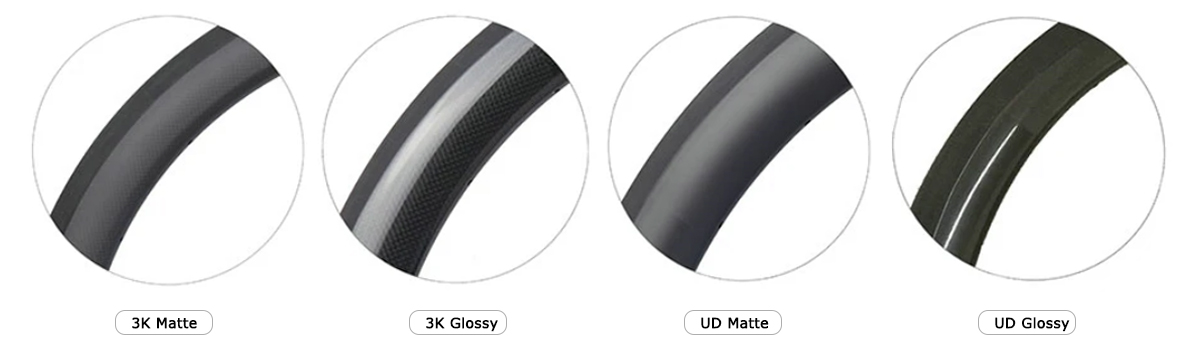

Rim finishing

3K/UD/12K/Marble matte or glossy

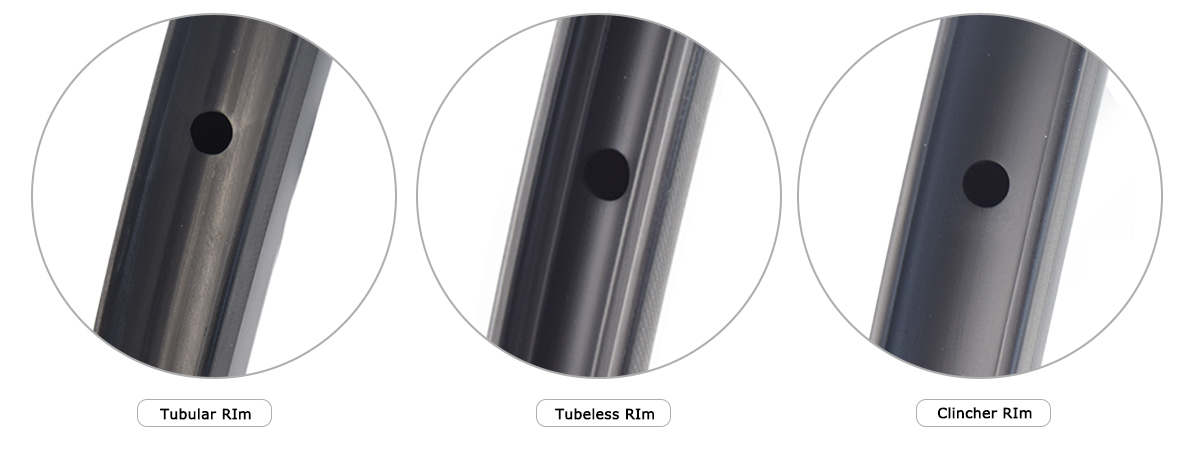

Rim type

Tubeless/Clincher/Tubular

SPECIFICATION

26mm external wide carbon rim (19mm inner wide



):

Rim SA30CT-26 SA38CT-26 SA45CT-26 SA50CT-26 SA60CT-26
Material T700 T700 T700 T700 T700
Rim weight 395g+/-15g 425g+/-15g 440g+/-15g 460g+/-15g 530g+/-15g
Rim type Tubeless/Clincher/Tubular Tubeless/Clincher/Tubular Tubeless/Clincher/Tubular Tubeless/Clincher/Tubular Tubeless/Clincher/Tubular
Brake type Disc Brake/Rim Brake Disc Brake/Rim Brake Disc Brake/Rim Brake Disc Brake/Rim Brake Disc Brake/Rim Brake
ERD 580mm 564mm 550mm 540mm 520mm

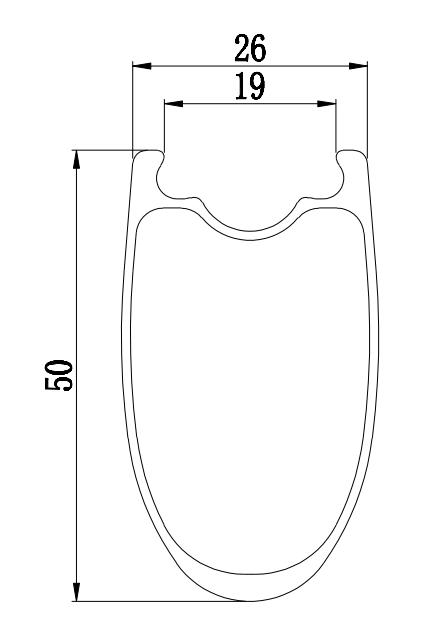

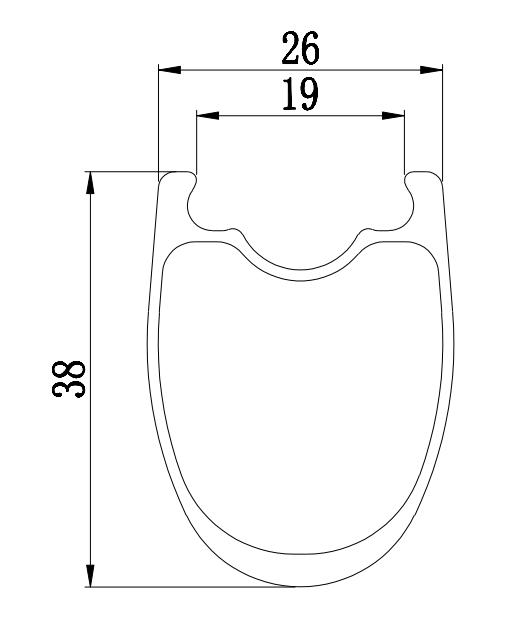

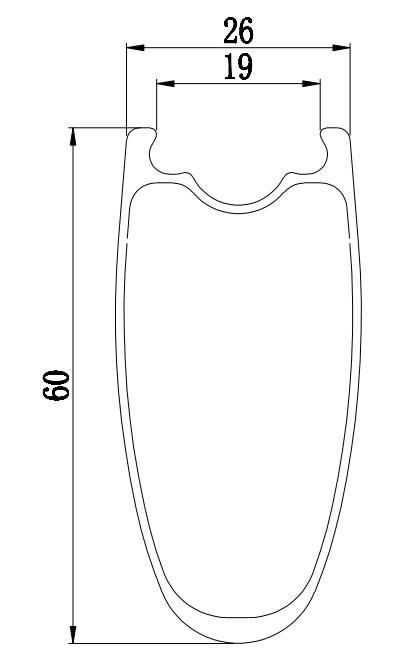

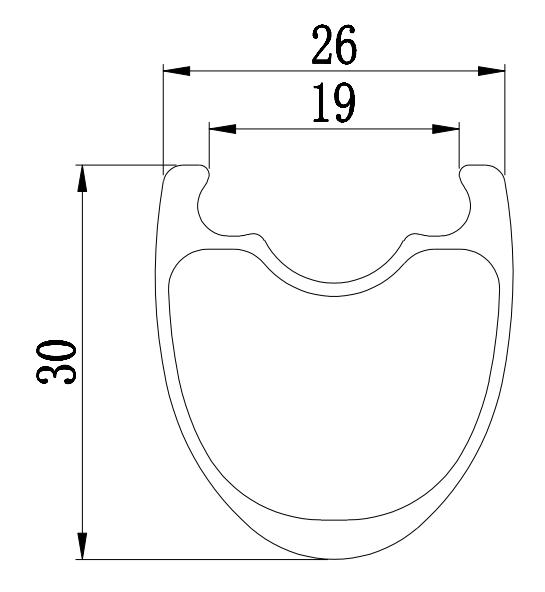

Sectional Drawing



28mm external wide carbon rim (21mm inner wide



):

Rim SA-30CT-28 SA35CT-28 SA-40CT-28 SA45CT-28
Material T700 T700 T700 T700
Rim weight 400g+/-15g 415g+/-15g 425g+/-15g 460g+/-15g
Rim type Tubeless/Clincher/Tubular Tubeless/Clincher/Tubular Tubeless/Clincher/Tubular Tubeless/Clincher/Tubular
Brake type Disc brake/Rim brake Disc brake/Rim brake Disc brake/Rim brake Disc brake/Rim brake
ERD 580mm 570mm 560mm 550mm

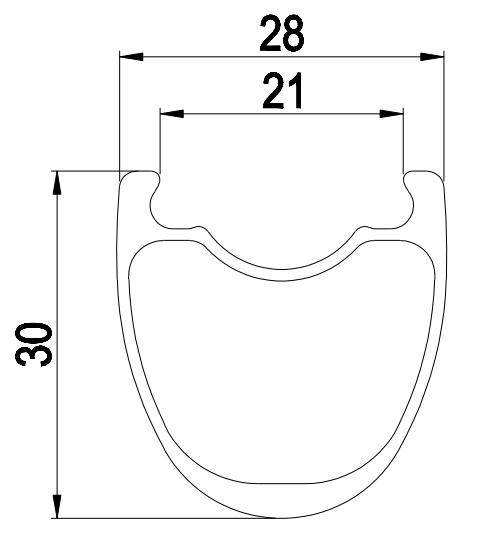

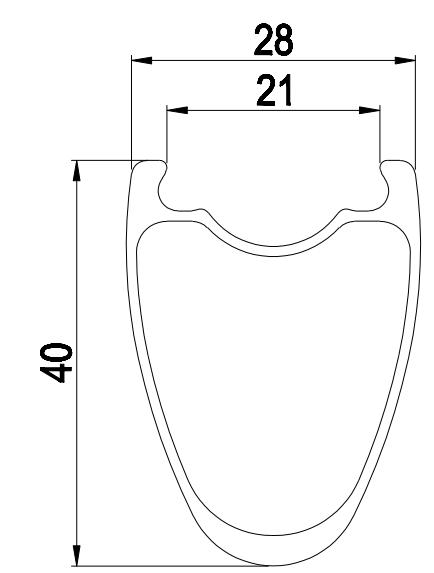

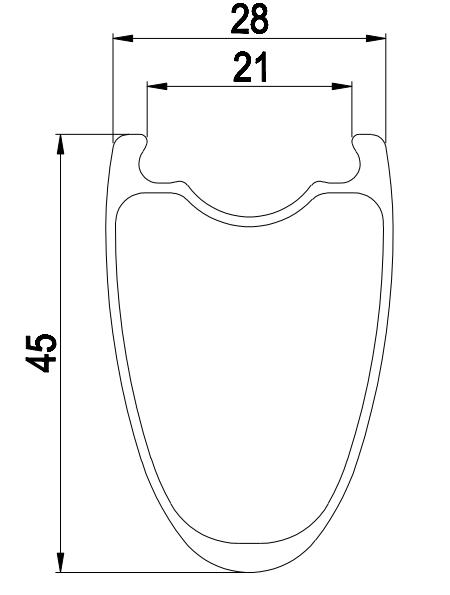

Sectional drawing



Rim SA-50CT-28 SA55CT-28 SA-60CT-28
Material T700 T700 T700
Rim type Tubeless/Clincher/Tubular Tubeless/Clincher/Tubular Tubeless/Clincher/Tubular
Brake Type Disc Brake/Rim brake Disc Brake/Rim brake Disc Brake/Rim brake
Rim weight 470g+-15g 515g+/-15g 535g+/-15g
ERD 540mm 530mm 520mm

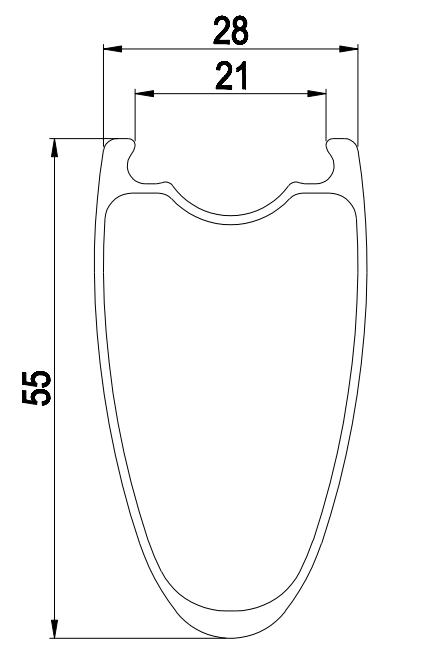

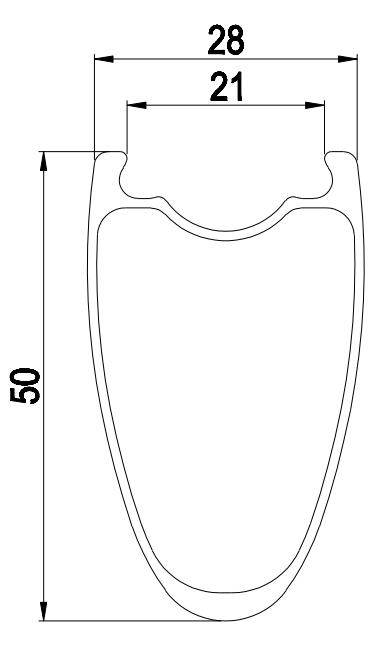

Sectional Drawing
