30mm 36mm width 700C bicycle rim disc brake rim brake

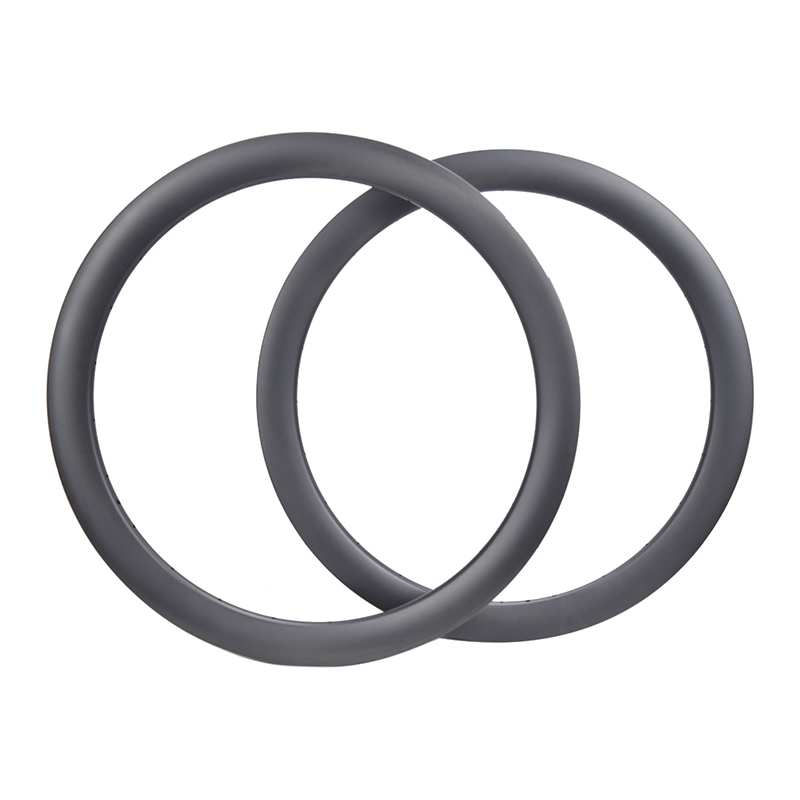

Road bike carbon rims
Road bike carbon rims

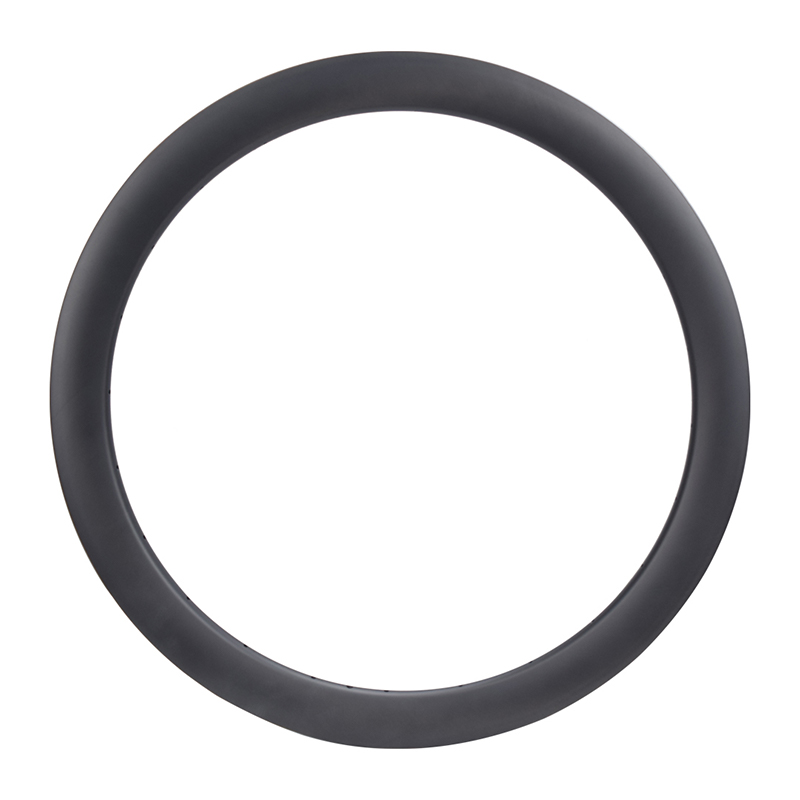

Disc brake carbon rims

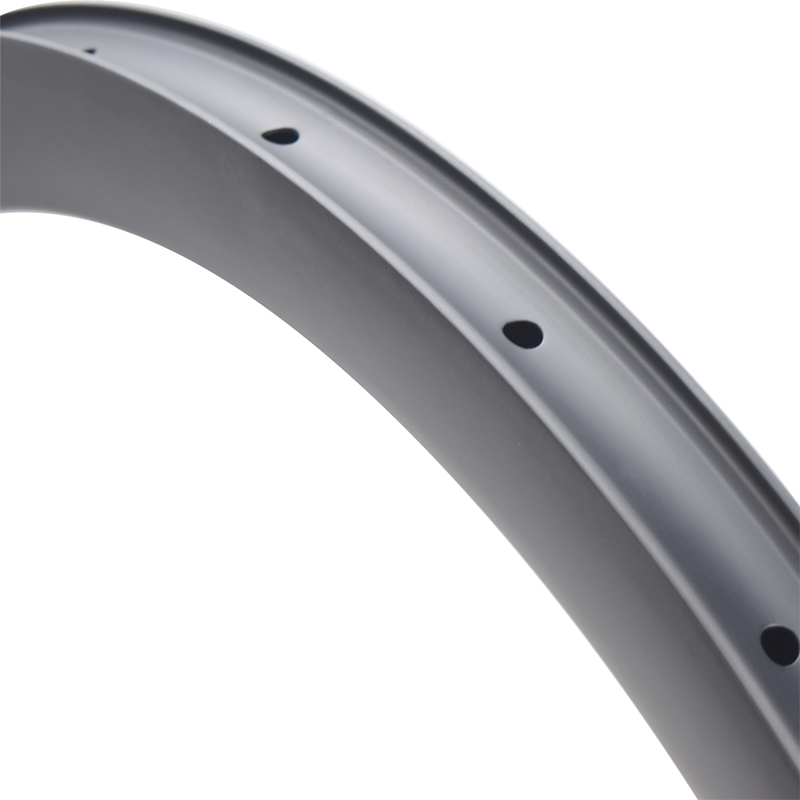

Tubeless disc brake gravel carbon rims

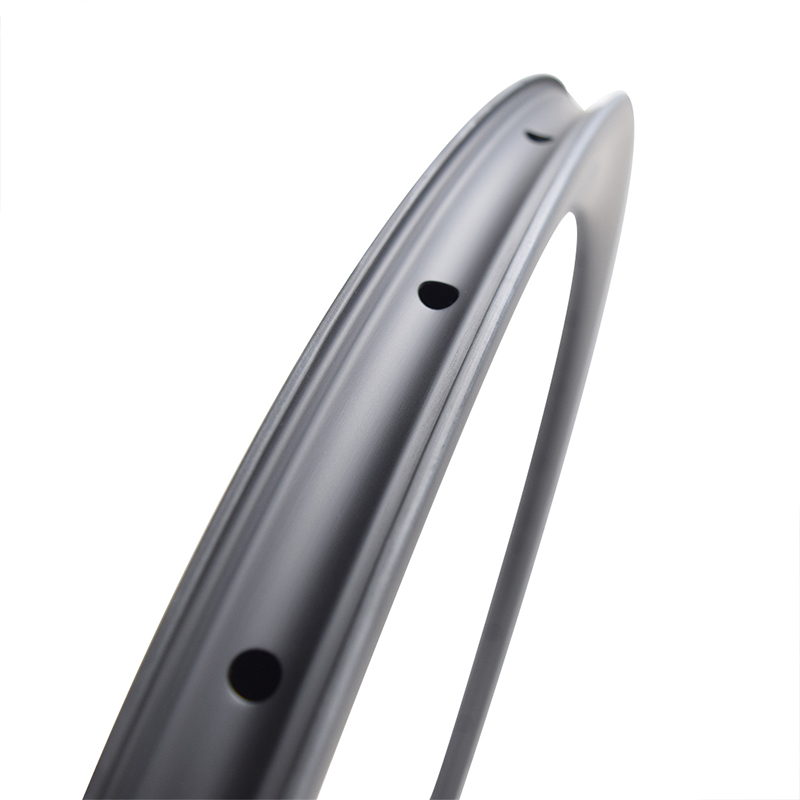

Road carbon rims 30mm 36mm width

30mm 36mm width 700C bicycle rim disc brake rim brake

  • Carbon fiber rims (30/36mm width)  Disc/rim brake compatible
  • Tubeless/clincher/tubular options available
  • Wide U-shape: Enhanced aerodynamics + superior stiffness
  • 3K/UD/12K/Marble finishes (matte/glossy optional)
  • Upgradable for lighter, premium configurations (contact us)
  • 2-year warranty included
  • Item No :

    Road carbon rim 30/36mm width
  • Payment :

    Paypal, Bank Transfer
  • Product Origin :

    China
  • Color :

    3K/UD/12K/Marble matte or glossy
Inquiry Now

Sakya Carbon 30mm or 36mm width 700C bicycle rim disc brake rim brake



Sayka Carbon road rim, utilizing a Toray T700 carbon fiber dual carbon fiber construction, perfectly balances lightweight weight and robust durability. Every pedal stroke delivers smooth, "zero-load" acceleration and maintains exceptional stability on the roughest terrain. This wheel is compatible with 700C size and can be fitted with tubeless, clincher, or tubular tires—from 25C racing slicks to 45C comfort wide tires. It supports both disc and rim brakes, offering 30mm or 36mm width options and a variety of height choices, making it ideal for cyclists. Beyond its top-tier performance, this wheel features customizable 3K or UD carbon fiber textures and is available in matte or glossy finishes—ensuring your bike conquers the road while effortlessly attracting attention.


Features:

  • Dual width options (30/36mm) + 700C×25-45C fully adaptable, suitable for all riding scenarios.
  • Dual compatibility with disc brakes and rim brakes, adapting to different braking needs.
  • 4 carbon finishes (3K/UD/12K/Marble) + matte/gloss finish + custom decals, customize your aesthetics.
  • Customization services: Special rim patterns/bolts can be discussed; lightweight high-end configurations can be upgraded.

Rim finishing

3K/UD/12K/Marble matte or glossy

SPECIFICATION





30mm external wide carbon rim (24mm inner wide



):

Rim SA30CT-30 SA35CT-30 SA40CT-30 SA45CT-30 SA50CT-30
Material T700 T700 T700 T700 T700
Rim weight 410g+/-15g 425g+/-15g 445g+/-15g 460g+/-15g 480g+/-15g
Max Spoke Tension 130kgf 130kgf 130kgf 130kgf 130kgf
Brake type Disc Brake/Rim Brake Disc Brake/Rim Brake Disc Brake/Rim Brake Disc Brake/Rim Brake Disc Brake/Rim Brake
ERD 580mm 570mm 560mm 550mm 540mm

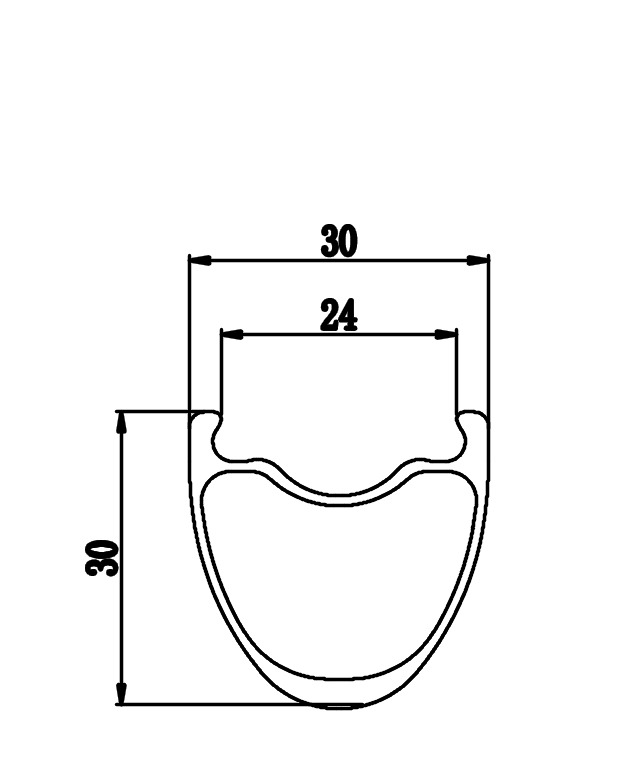

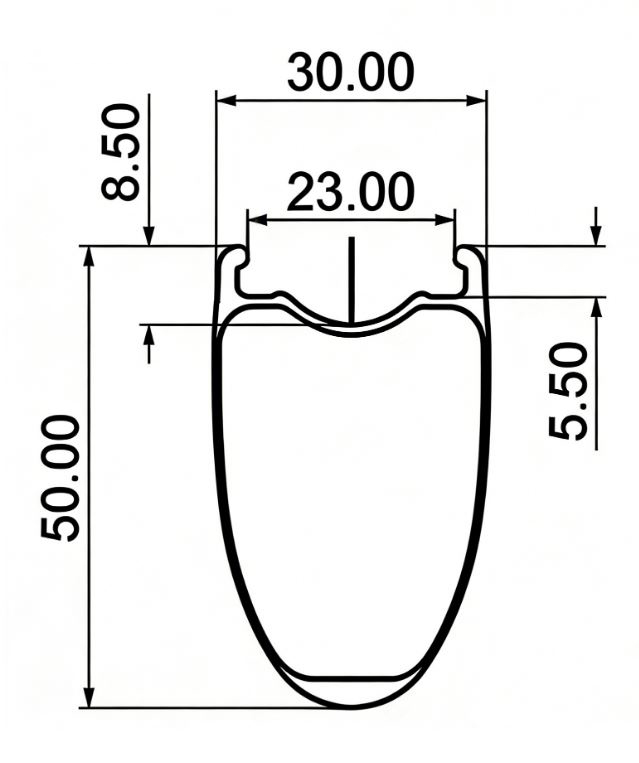

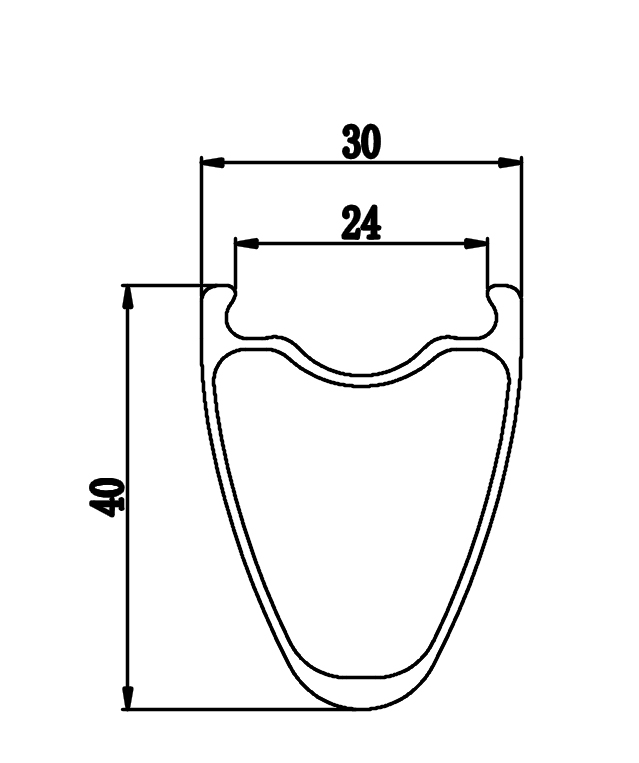

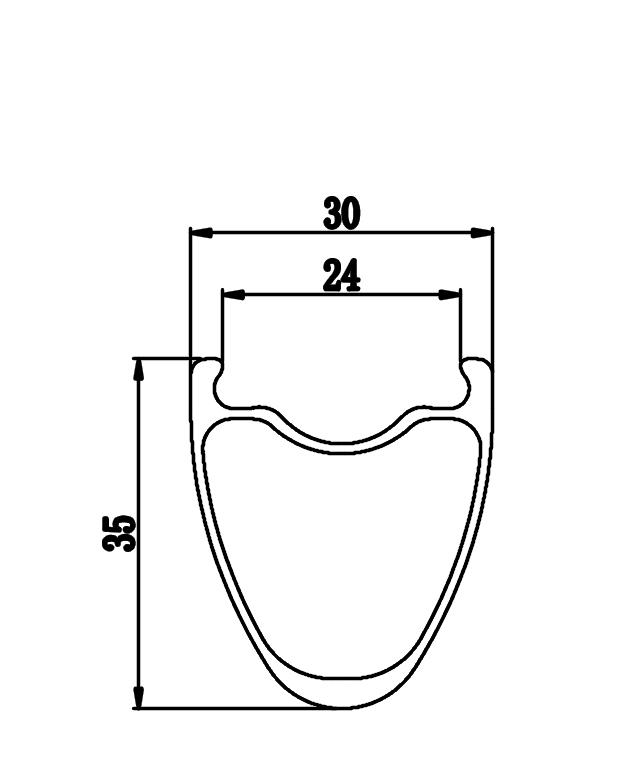

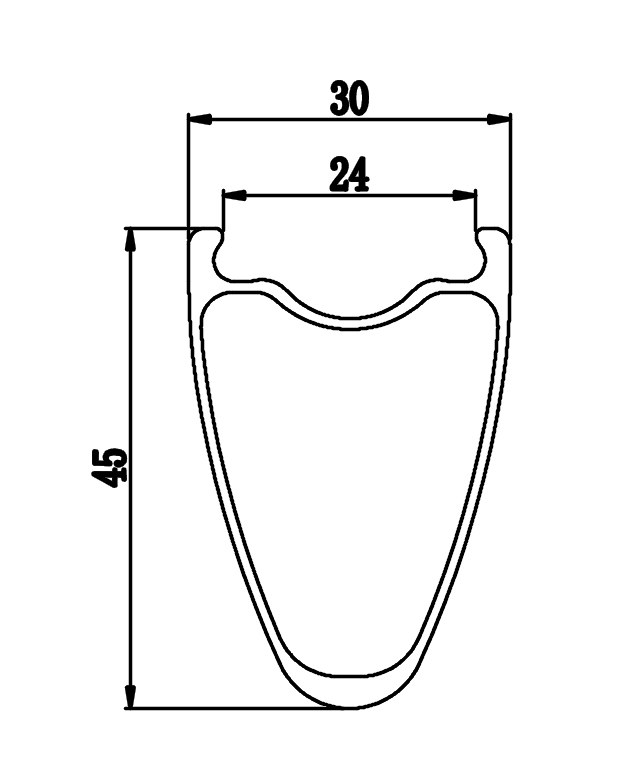

Sectional Drawing











36mm external wide carbon rim (30mm inner wide



):

Rim SA30CT-36 SA35CT-36 SA40CT-36 SA45CT-36 SA50CT-36
Material T700 T700 T700 T700 T700
Max Spoke Tension 130kgf 130kgf 130kgf 130kgf 130kgf
Brake Type Disc Brake/Rim brake Disc Brake/Rim brake Disc Brake/Rim brake Disc Brake/Rim brake Disc Brake/Rim brake
Rim weight 420g±15g 435g±15g 440g±15g 450g±15g 490g±15g
ERD 580mm 570mm 560mm 550mm 540mm

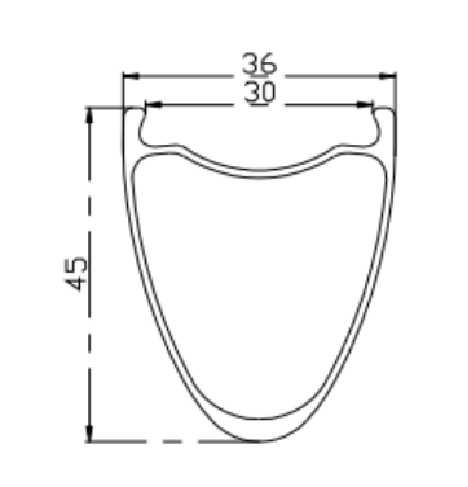

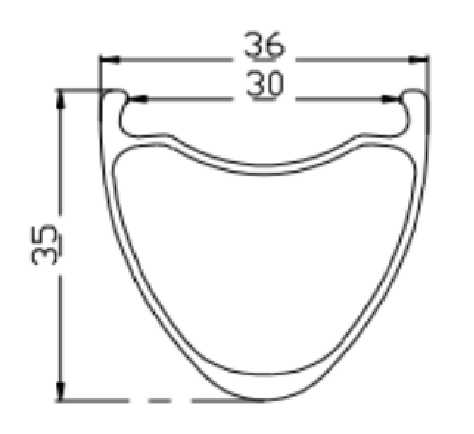

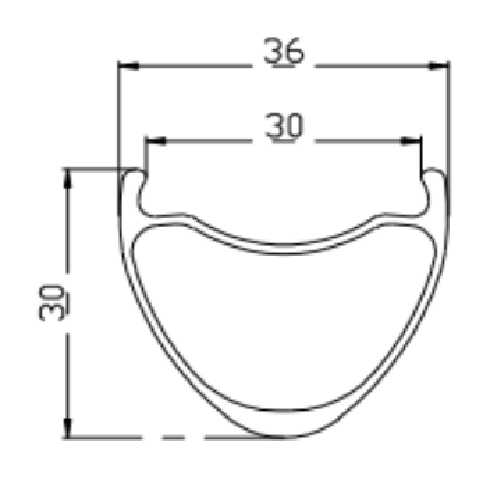

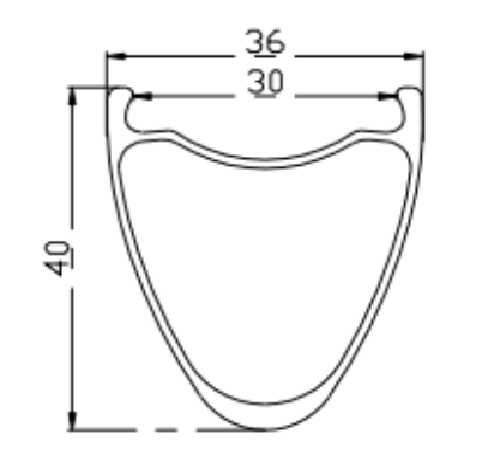

Sectional Drawing
