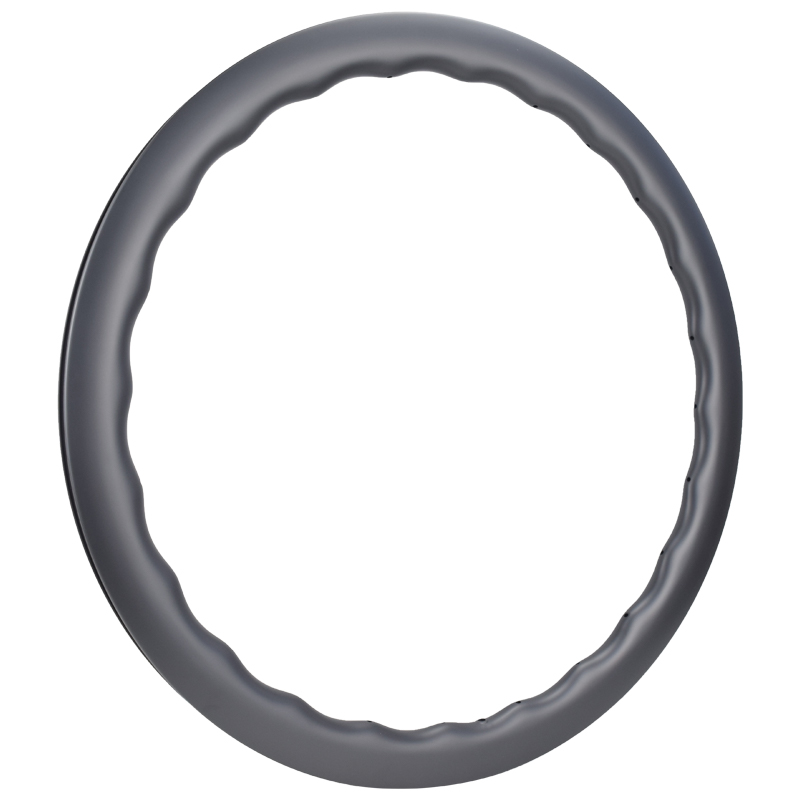

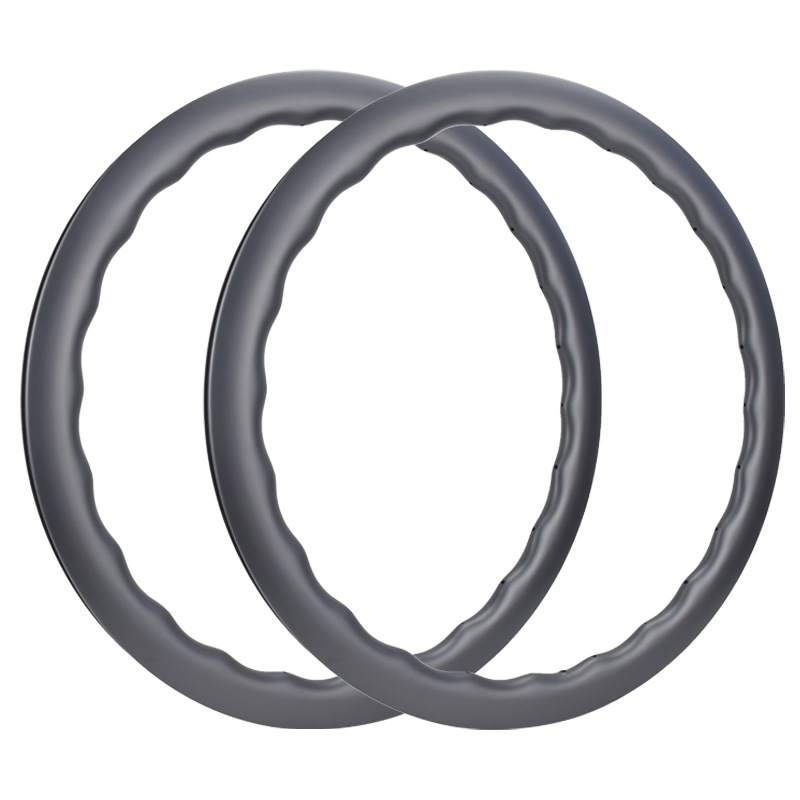

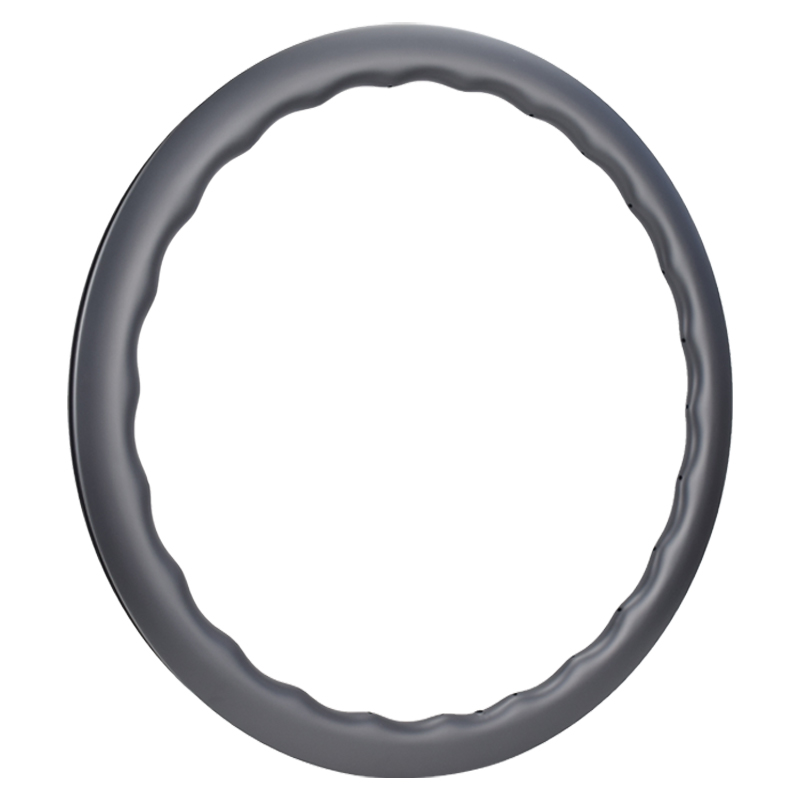

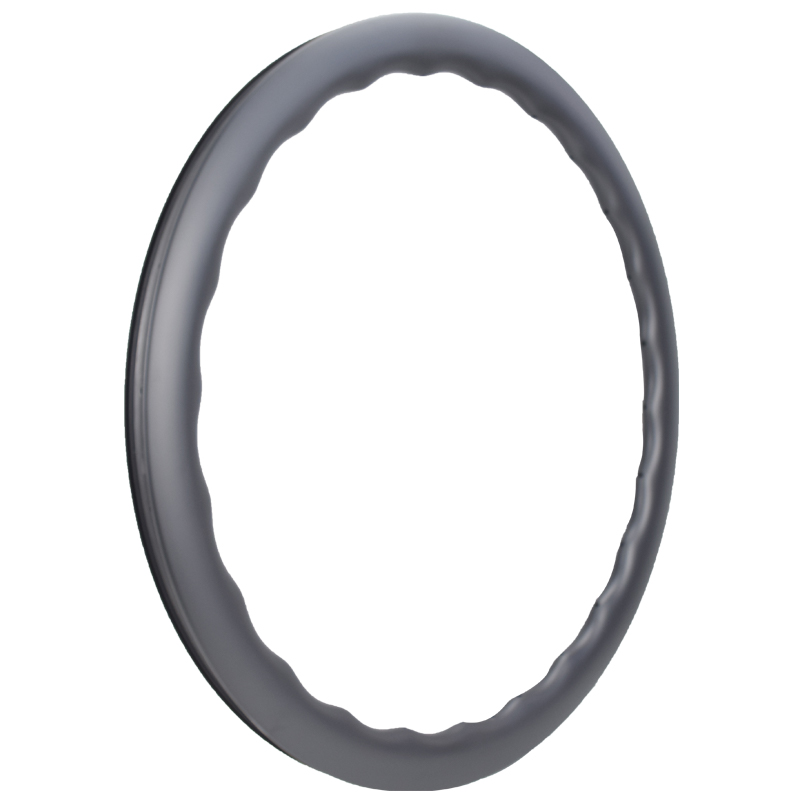

700C wave bicycle rims 28mm width customized painting

700C carbon wave bicycle rims 28mm width customized painting

Upgrade your cycling setup with these high-performance 700C bicycle rims—crafted from top-grade Toray T700 carbon fiber to strike the perfect balance of lightweight agility and rugged durability. Designed for road, endurance, or gravel riding, they offer versatile options to match your riding style.

Model	SA4050-28(Tubeless)	SA4550-28(Tubeless)	SA5560-28(Tubeless)	SA6065-28(Tubeless)
Holes	24H	21H or 24H	24H	24H
Width	28mm	28mm	28mm	28mm
Depth	40-45	45-50	55-60	60-65
Size	700c	700c	700c	700c
Weight	435g±15g	440g±15g	515g±15g	530g±15g

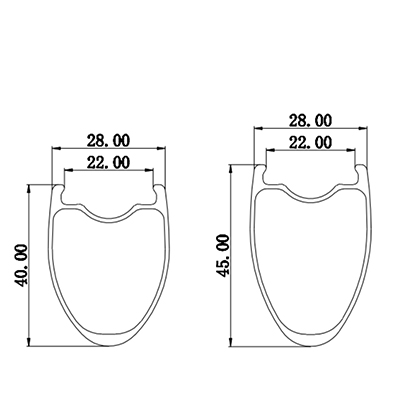

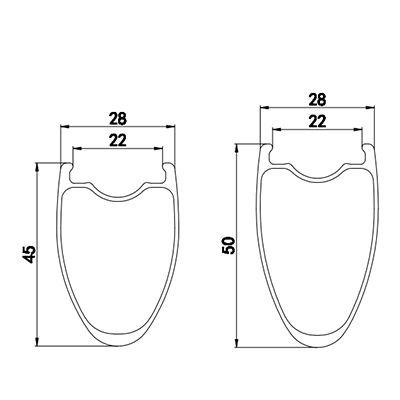

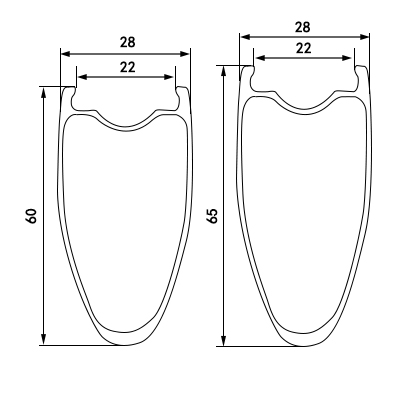

Sectional Drawing

Feture⇓

• Rim depth: 40-45mm, 45-50mm, 55-60mm, 60-65mm
• Rim width: 28mm width, tubeless-ready
• Spoke holes: 24 holes，45-50mm has 21 holes and 24 holes option
• Finishing: UD/Marble matte or glossy/ paintless（Customized painting acceptable）
• Max Tire Pressure: 120psi
• Max Recommended Load: 120kg

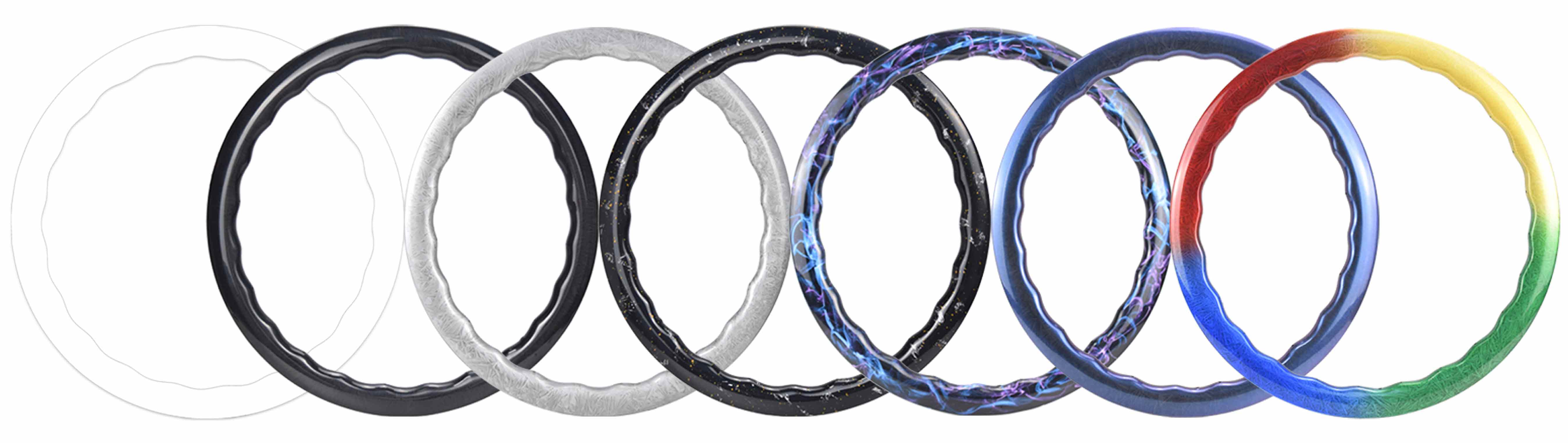

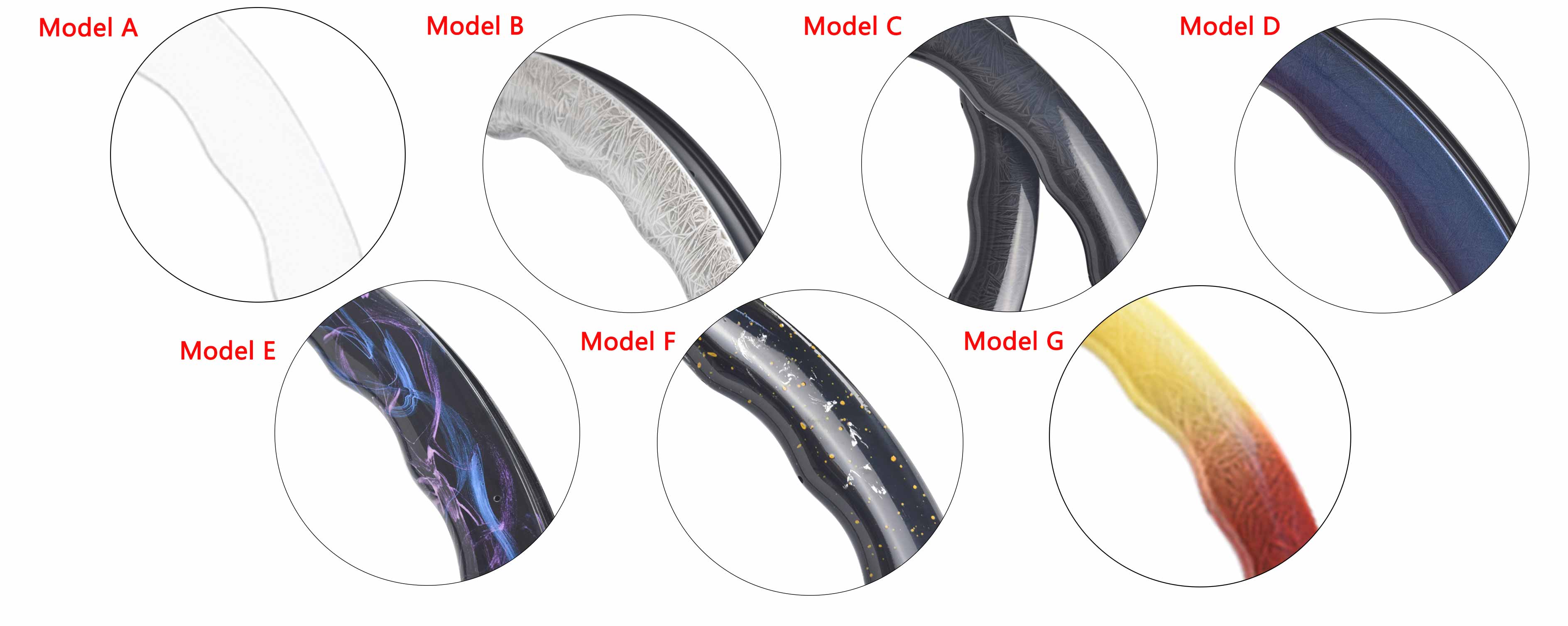

♦If you'd like the rims with the colorful painting, Sakya Carbon has options are as below. ⇓
